892004 - Gravely 50" Deck Grass Bagger for PM100Z (SN: 000101 & Above) Bags & Cover Parts Diagram

50" Deck Grass Bagger for PM100Z

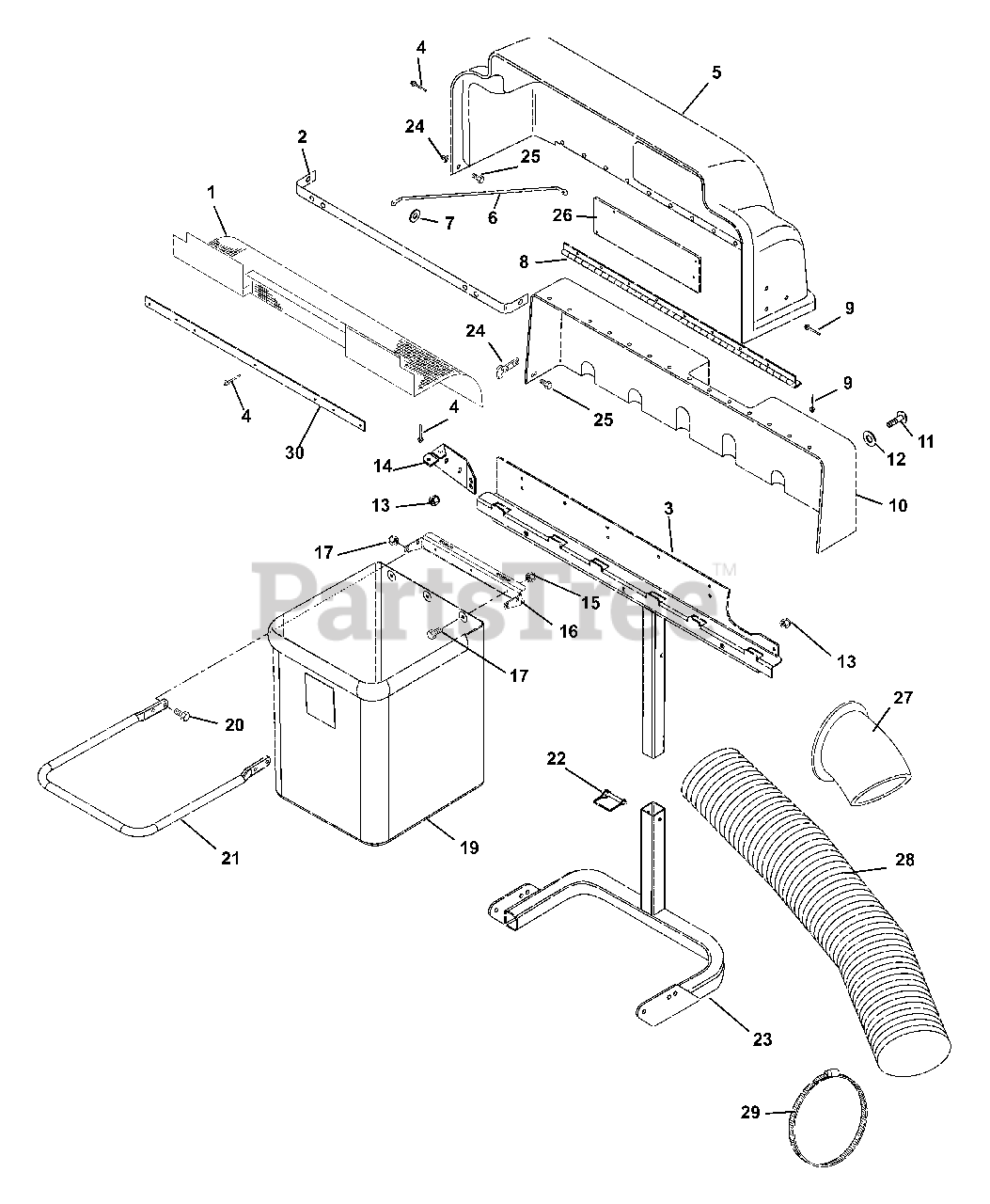

Bags & Cover Parts Diagram

  • Title

1

Gravely 09218800

Screen

$

$

Not available

2

Gravely 09224351

Screen Mounting Bracket

$

$

Not available

3

Gravely 03685751

Weldment-Bagger Frame

$

$

Not available

4

Gravely 06803800

Rivet-Pop .187 x .527

$1.49

$

In Stock, Qty 20+

0

4

Gravely 041098

(Gravely Part Number)
(Superseded to 06803800)

Note: (Gravely Part Number)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 59203500

Hinged Cover with Decal

$

$

Not available

6

Gravely 03552900

Brace

$

$

Not available

6

Gravely 041097

(Gravely Part Number)
(Superseded to 03552900)

Note: (Gravely Part Number)

$

$

Not available

7

Gravely 06444400

Washer-Flat-Steel .194 x .492 x .047

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 03325200

Hinge

$

$

Not available

9

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 11

0

10

Gravely 03569100

Stationary Cover

$

$

Not available

10

Gravely 045465

(Gravely Part Number)
(Superseded to 03569100)

Note: (Gravely Part Number)

$

$

Not available

11

Gravely 05947000

Bolt-Hex .31-18 x 1.00 Grade 2
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

12

Gravely 06435700

Washer-Flat-Steel .344 x .063
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

13

Gravely 06529800

Nut- Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 02725200

Brace

$

$

Not available

14

Gravely 041092

(Gravely Part Number)
(Superseded to 02725200)

Note: (Gravely Part Number)

$

$

Not available

15

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09283751

Weldment, Hanger Frame

$115.99

$

Usually ships in 4-12 days

0

17

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

18

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 03686300

Bag-Mesh Assist Bagger

$91.99

$

Usually ships in 4-12 days

0

20

Gravely 06220800

Bolt-Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

21

Gravely 03691300

Frame-Bag Support

$

$

Not available

22

Gravely 07065900

Pin-.38 x 2.50 Square Lock

$

$

Not available

23

Gravely 09227551

Weldment-Bumper Pivot

$

$

Not available

24

Gravely 09079500

Latch, Rubber

$34.99

$

Usually ships in 4-12 days

0

25

Gravely 06116700

Screw-Machine 10-24X.50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 02731200

Baffle

$

$

Not available

27

Gravely 03599600

Bagger Boot- Upper

$

$

Not available

27

Gravely 050373

(Gravely Part Number)
(Superseded to 03599600)

Note: (Gravely Part Number)

$

$

Not available

28

Gravely 01585800

Hose 7 x 45
(Superseded to 04222900)

$113.99

$

Usually ships in 4-12 days

0

29

Gravely 03022400

Clamp-Hose Worm 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

29

Gravely 038532

(Gravely Part Number)
(Superseded to 03022400)

Note: (Gravely Part Number)

$17.99

$

Usually ships in 4-12 days

0

30

Gravely 00429751

Guard, Screen

$

$

Not available
