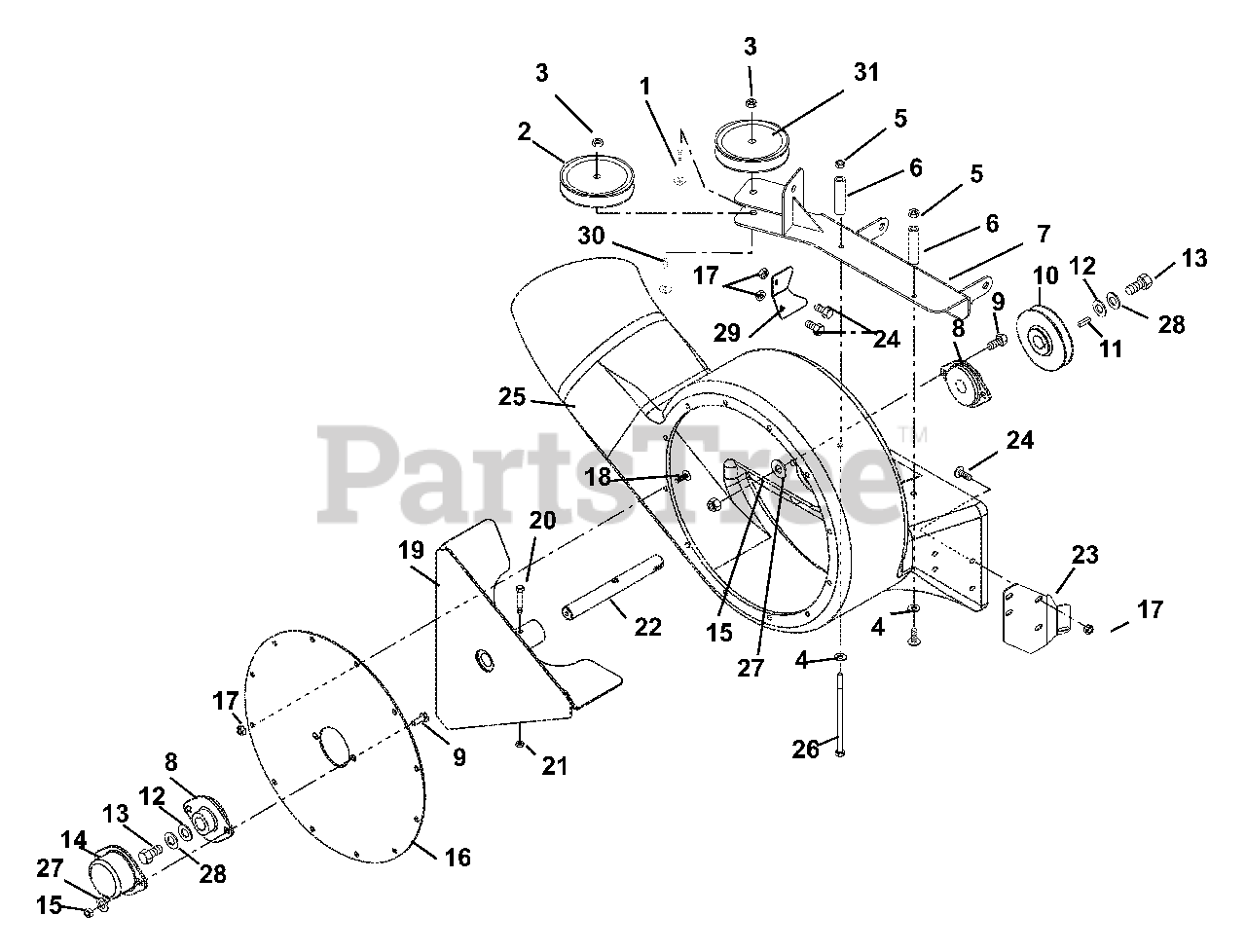

892004 - Gravely 50" Deck Grass Bagger for PM100Z (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

50" Deck Grass Bagger for PM100Z

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

3

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09261000

SPACER

$

$

Not available

7

Gravely 09287751

WMT - BRACKET - MOUNTING
(Superseded to 09287700)

$

$

Not available

8

Gravely 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$50.99

$

In Stock, only 4 left!

0

9

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 03685400

PULLEY, DRIVEN 3.50

$

$

Not available

11

Gravely 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 1 left!

0

Gravely 026273

KEY-SQ .187 X .50 X .187
(Superseded to 06606000)

Note: (Gravely Part Number)

$10.99

$

In Stock, only 1 left!

0

12

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 05952300

BLT-HEX .25-28X.75 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 03687400

COVER-BEARING

$42.99

$

Usually ships in 4-12 days

0

15

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

16

Gravely 03684900

PLATE-BEARING MOUNTING

$

$

Not available

17

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

18

Gravely 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 03685200

IMPELLER, GRASS PUMP

$

$

Not available

20

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

21

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03685100

SHAFT, GRASS PUMP - .75 OD

$70.99

$

Usually ships in 4-12 days

0

23

Gravely 09228300

BRACKET-MOUNTING,DECK TO PUMP

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 3 left!

0

25

Gravely 09261100

HOUSING - GRASS PUMP

$

$

Not available

26

Gravely 05978100

BLT-HEX .25-20X4.50 GR5 YWZC

$

$

Not available

27

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

29

Gravely 09260551

BRACKET-DECK STOP

$

$

Not available

30

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$40.99

$

In Stock, Qty 20+

0
