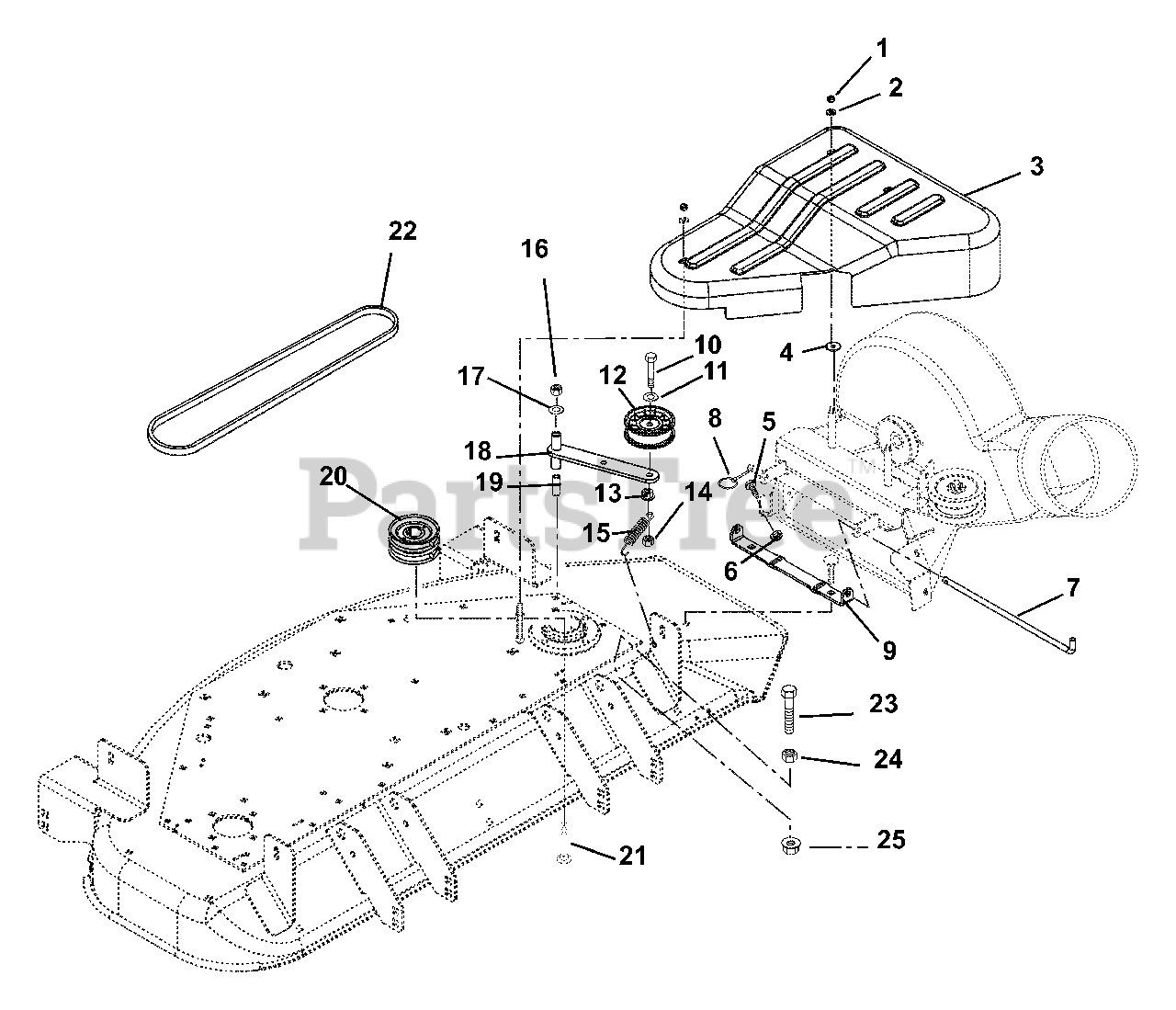

892004 - Gravely 50" Deck Grass Bagger for PM100Z (SN: 000101 & Above) Pulleys & Cover Parts Diagram

50" Deck Grass Bagger for PM100Z

Pulleys & Cover Parts Diagram

  • Title

1

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

2

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09227400

COVER-BELT GUARD

$

$

Not available

4

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

Gravely 416904

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

Note: (Gravely Part Number)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03691400

ROD-MOUNTING

$75.99

$

Usually ships in 4-12 days

0

8

Gravely 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$6.49

$

Usually ships in 4-12 days

0

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

Note: (Gravely Part Number)

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 09261251

BRACKET, CHUTE PIVOT

$

$

Not available

10

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$40.99

$

In Stock, Qty 20+

0

13

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 08332000

SG-TENS .069X.62X3.50 WLD20

$11.99

$

Usually ships in 4-12 days

0

Gravely 034400

SG-TENS .069X.62X3.50 WLD20
(Superseded to 08332000)

Note: (Gravely Part Number)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

17

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 09287800

BRACKET - TENSION ARM

$

$

Not available

19

Gravely 05534400

SPACER .344 X .613 X 1.780

$

$

Not available

20

Gravely 09229700

PULLEY-DOUBLE V, 3.50 X 1.004

$

$

Not available

21

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$3.49

$

In Stock, Qty 12

0

22

Gravely 07241900

V-BELT, 4L-WRAPPED

$

$

Not available

23

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
