892004 - Gravely 50" Deck Grass Bagger for PM100Z (SN: 000101 & Above) Pulleys & Cover Parts Diagram

50" Deck Grass Bagger for PM100Z

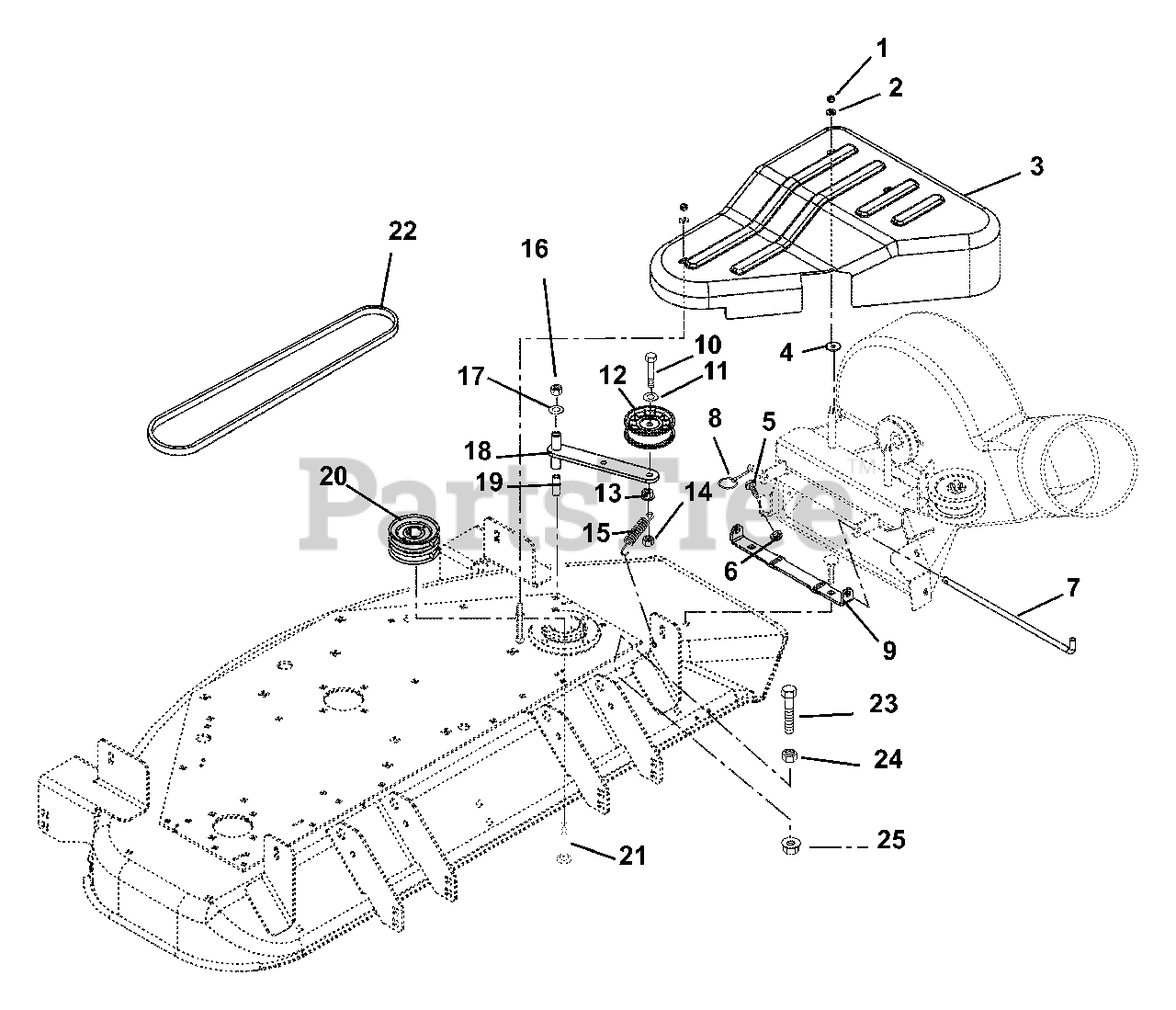

Pulleys & Cover Parts Diagram

  • Title

1

Gravely 06531000

Nut-Lock-Nylon .25-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

2

Gravely 06437300

Washer-Flat-Steel .281 x .62 x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

3

Gravely 09227400

Guard-Belt Bagger 50"

$

$

Not available

4

Gravely 06426600

Washer-Flat-Steel .281 x 1.00 x.063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

4

Gravely 416904

(Gravely Part Number)
(Superseded to 06401020)

Note: (Gravely Part Number)

$0.99

$

In Stock, only 2 left!

0

5

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

7

Gravely 03691400

Rod-Mounting

$75.99

$

Usually ships in 4-12 days

0

8

Gravely 07014500

Pin-Klik 1.00 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 023468

(Gravely Part Number)
(Superseded to 07014500)

Note: (Gravely Part Number)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 09261251

Bracket, Chute Pivot

$

$

Not available

10

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x.083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 07324100

Idler-Flat 3.50 x .38
(Superseded to 07300028)

$39.99

$

In Stock, Qty 9

0

13

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

14

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

15

Gravely 08332000

Spring-Tension .069 x .62 x 3.50

$11.99

$

In Stock, only 2 left!

0

15

Gravely 034400

(Gravely Part Number)
(Superseded to 08332000)

Note: (Gravely Part Number)

$11.99

$

In Stock, only 2 left!

0

16

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 06437500

Washer-Flat-Steel .328 x 1.00 x.094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

18

Gravely 09287800

Bracket-Tension Arm

$

$

Not available

19

Gravely 05534400

Spacer .344 x .613 x 1.780

$

$

Not available

20

Gravely 09229700

Pulley-Double V, 3.50 x 1.004

$

$

Not available

21

Gravely 06212300

Bolt-Round Head Square Neck.31-18 x 2.75

$2.99

$

In Stock, Qty 8

0

22

Gravely 07241900

V-Belt A-Section 28.50 x .531

$

$

Not available

23

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

24

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

25

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0
