892005 - Gravely 60" Deck Grass Bagger for PM260Z (SN: 000101 & Above) Counterweights Parts Diagram

60" Deck Grass Bagger for PM260Z

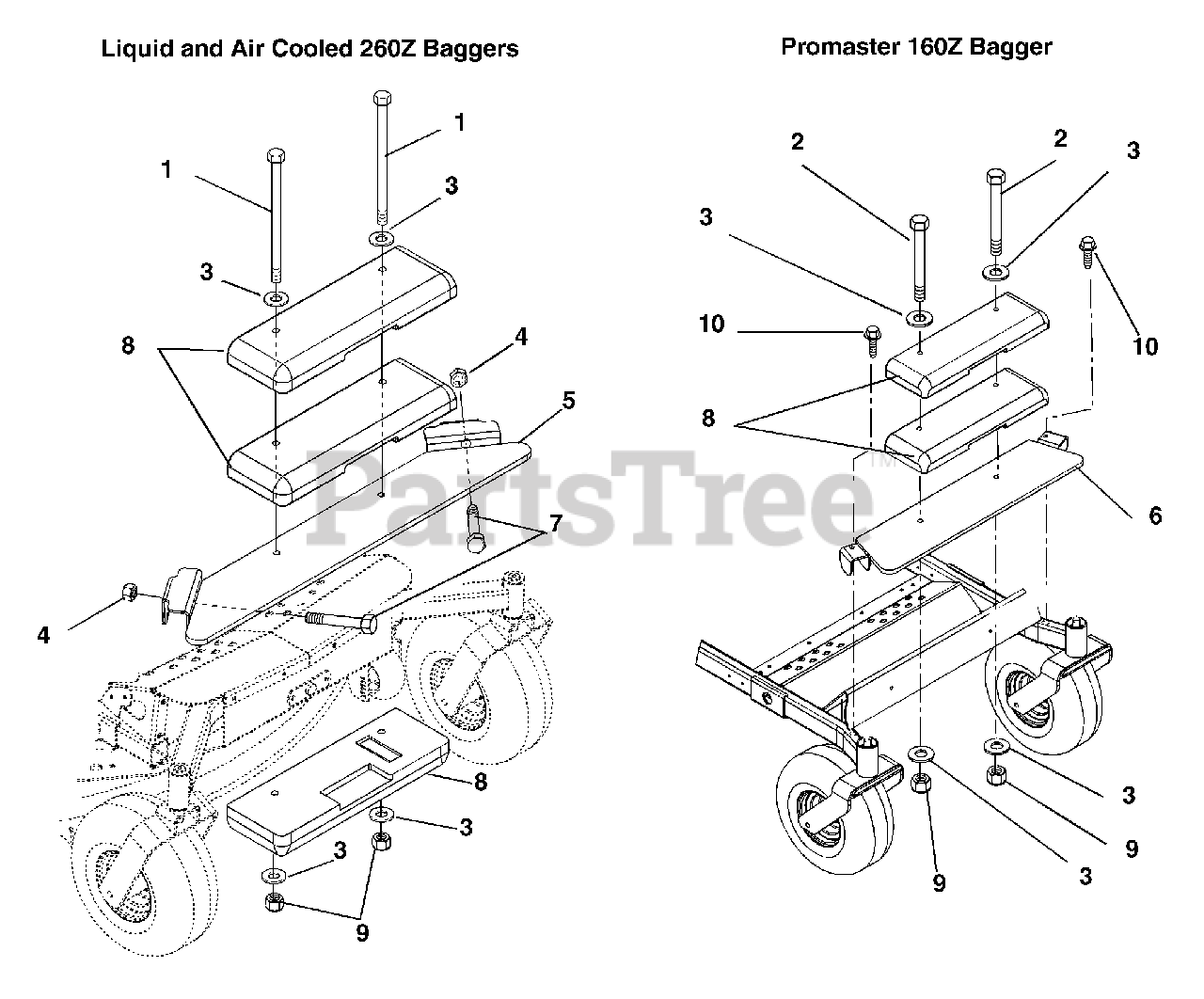

Counterweights Parts Diagram

  • Title

1

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$9.49

$

In Stock, Qty 13

0

2

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.99

$

In Stock, Qty 12

0

3

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 09260451

WELDMENT-260Z COUNTER WEIGHT

Note: (892005)

$

$

Not available

Gravely 09285951

WMT, WEIGHT PLATE

Note: (892012)

$

$

Not available

6

Gravely 09286851

WMT, WEIGHT KIT MTG.-BLACK

Note: (892016)

$

$

Not available

7

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$3.49

$

In Stock, Qty 11

0

8

Gravely 09054751

WEIGHT-REAR FRAME
(Superseded to 00172000)

$318.99

$

Usually ships in 4-12 days

0

9

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 16

0

10

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

Note: (892016)

$2.49

$

In Stock, Qty 20+

0
