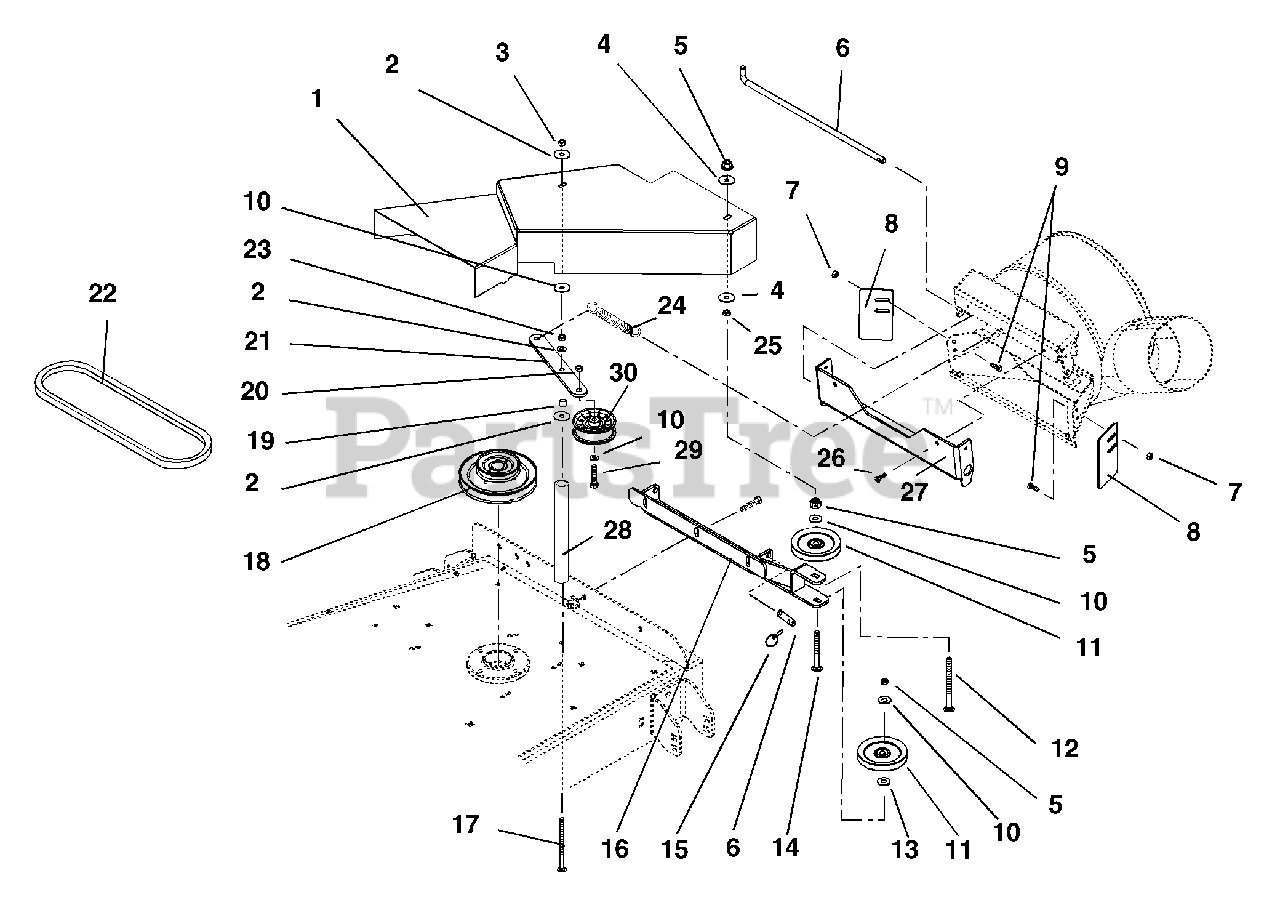

892005 - Gravely 60" Deck Grass Bagger for PM260Z (SN: 000101 & Above) Pulleys And Covers Parts Diagram

60" Deck Grass Bagger for PM260Z

Pulleys And Covers Parts Diagram

  • Title

1

Gravely 09261853

WELDMENT, BELT GUARD
(Superseded to 00439151)

$

$

Not available

2

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 18

0

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

5

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 09229800

ROD-PIVOT

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

8

Gravely 09263043

BAR, EXTENSION
(Superseded to 09263051)

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

12

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

15

Gravely 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$6.49

$

Usually ships in 4-12 days

0

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

Note: (Gravely Part Number)

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 09279651

WMT, PIVOT MOUNTING BRKT
(Superseded to 00438751)

$

$

Not available

17

Gravely 06226200

BLT-RDHDSQNKFTH.31-18X5 GR5YZC

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 09261600

PULLEY, DOUBLE V 3.50/6.25 DIA

$164.99

$

Usually ships in 4-12 days

0

19

Gravely 03009200

SPACER .380X.503X.281

$3.99

$

Usually ships in 4-12 days

0

Gravely 039055

SPACER .380X.503X.281
(Superseded to 03009200)

Note: (Gravely Part Number)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09261351

ARM, IDLER

$

$

Not available

22

Gravely 07239800

V-BELT, HA-WRAPPED

$55.99

$

Usually ships in 4-12 days

0

23

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 08332000

SG-TENS .069X.62X3.50 WLD20

$11.99

$

In Stock, only 2 left!

0

Gravely 034400

SG-TENS .069X.62X3.50 WLD20
(Superseded to 08332000)

Note: (Gravely Part Number)

$11.99

$

In Stock, only 2 left!

0

25

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09279751

WMT, BLOWER MOUNT

$50.99

$

Usually ships in 4-12 days

0

28

Gravely 09269000

SPACER, .625 DIA X 3.25

$

$

Not available

29

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 07309300

IDLER-FLAT 3.00X.38

$38.99

$

In Stock, Qty 5

0
