892007 - Gravely 50" Deck Grass Bagger for PM260Z (SN: 000101 & Above) Pulleys And Cover Parts Diagram

50" Deck Grass Bagger for PM260Z

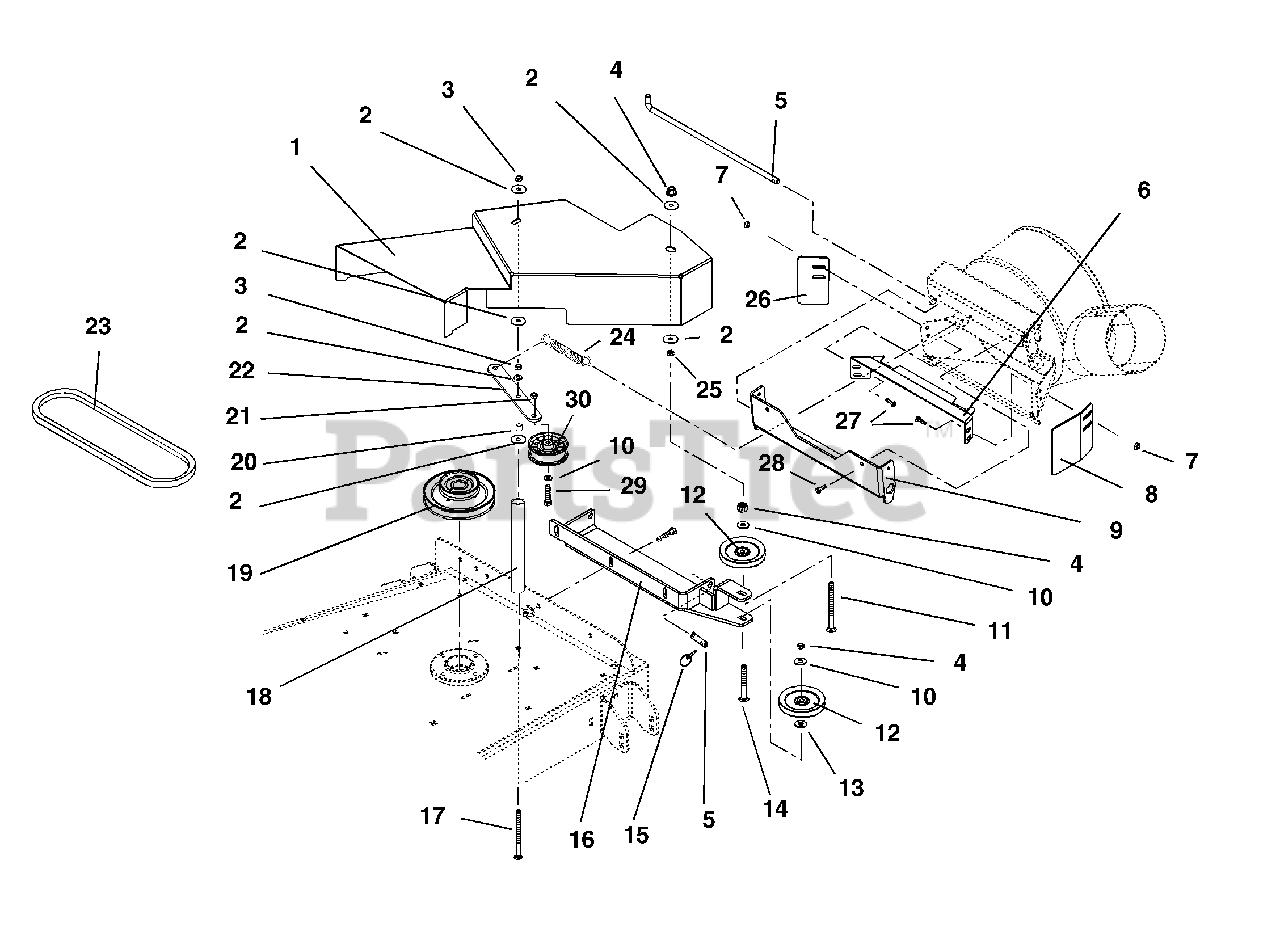

Pulleys And Cover Parts Diagram

  • Title

1

Gravely 09277053

Weldment, Belt Guard

$

$

Not available

2

Gravely 06439300

Washer-Flat-Steel .38 x 1.50 x .062
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 09229800

Rod-Pivot

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 09276743

Guard, Pump Inlet

$

$

Not available

7

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

8

Gravely 09276643

Bracket, Formed

$

$

Not available

9

Gravely 09279700

Weldment, Blower Mount

$

$

Not available

10

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06224400

Bolt-Round Head Square Neck .38-16 x 2.5 Grade 5
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

12

Gravely 07311400

Idler-V 4.00 x .38
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

13

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06223800

Bolt-Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 07014500

Pin-Klik 1.00 x .188 x 1.25

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 023468

(Gravely Part Number)
(Superseded to 07014500)

Note: (Gravely Part Number)

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 09276951

Weldment, Pivot Mount Bracket

$

$

Not available

17

Gravely 06226200

Bolt-Round Head Square Neck .31-18 x 5 Grade 5

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 09269000

Spacer .625 x 3.25

$

$

Not available

19

Gravely 09261500

Pulley, Double V 3.50/5.25 Dia.

$164.99

$

Usually ships in 4-12 days

0

20

Gravely 03009200

Spacer .380 x .503 x .281

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09261351

Arm, Idler

$

$

Not available

23

Gravely 07240800

V-Belt, 48-780 78" Outer Circle

$39.99

$

Usually ships in 4-12 days

0

24

Gravely 08332000

Spring-Tension .069 x .62 x 3.50

$11.99

$

In Stock, Qty 6

0

24

Gravely 034400

(Gravely Part Number)
(Superseded to 08332000)

Note: (Gravely Part Number)

$11.99

$

In Stock, Qty 6

0

25

Gravely 06535900

Nut-Hex-Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 09263043

Bar, Extension
(Superseded to 09263051)

$18.99

$

Usually ships in 4-12 days

0

27

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

28

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.99

$

In Stock, only 4 left!

0

30

Gravely 07309300

Idler-Flat 3.00 x .38

$38.99

$

In Stock, only 4 left!

0
