892016 - Gravely 60" Deck Grass Bagger for PM100Z (SN: 000101 & Above) Bags And Cover Parts Diagram

60" Deck Grass Bagger for PM100Z

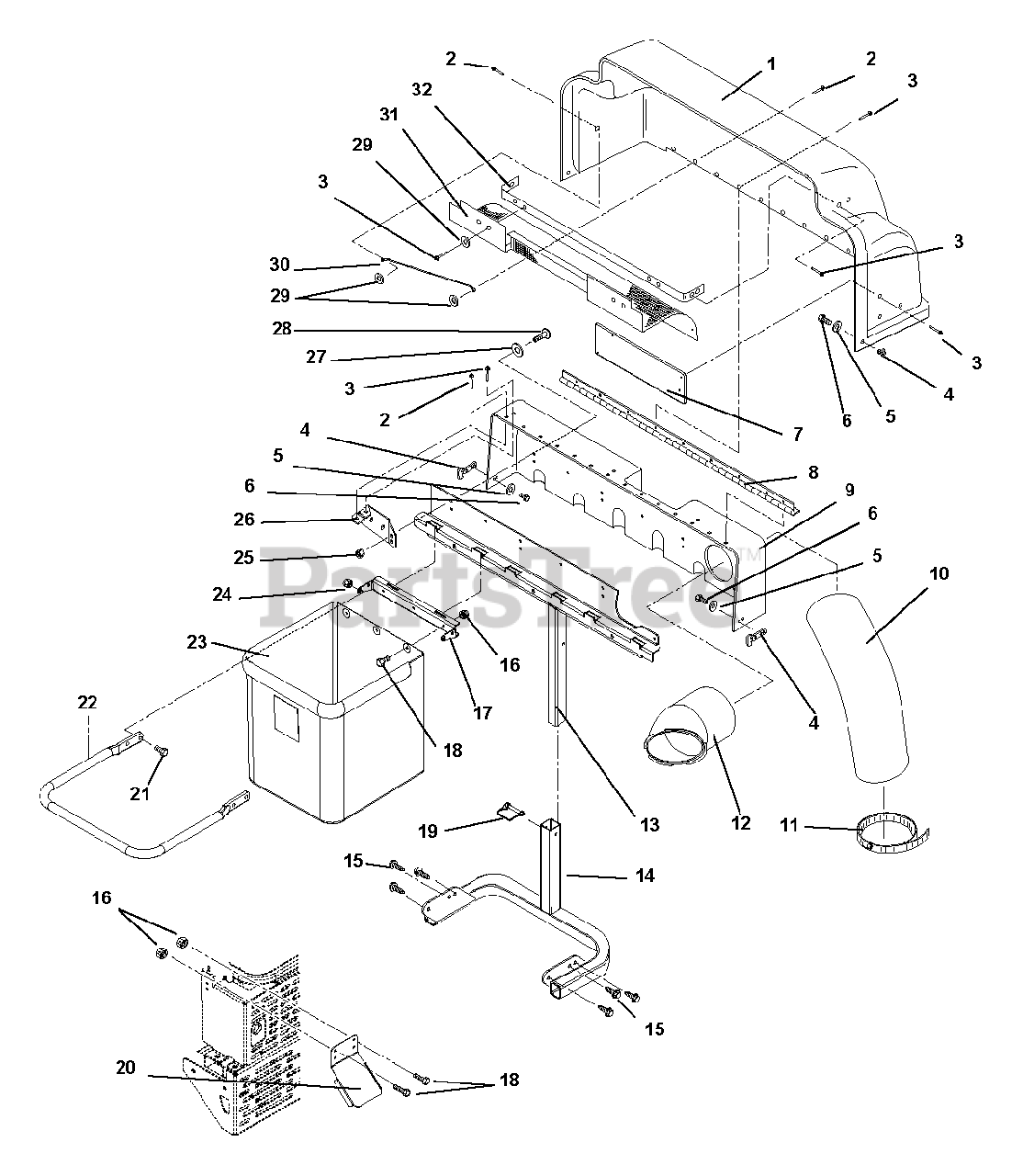

Bags And Cover Parts Diagram

  • Title

1

Gravely 59203500

Hinged Cover with Decal

$

$

Not available

2

Gravely 06803800

Rivet-Pop .187 x .527

$1.49

$

In Stock, Qty 20+

0

2

Gravely 041098

(Gravely Part Number)
(Superseded to 06803800)

Note: (Gravely Part Number)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 9

0

4

Gravely 09079500

Latch, Rubber

$35.99

$

In Stock, Qty 9

0

5

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 02731200

Baffle

$

$

Not available

8

Gravely 03325200

Hinge

$

$

Not available

9

Gravely 03569100

Stationary Cover

$

$

Not available

9

Gravely 045465

(Gravely Part Number)
(Superseded to 03569100)

Note: (Gravely Part Number)

$

$

Not available

10

Gravely 01585800

Hose 7 x 45
(Superseded to 04222900)

$131.99

$

In Stock, only 4 left!

0

11

Gravely 03022400

Clamp-Hose Worm 2.13/8.62 x .56

$18.99

$

Usually ships in 4-12 days

0

11

Gravely 038532

(Gravely Part Number)
(Superseded to 03022400)

Note: (Gravely Part Number)

$18.99

$

Usually ships in 4-12 days

0

12

Gravely 03599600

Bagger Boot- Upper

$

$

Not available

12

Gravely 050373

(Gravely Part Number)
(Superseded to 03599600)

Note: (Gravely Part Number)

$

$

Not available

13

Gravely 03685751

Weldment-Bagger Frame

$

$

Not available

14

Gravely 09261451

Weldment-Bumper (892005)

Note: (892005)

$

$

Not available

14

Gravely 09285851

Weldment-Bumper (892012)

Note: (892012)

$

$

Not available

14

Gravely 09292351

Weldment-Bumper (892016)

Note: (892016)

$

$

Not available

15

Gravely 07415400

Screw-Tapping, .38-16 x .75 (892012, 892016)
(Superseded to 07400129)

Note: (892012, 892016)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 09283751

Clamp-Bag

$118.99

$

Usually ships in 4-12 days

0

18

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 07065900

Pin-.38 x 2.50 Square Lock

$

$

Not available

20

Gravely 09263251

Deflector, Exhaust

$45.99

$

Usually ships in 4-12 days

0

21

Gravely 06220800

Bolt-Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 03691300

Frame-Bag Support

$

$

Not available

23

Gravely 03686300

Bag-Mesh Assist Bagger

$93.99

$

Usually ships in 4-12 days

0

24

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06529800

Nut- Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 02725200

Brace

$

$

Not available

26

Gravely 041092

(Gravely Part Number)
(Superseded to 02725200)

Note: (Gravely Part Number)

$

$

Not available

27

Gravely 06435700

Washer-Flat-Steel .344 x .063
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 05947000

Bolt-Hex .31-18 x 1.00 Grade 2
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06444400

Washer-Flat-Steel .194 x .492 x .047

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 03552900

Brace

$

$

Not available

30

Gravely 041097

(Gravely Part Number)
(Superseded to 03552900)

Note: (Gravely Part Number)

$

$

Not available

31

Gravely 09218800

Screen

$

$

Not available

32

Gravely 09224351

Screen Mounting Bracket

$

$

Not available
