892016 - Gravely 60" Deck Grass Bagger for PM100Z (SN: 000101 & Above)

60" Deck Grass Bagger for PM100Z

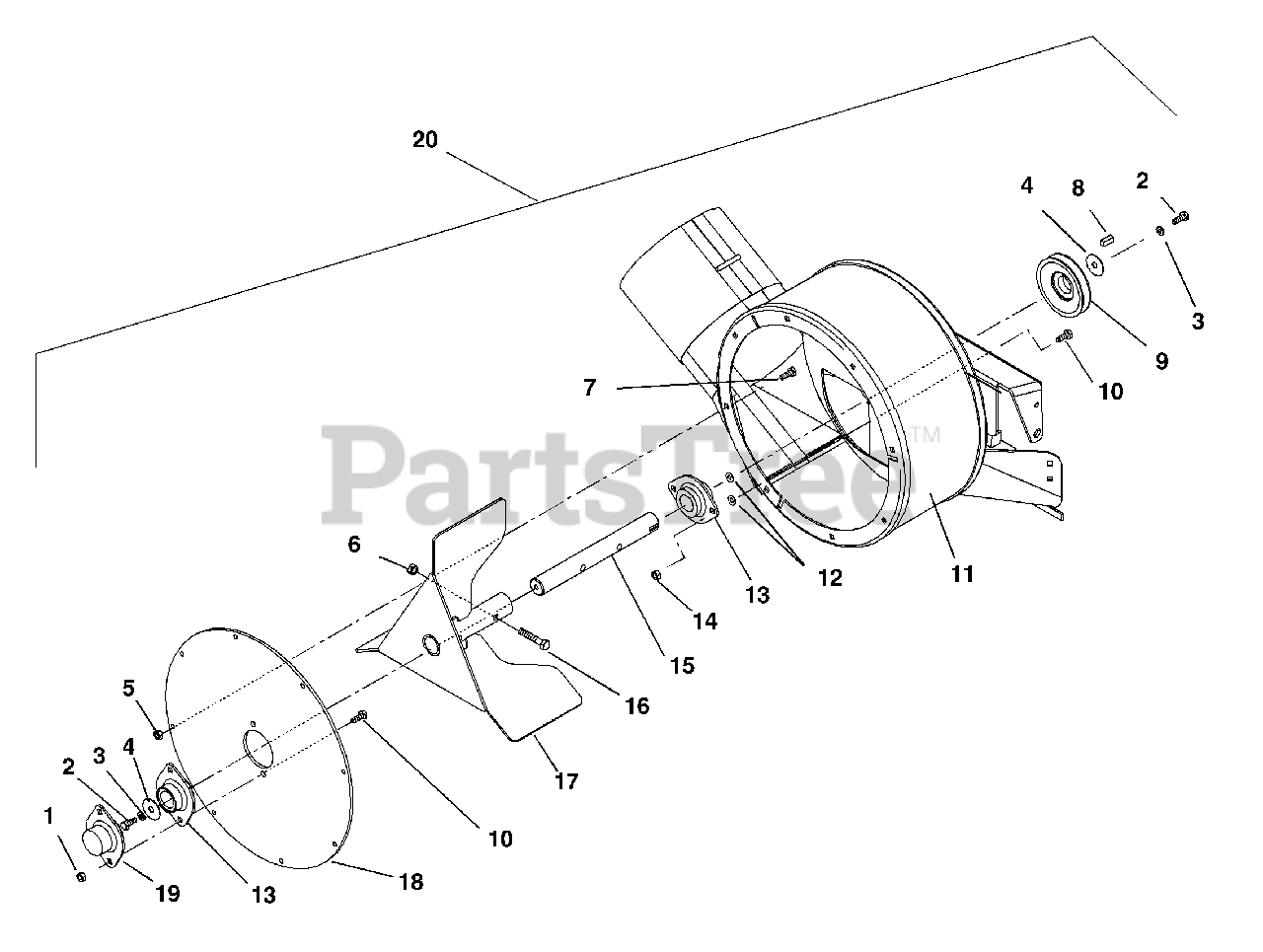

892016 - Gravely 60" Deck Grass Bagger for PM100Z (SN: 000101 & Above) > Parts Diagrams (5) > Blower Housing Assembly

  • Title
06530200

1

Nut-Locking-Nylon .312-18

Part# 06530200

OEM Warranty Repair Part for Gravely

Not available

05946800

2

Bolt-Hex .25-20 x .75 Grade 5

Part# 05946800

OEM Warranty Repair Part for Gravely

Not available

06308400

3

Washer-Locking .25 x .062 Regular

Part# 06308400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06443900

4

Washer-Flat-Steel Washer-Flat-Steel .265 x 1.370 x .179

Part# 06443900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06543500

5

Nut-Locking-Top-Flange .25-20

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06529800

6

Nut-Locking-Center .31-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06220600

7

Bolt-Round Head Square Neck .25-20 x .50 Grade 5

Part# 06220600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06611100

8

Key-Square .25 x .38 x .25

Part# 06611100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

09229200

9

Pulley-Driven 3.50 Dia.

Part# 09229200 (Superseded to 59206100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $89.72

05946900

10

Bolt-Hex .31-18 x 1.00 Grade 5

Part# 05946900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

09228543

11

Weldment, Blower Housing

Part# 09228543 (Superseded to 09228551)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $362.84

06435800

12

Washer-Flat-Steel .312 x .734 x .06

Part# 06435800

OEM Warranty Repair Part for Gravely

Not available

09228900

13

Bearing-2 Bolt x 1.00 Shaft

Part# 09228900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

06543100

14

Nut-Locking-Top-Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

09229100

15

Shaft-Impeller

Part# 09229100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $63.89

05957400

16

Bolt-Hex .31-18 x 1.75 Grade 5

Part# 05957400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

09229000

17

Impeller Complete

Part# 09229000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $266.07

09229343

18

Cover-Bearing Support

Part# 09229343 (Superseded to 09229351)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

03687400

19

Cover-Bearing

Part# 03687400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

59204800

20

Assembly, Blower Housing

Part# 59204800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $967.68
