892017 - Ariens PM-144Z, 148Z, 152Z Bagger (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

PM-144Z, 148Z, 152Z Bagger

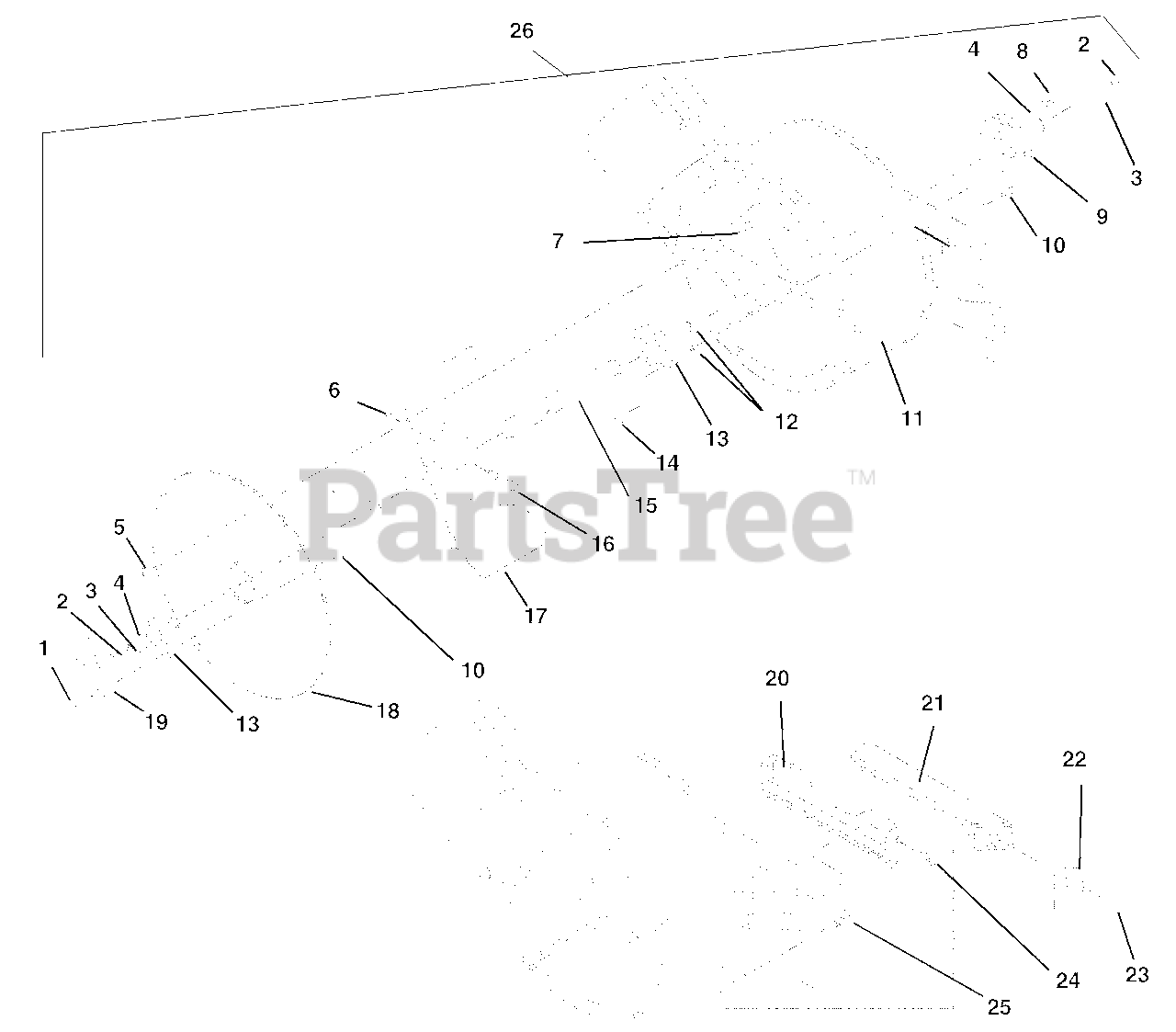

Blower Housing Assembly Parts Diagram

  • Title

1

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

2

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

3

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

4

Ariens 06443900

WSHR-FL-STL .265X1.370X.179

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

6

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

8

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

9

Ariens 09229200

PULLEY-DRIVEN, 3.50 DIA
(Superseded to 59206100)

$129.99

$

Usually ships in 4-12 days

0

10

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

11

Ariens 09228543

WELDMENT, BLOWER HOUSING
(Superseded to 09228551)

$

$

Not available

12

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

13

Ariens 09228900

BEARING-2 BOLT X 1.00 SHAFT

$77.99

$

Usually ships in 4-12 days

0

14

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 09229100

SHAFT-IMPELLER

$103.99

$

Usually ships in 4-12 days

0

16

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

17

Ariens 09229000

IMPELLER COMPLETE

$341.99

$

Usually ships in 4-12 days

0

18

Ariens 09229343

COVER, BEARING SUPPORT
(Superseded to 09229351)

$90.99

$

Usually ships in 4-12 days

0

19

Ariens 03687400

COVER-BEARING

$41.99

$

Usually ships in 4-12 days

0

20

Ariens 09279700

WMT. BLOWER MOUNT

$

$

Not available

21

Ariens 09294243

GUARD, PUMP INLET

$

$

Not available

22

Ariens 09263043

BAR, EXTENSION
(Superseded to 09263051)

$17.99

$

Usually ships in 4-12 days

0

23

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

24

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 59204800

ASSEMBLY, BLOWER HOUSING

$

$

Not available
