892017 - Ariens PM-144Z, 148Z, 152Z Bagger (SN: 000101 & Above) Pulleys And Cover Parts Diagram

PM-144Z, 148Z, 152Z Bagger

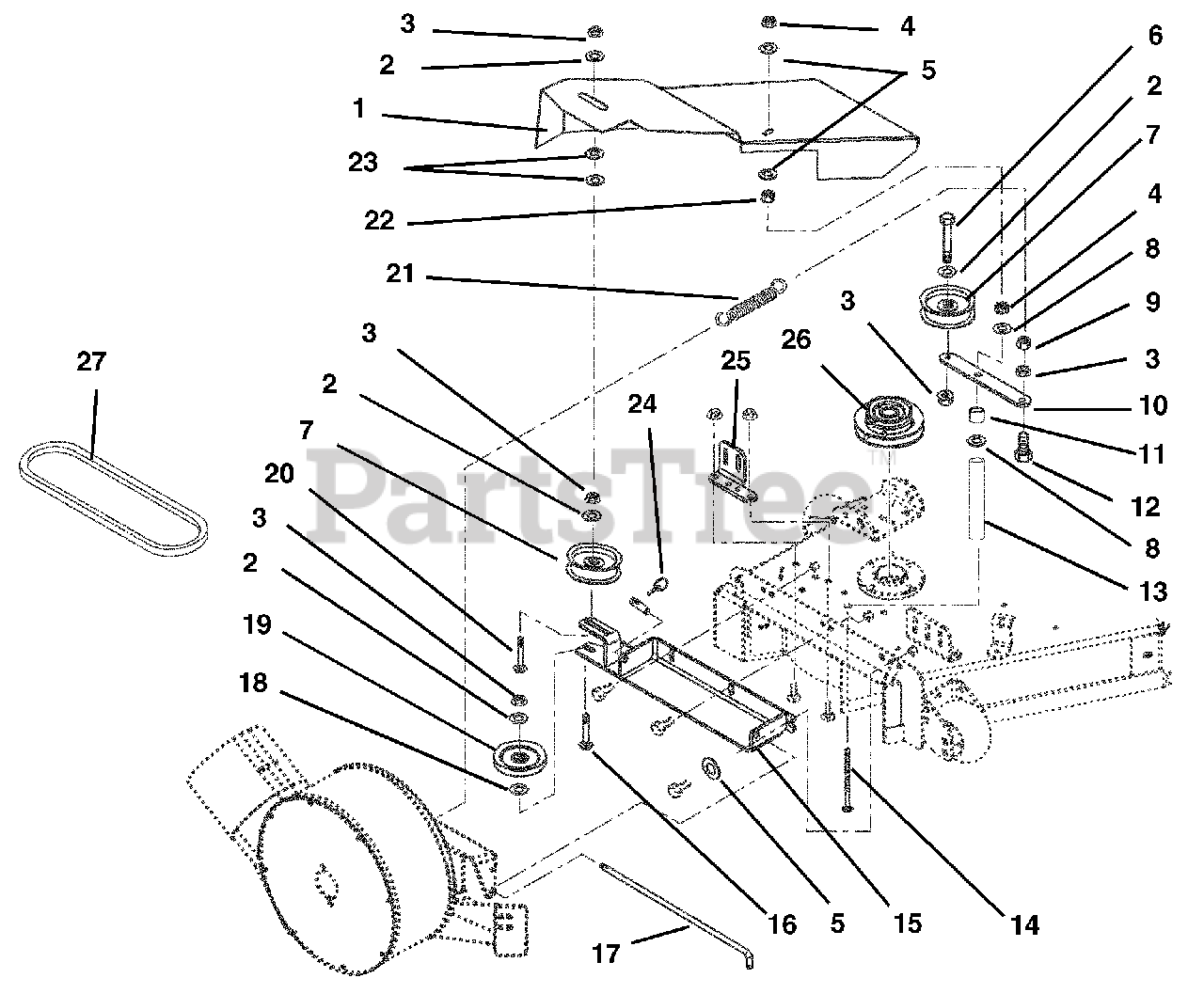

Pulleys And Cover Parts Diagram

  • Title

1

Ariens 09294053

GUARD, BAGGER
(Superseded to 09294051)

$134.10

$

Usually ships in 4-12 days

0

2

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.24

$

In Stock, Qty 20+

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$2.24

$

In Stock, Qty 20+

0

4

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$2.80

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.18

$

In Stock, Qty 20+

0

6

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.80

$

In Stock, Qty 20+

0

7

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$35.72

$

In Stock, Qty 5

0

8

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.63

$

In Stock, Qty 8

0

9

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

10

Ariens 09261351

ARM, IDLER

$

$

Not available

11

Ariens 03009200

SPACER .380X.503X.281

$3.47

$

Usually ships in 4-12 days

0

12

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.18

$

In Stock, Qty 11

0

13

Ariens 08874100

SPACER .391 ID X .62 OD X 1.0

$

$

Not available

14

Ariens 06222500

BLT-RDHDSQNKFT.312-18X4.0 G5YZ

$3.58

$

In Stock, only 4 left!

0

15

Ariens 09294451

WMT, PIVOT MOUNT 44,48,52

$

$

Not available

16

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, Qty 14

0

17

Ariens 09229800

ROD-PIVOT

$39.19

$

Usually ships in 4-12 days

0

18

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$3.08

$

In Stock, Qty 20+

0

19

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.07

$

In Stock, only 4 left!

0

20

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.63

$

In Stock, Qty 18

0

21

Ariens 08311000

SG-TENS .080X.687X5.16 WLD 28

$14.48

$

In Stock, only 3 left!

0

22

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

23

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.53

$

In Stock, only 3 left!

0

24

Ariens 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$5.53

$

Usually ships in 4-12 days

0

25

Ariens 09294353

BRKT, DECK MTG. 44, 48
(Superseded to 09294351)

Note: (For use with 3/8 inch deck chain hardware)

$

$

Not available

25

Ariens 00190353

44" & 48" DECK MTG BRKT - RED
(Superseded to 00190351)

Note: (For use with 1/2 inch deck chain hardware)

$

$

Not available

25

Ariens 09294153

BRKT, 52" DECK MTG.
(Superseded to 09294151)

Note: (For use with 3/8 inch deck chain hardware)

$

$

Not available

25

Ariens 00190453

52" DECK MTG BRACKET - RED
(Superseded to 00176853)

Note: (For use with 1/2 inch deck chain hardware)

$5.53

$

Usually ships in 4-12 days

0

26

Ariens 09261500

PULLEY, DOUBLE V 3.50/5.25 DIA

$139.69

$

Usually ships in 4-12 days

0

27

Ariens 07239200

V-BELT, A-RAW EDGE

$39.63

$

In Stock, only 3 left!

0

27

Ariens 07216300

V-BELT, 4L-RAW EDGE

$39.41

$

In Stock, only 1 left!

0
