892017 - Gravely 44", 48", 52" Grass Bagger for PM100Z (SN: 000101 & Above)

44", 48", 52" Grass Bagger for PM100Z

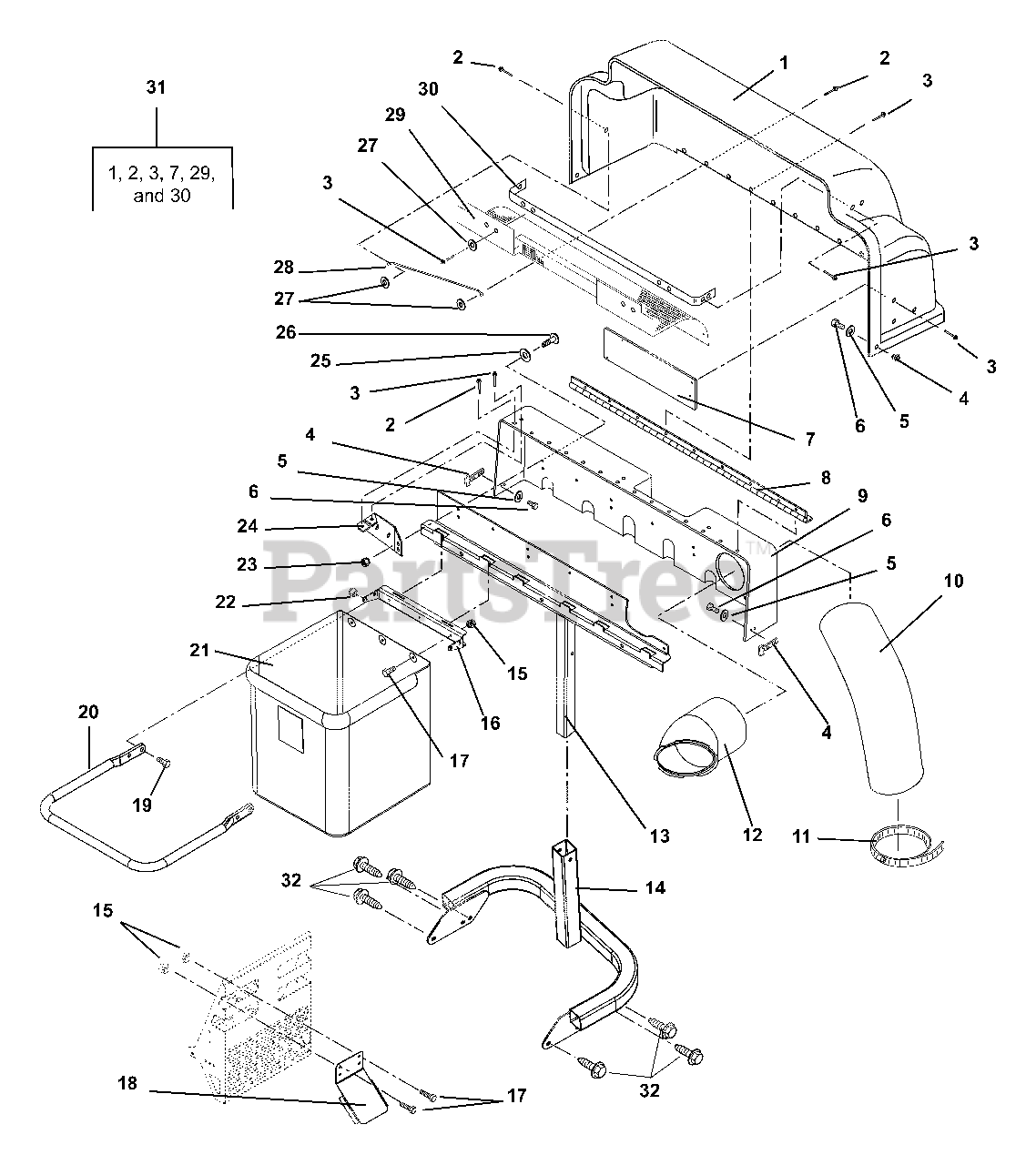

892017 - Gravely 44", 48", 52" Grass Bagger for PM100Z (SN: 000101 & Above) > Parts Diagrams (5) > Bags And Cover

  • Title
03569200

1

Hinged Cover with Decal

Part# 03569200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $70.53

06803800

2

Rivet-Pop .187 x .527

Part# 06803800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

041098

2

(Gravely Part Number)

Part# 041098 (Superseded to 06803800)

Note: (Gravely Part Number)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06802500

3

Rivet-Pop .187 x .402

Part# 06802500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

09079500

4

Latch, Rubber

Part# 09079500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

06442700

5

Washer-Flat-Steel .219 x .50 x .049

Part# 06442700

OEM Warranty Repair Part for Gravely

Not available

06116700

6

Screw-Machine 10-24 x .50 Hex Washer Head

Part# 06116700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

02731200

7

Baffle

Part# 02731200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

03325200

8

Hinge

Part# 03325200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

03569100

9

Stationary Cover

Part# 03569100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $84.61

045465

9

(Gravely Part Number)

Part# 045465 (Superseded to 03569100)

Note: (Gravely Part Number)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $84.61

01585800

10

Hose 7 x 45

Part# 01585800 (Superseded to 04222900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $96.09

03022400

11

Clamp-Hose Worm 2.13/8.62 x .56

Part# 03022400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

038532

11

(Gravely Part Number)

Part# 038532 (Superseded to 03022400)

Note: (Gravely Part Number)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

03599600

12

Bagger Boot- Upper

Part# 03599600

OEM Warranty Repair Part for Gravely

Not available

050373

12

(Gravely Part Number)

Part# 050373 (Superseded to 03599600)

Note: (Gravely Part Number)

OEM Warranty Repair Part for Gravely

Not available

03685751

13

Weldment-Bagger Frame

Part# 03685751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $212.36

09292351

14

Weldment-Bumper

Part# 09292351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

06529700

15

Nut-Locking-Center .25-20

Part# 06529700

OEM Warranty Repair Part for Gravely

Not available

09283751

16

Weldment, Hanger Frame

Part# 09283751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

05947900

17

Bolt-Hex .25-20 x .50 Grade 5

Part# 05947900

OEM Warranty Repair Part for Gravely

Not available

09263251

18

Deflector, Exhaust

Part# 09263251

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06220800

19

Bolt-Round Head Square Short Neck .31-18 x .75 Grade 5

Part# 06220800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

03691300

20

Frame-Bag Support

Part# 03691300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $102.91

03686300

21

Bag-Mesh Assist Bagger

Part# 03686300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $111.74

06530400

22

Nut-Spin Lock-Flange .312-18

Part# 06530400

OEM Warranty Repair Part for Gravely

Not available

06529800

23

Nut- Locking-Nylon .312-18 Grade 2

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02725200

24

Brace

Part# 02725200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

041092

24

(Gravely Part Number)

Part# 041092 (Superseded to 02725200)

Note: (Gravely Part Number)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06435700

25

Washer-Flat-Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05947000

26

Bolt-Hex .31-18 x .75 Grade 5

Part# 05947000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06444400

27

Washer-Flat-Steel .194 x .492 x .047

Part# 06444400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03552900

28

Brace

Part# 03552900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

041097

28

(Gravely Part Number)

Part# 041097 (Superseded to 03552900)

Note: (Gravely Part Number)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

09218800

29

Screen

Part# 09218800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $72.61

09224351

30

Screen Mounting Bracket

Part# 09224351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

59203500

31

Hinged Cover Assembly

Part# 59203500

Note: (Includes items 1, 2, 3, 7, 29, and 30)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $544.29

07415400

32

Screw-Tapping .38-16 x .75 Hex Washer Head

Part# 07415400 (Superseded to 07400129)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.03
