892017 - Gravely 44", 48", 52" Grass Bagger for PM100Z (SN: 000101 & Above) Pulleys And Cover Parts Diagram

44", 48", 52" Grass Bagger for PM100Z

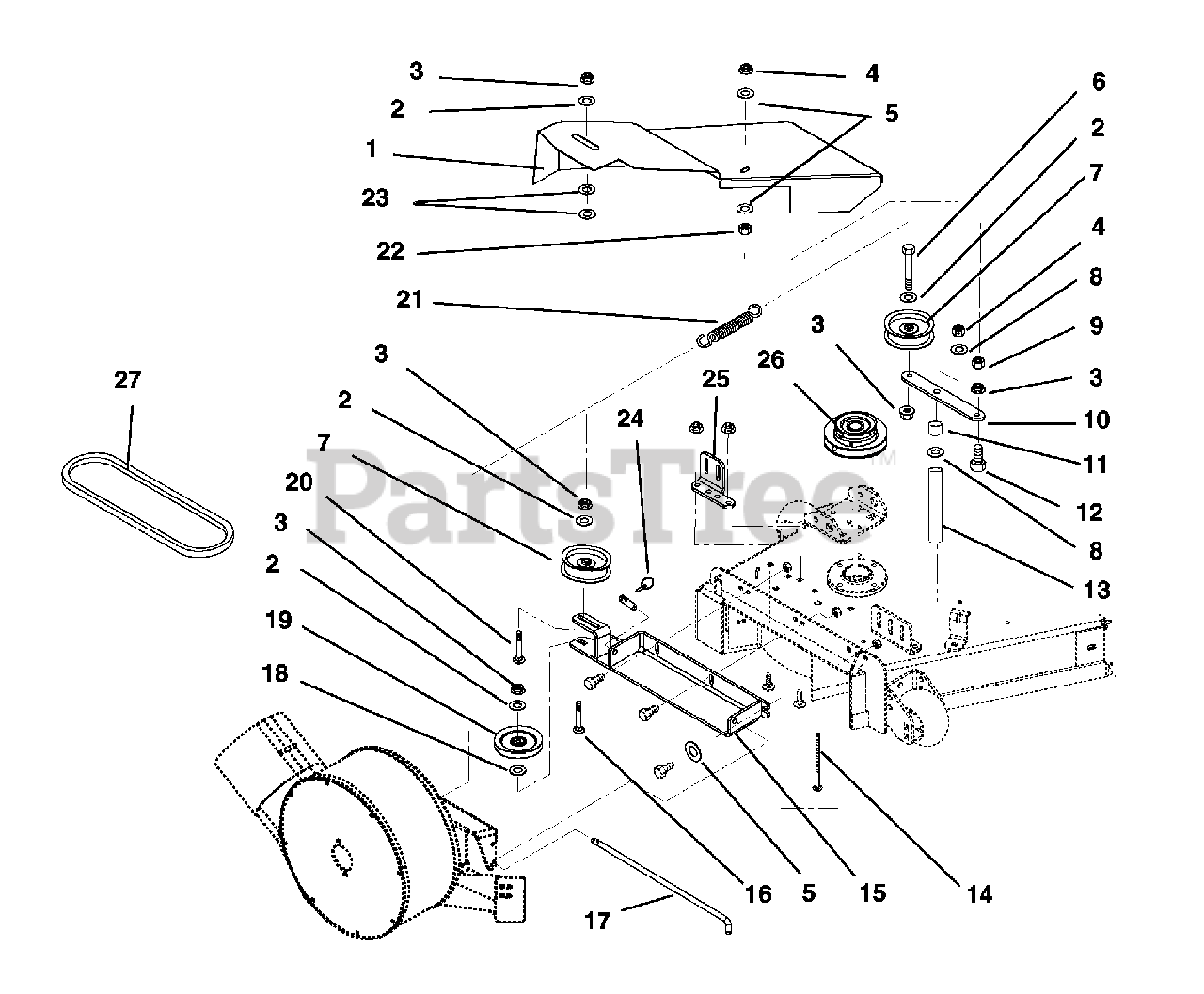

Pulleys And Cover Parts Diagram

  • Title

1

Gravely 09294053

GUARD, BAGGER
(Superseded to 09294051)

$

$

Not available

2

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$40.99

$

In Stock, Qty 20+

0

8

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 18

0

9

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09261351

ARM, IDLER

$

$

Not available

11

Gravely 03009200

SPACER .380X.503X.281

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 15

0

13

Gravely 08874100

SPACER .391 ID X .62 OD X 1.0

$

$

Not available

14

Gravely 06222500

BLT-RDHDSQNKFT.312-18X4.0 G5YZ

$3.99

$

In Stock, only 2 left!

0

15

Gravely 09294451

WMT, PIVOT MOUNT 44,48,52

$

$

Not available

16

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

17

Gravely 09229800

ROD-PIVOT

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

20

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 08311000

SG-TENS .080X.687X5.16 WLD 28

$15.99

$

In Stock, only 4 left!

0

22

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

24

Gravely 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$6.49

$

Usually ships in 4-12 days

0

25

Gravely 09294353

BRKT, DECK MTG. 44, 48
(Superseded to 09294351)

$

$

Not available

Gravely 09294153

BRKT, 52" DECK MTG.
(Superseded to 09294151)

$

$

Not available

26

Gravely 09261500

PULLEY, DOUBLE V 3.50/5.25 DIA

$164.99

$

Usually ships in 4-12 days

0

27

Gravely 07239200

V-BELT, A-RAW EDGE

$44.99

$

In Stock, only 3 left!

0

Gravely 07216300

V-BELT, 4L-RAW EDGE

$42.99

$

In Stock, only 3 left!

0
