892017 - Gravely 44", 48", 52" Grass Bagger for PM100Z (SN: 000101 & Above)

44", 48", 52" Grass Bagger for PM100Z

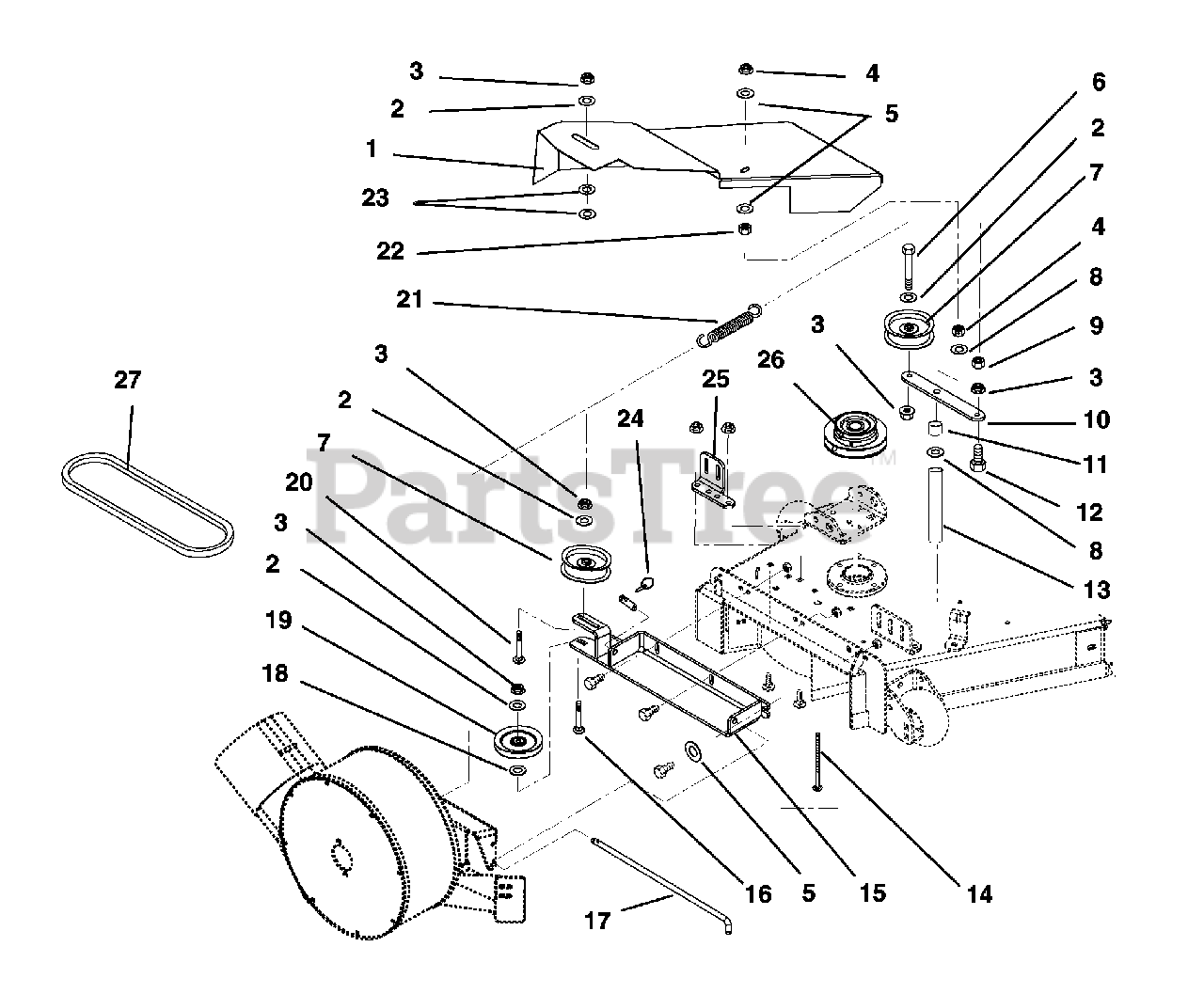

892017 - Gravely 44", 48", 52" Grass Bagger for PM100Z (SN: 000101 & Above) > Parts Diagrams (5) > Pulleys And Cover

  • Title
09294053

1

Weldment, Belt Guard

Part# 09294053 (Superseded to 09294051)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $111.74

06435900

2

Washer-Flat-Steel .438 x 1.00 x .083

Part# 06435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06542000

3

Nut-Locking-Top-Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543100

4

Nut-Locking-Top-Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06435700

5

Washer-Flat-Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05958500

6

Bolt-Hex .38-16 x 1.75 Grade 5

Part# 05958500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07324100

7

Idler Flanged 3.50

Part# 07324100 (Superseded to 07300028)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $35.72

06446300

8

Washer-Flat-Steel .344 x 1.125 x .13

Part# 06446300

OEM Warranty Repair Part for Gravely

Not available

06529600

9

Nut-Locking-Center .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.88

09261351

10

Arm, Idler

Part# 09261351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

03009200

11

Spacer .380 x .503 x .281

Part# 03009200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05958000

12

Bolt-Hex .38-16 x 1.25 Grade 5

Part# 05958000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

08874100

13

Spacer .391 x .625 x 1

Part# 08874100

OEM Warranty Repair Part for Gravely

Not available

06222500

14

Bolt .312-18 x 4.00

Part# 06222500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

09294451

15

Weldment, Pivot Mount 44,48,52

Part# 09294451

OEM Warranty Repair Part for Gravely

Not available

06223800

16

Bolt-Round Head Square Neck .38-16 x 1.75 Grade 5

Part# 06223800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

09229800

17

Rod, Pivot

Part# 09229800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06444000

18

Washer-Flat-Steel .406 x 1.00 x .188

Part# 06444000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07311400

19

Idler-V 4.00 x .38

Part# 07311400 (Superseded to 07300528)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $39.07

06224400

20

Bolt-Round Head Square Neck .38-16 x 2.50 Grade 5

Part# 06224400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08311000

21

Spring-Tension .080 x .687 x 5.16

Part# 08311000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

06529800

22

Nut-Locking-Center .31-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06442400

23

Washer-Flat-Steel .406 x 1.375 x .135

Part# 06442400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07014500

24

Pin-Klik 1.00 x .188 x 1.25

Part# 07014500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

09294353

25

Bracket, 44- and 48-Inch Deck Mounting

Part# 09294353 (Superseded to 09294351)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

09294153

25

Bracket, 52-Inch Deck Mounting

Part# 09294153 (Superseded to 09294151)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

09261500

26

Pulley, Double V 3.50/5.25 Diameter

Part# 09261500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $139.69

07239200

27

V-Belt, 44- & 48-Inch Mower Deck

Part# 07239200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $35.72

07216300

27

V-Belt 52-Inch Mower Deck

Part# 07216300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $35.72
