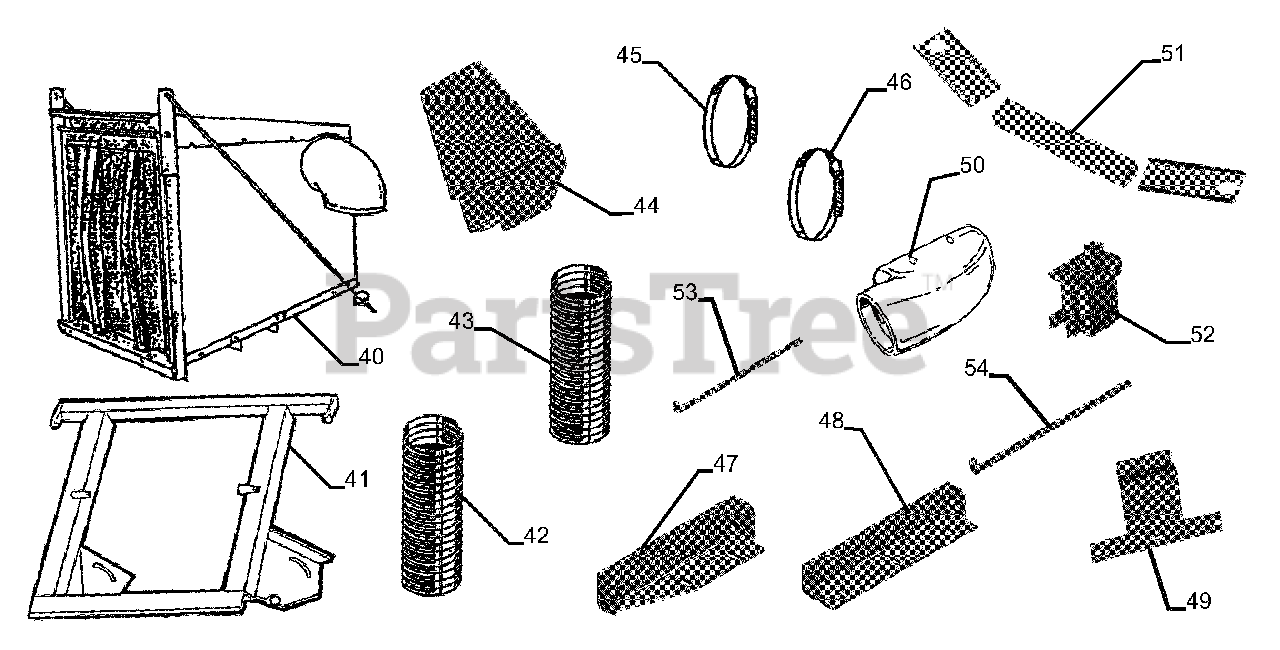

892018 - Gravely 52", 60" Deck Grass Bagger for PM260Z (SN: 000101 & Above) Box Assembly Parts Diagram

52", 60" Deck Grass Bagger for PM260Z

Box Assembly Parts Diagram

  • Title

40

Gravely 00197900

12 CU FT BOX ASSY W/A0512 HAND

$

$

Not available

41

Gravely 00197800

ASSEMBLY-TOP MAIN FRAME

$

$

Not available

42

Gravely 00195000

HOSE - LOWER 8" X 36"

$

$

Not available

43

Gravely 00195400

HOSE - UPPER 6" X 36"

$100.99

$

Usually ships in 4-12 days

0

44

Gravely 00197700

ASSY-LEFT LOWER MAIN FRAME LEG

$

$

Not available

45

Gravely 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$19.99

$

Usually ships in 4-12 days

0

46

Gravely 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$19.99

$

Usually ships in 4-12 days

0

Gravely 79203600

52" BOOT--HOPPER PTO

$

$

Not available

Gravely 79203500

60" BOOT FOR HOPPER PTO DRIVE

$

$

Not available

47

Gravely 00194600

PLATE - BOOT - 52" DECK

$

$

Not available

48

Gravely 00194300

PLATE - BOOT - 60" DECK

$

$

Not available

49

Gravely 00194400

HANGER - BOOT

$

$

Not available

50

Gravely 00194500

BOOT - 52" DECK

$

$

Not available

50

Gravely 00194200

BOOT - 60" DECK
(Superseded to 04916000)

$

$

Not available

51

Gravely 00195100

KIT - UNIVERSAL WEIGHT

$617.99

$

Usually ships in 4-12 days

0

Gravely 00195200

BAR - 27" LONG WEIGHT

$

$

Not available

Gravely 00195300

BRACKET - WEIGHT

$89.99

$

Usually ships in 4-12 days

0

Gravely 07243500

BELT - A33K KEVLAR CORD

$52.99

$

Usually ships in 4-12 days

0

Gravely 07243400

BELT - A56K KEVLAR CORD

$148.99

$

Usually ships in 4-12 days

0

52

Gravely 00199200

SWITCH - SNAP MTG - N.C.

$

$

Not available

53

Gravely 00254700

BOOT-ROD 52"

$

$

Not available

54

Gravely 00254500

ROD-BOOT 60"

$

$

Not available
