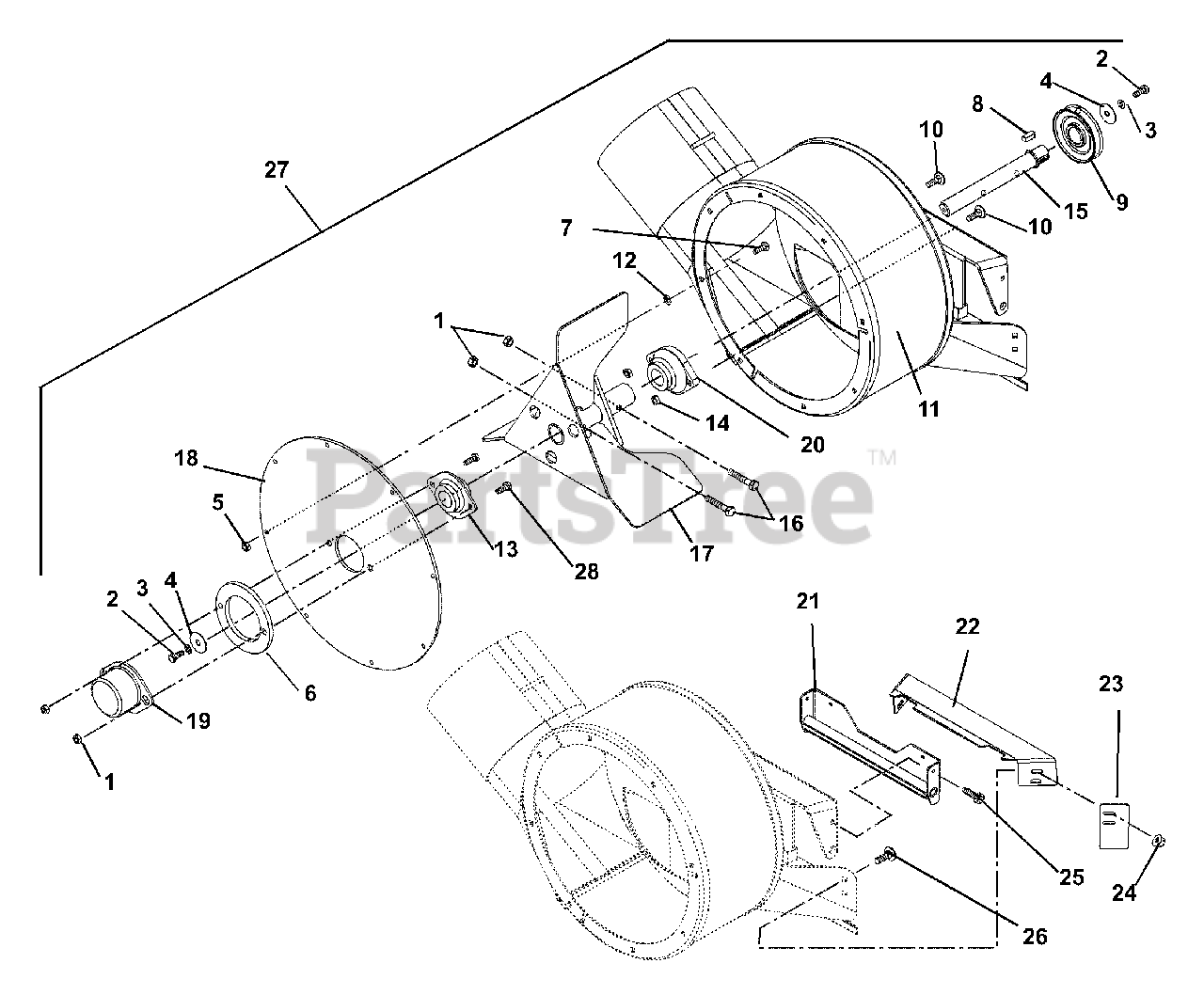

892021 - Gravely 52" Bagger for PM252Z (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

52" Bagger for PM252Z

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

3

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

4

Gravely 06443900

Washer-Flat-Steel .265 x 1.370 x .179

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00297300

Plate, Retainer
(Superseded to 00297351)

$

$

Not available

7

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

8

Gravely 06611200

Key-Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 19

0

9

Gravely 07300005

Pulley-V 3.50 x 1.004 w/key

$79.99

$

Usually ships in 4-12 days

0

10

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

11

Gravely 09228551

Weldment, Blower Housing

$

$

Not available

12

Gravely 07027600

Nut, Push .25 x .50

$2.49

$

In Stock, Qty 11

0

13

Gravely 09228900

Bearing-2 Bolt x 1.00 Shaft

$77.99

$

Usually ships in 4-12 days

0

14

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00269700

Shaft-Impeller

$132.99

$

Usually ships in 4-12 days

0

16

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

17

Gravely 00362200

Weldment, Bagger Impeller

$

$

Not available

18

Gravely 09229351

Cover-Bearing Support

$90.99

$

Usually ships in 4-12 days

0

19

Gravely 03687400

Cover-Bearing

$41.99

$

Usually ships in 4-12 days

0

20

Gravely 05400002

Bearing, Flange w/Set Screw 1.00 ID

$62.99

$

Usually ships in 4-12 days

0

21

Gravely 09279751

Weldment, Blower Mount

$49.99

$

Usually ships in 4-12 days

0

22

Gravely 09294251

Guard, Pump Inlet

$

$

Not available

23

Gravely 09263051

Bar, Extension

$17.99

$

Usually ships in 4-12 days

0

24

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

25

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 59204800

Assembly, Blower Housing

$

$

Not available

28

Gravely 05946900

Bolt, Hex .31-18 x 1.0
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0
