892021 - Gravely 52" Bagger for PM252Z (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

52" Bagger for PM252Z

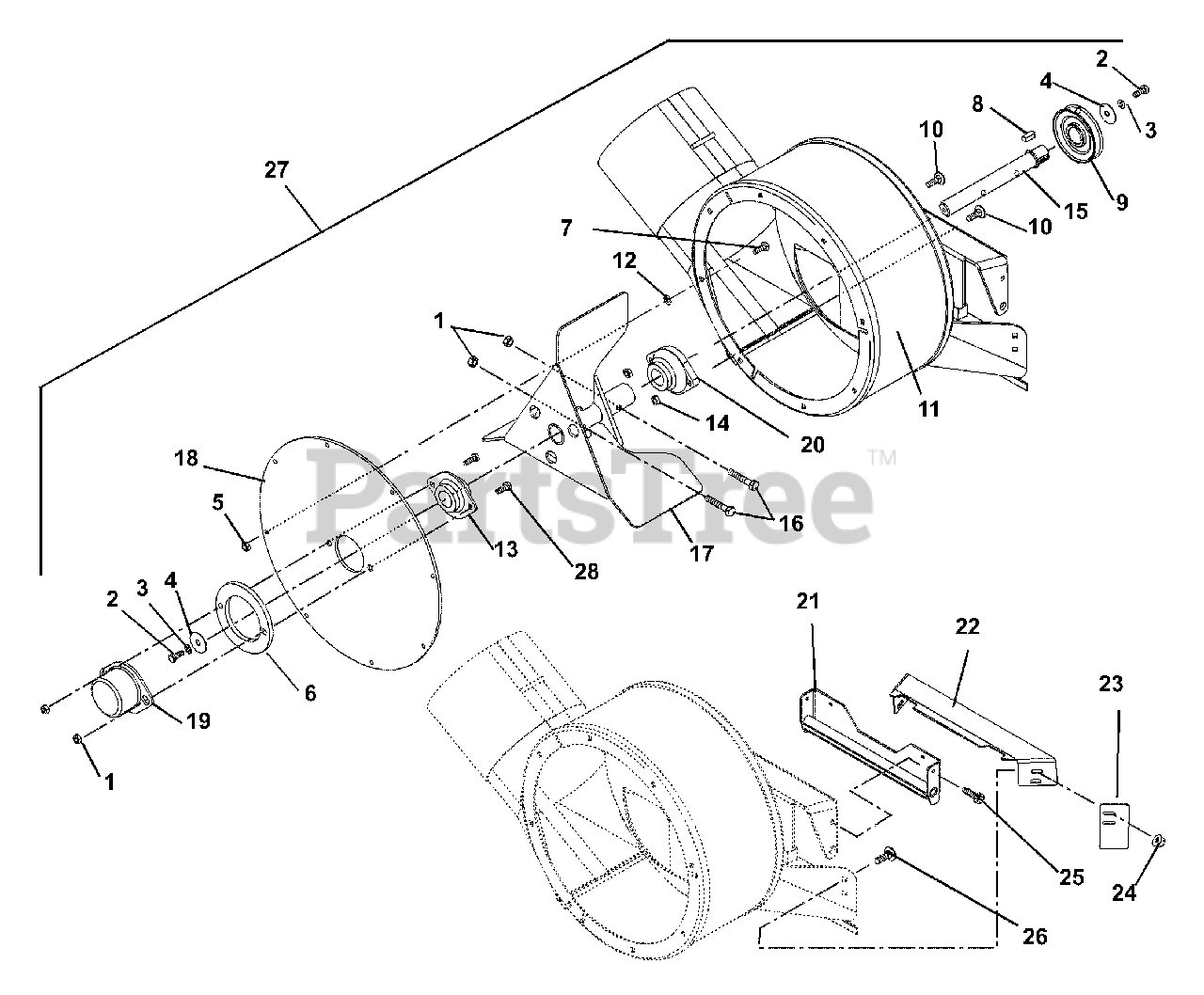

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

3

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

4

Gravely 06443900

WSHR-FL-STL .265X1.370X.179

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00297300

PLATE, RETAINER
(Superseded to 00297351)

$

$

Not available

7

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

8

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

9

Gravely 07300005

PLY-V 3.50X1.004 W/KEY

$81.99

$

Usually ships in 4-12 days

0

10

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 09228551

BLOWER HOUSING COMPLETE

$

$

Not available

12

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 10

0

13

Gravely 09228900

BEARING-2 BOLT X 1.00 SHAFT

$85.99

$

Usually ships in 4-12 days

0

14

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00269700

SHAFT, IMPELLER

$135.99

$

Usually ships in 4-12 days

0

16

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

17

Gravely 00362200

WMT, BAGGER IMPELLER

$

$

Not available

18

Gravely 09229351

COVER-BEARING SUPPORT

$92.99

$

Usually ships in 4-12 days

0

19

Gravely 03687400

COVER-BEARING

$42.99

$

Usually ships in 4-12 days

0

20

Gravely 05400002

BEARING, FL. W/SET SCR. 1.00ID

$68.99

$

Usually ships in 4-12 days

0

21

Gravely 09279751

WMT, BLOWER MOUNT

$50.99

$

Usually ships in 4-12 days

0

22

Gravely 09294251

GUARD-PUMP INLET-PM100 SERIES

$

$

Not available

23

Gravely 09263051

BAR - EXTENSION

$18.99

$

Usually ships in 4-12 days

0

24

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

25

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 59204800

ASSEMBLY, BLOWER HOUSING

$

$

Not available

28

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0
