892023 - Gravely Bagger for PM144Z, PM148Z, PM152Z (SN: 000101 & Above) Pulleys And Cover Parts Diagram

Bagger for PM144Z, PM148Z, PM152Z

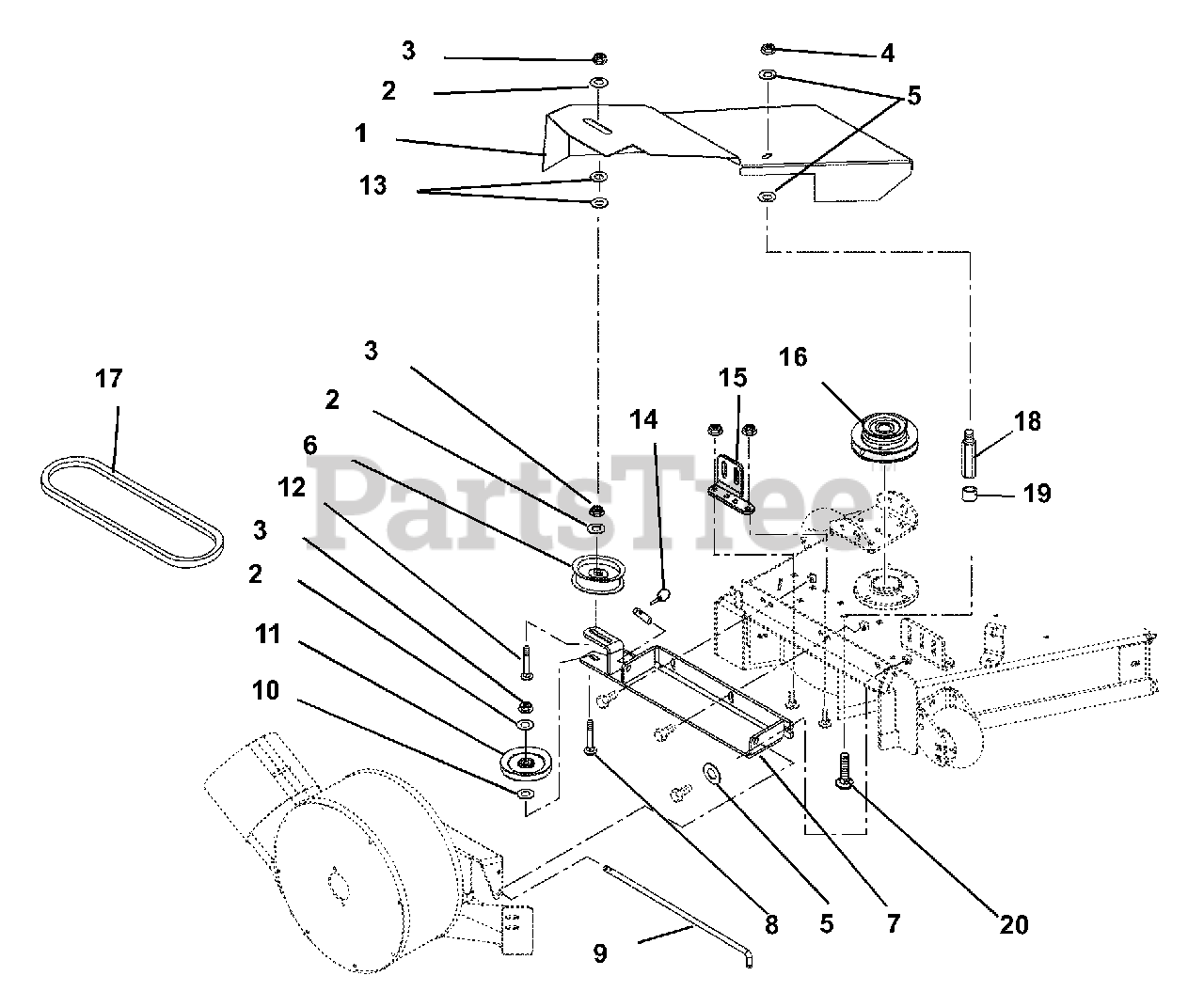

Pulleys And Cover Parts Diagram

  • Title

1

Gravely 09294051

Weldment, Belt Guard

$

$

Not available

2

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

6

Gravely 07324100

Idler Flanged 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 11

0

7

Gravely 09294451

Weldment, Pivot Mount 44,48,52

$

$

Not available

8

Gravely 06223800

Bolt-Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 09229800

Rod, Pivot

$39.99

$

Usually ships in 4-12 days

0

10

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07311400

Idler-V 4.00 x .38
(Superseded to 07300528)

$39.99

$

In Stock, only 3 left!

0

12

Gravely 06224400

Bolt-Round Head Square Neck .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06442400

Washer-Flat-Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, Qty 5

0

14

Gravely 07014500

Pin-Klik 1.00 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 09294351

Bracket, 44- & 48-Inch Mower Deck Mounting

Note: (For use with 3/8 inch deck chain hardware)

$

$

Not available

15

Gravely 00190351

Bracket, 44- & 48-Inch Mower Deck Mounting

Note: (For use with 1/2 inch deck chain hardware)

$

$

Not available

15

Gravely 09294151

Bracket, 52-Inch Deck Mounting

Note: (For use with 3/8 inch deck chain hardware)

$

$

Not available

15

Gravely 00176851

Bracket , 52-Inch Mower Deck Mounting

Note: (For use with 1/2 inch deck chain hardware)

$

$

Not available

16

Gravely 09261500

Pulley, Double V 3.50/5.25 Diameter

$161.99

$

Usually ships in 4-12 days

0

17

Gravely 07239200

V-Belt, 44- & 48-Inch Mower Deck

$42.99

$

In Stock, only 1 left!

0

17

Gravely 07216300

V-Belt 52-Inch Mower Deck

$40.99

$

In Stock, only 1 left!

0

18

Gravely 00271200

Standoff, 2.75 x 5/16-18

$31.99

$

In Stock, only 2 left!

0

19

Gravely 03009200

Spacer, .380 x .503 x .281

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06216100

Bolt, Round-Head-Square-Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0
