892025 - Ariens Compact-Z Bagger (SN: 000101 & Above) Bagger Cover Assembly Parts Diagram

Compact-Z Bagger

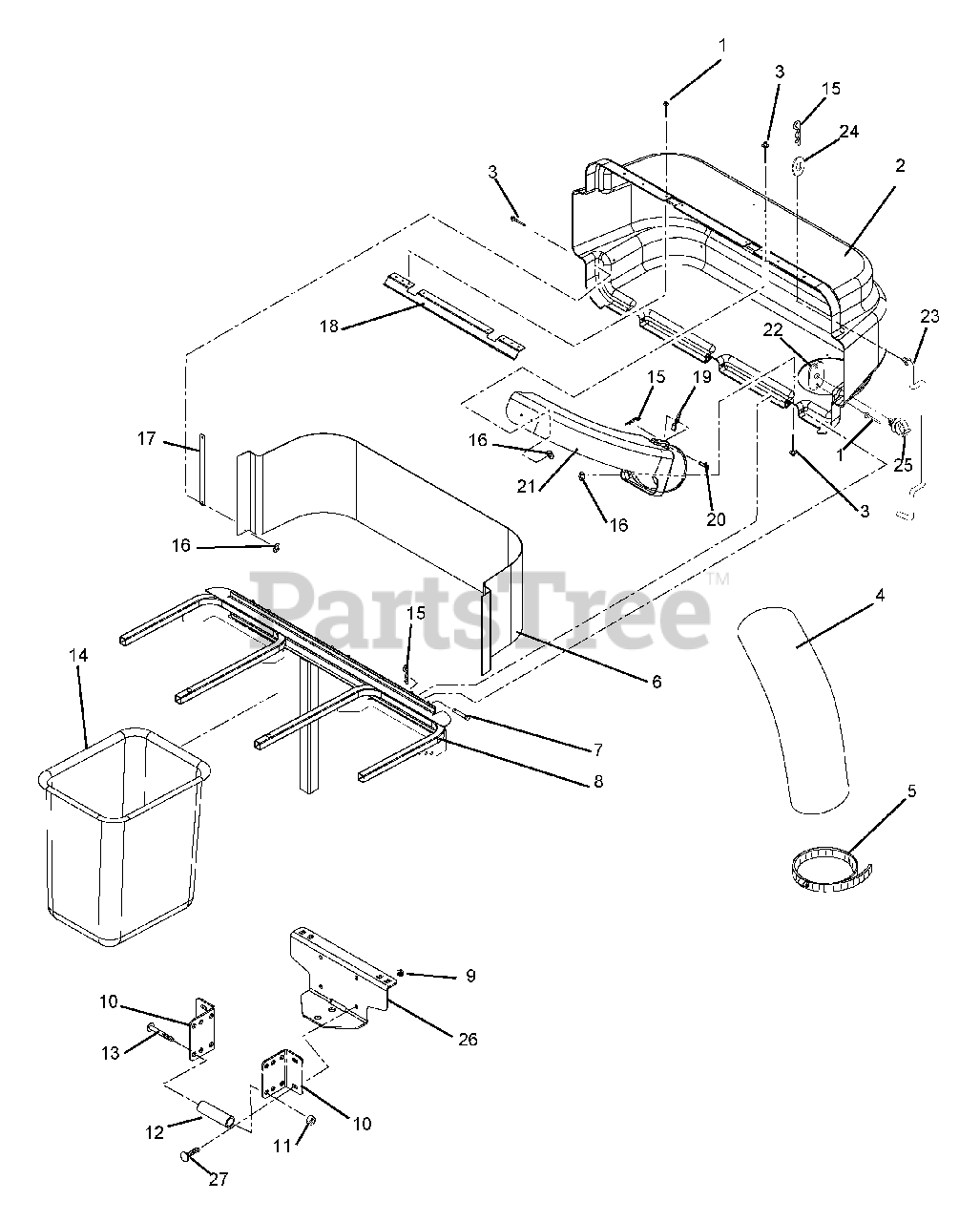

Bagger Cover Assembly Parts Diagram

  • Title

1

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

2

Ariens 51511800

BAGGER COVER W/DECAL

$339.99

$

Usually ships in 4-12 days

0

3

Ariens 06807600

RVT-POP .187X.375

$

$

Not available

4

Ariens 01585800

HOSE 7 X 45
(Superseded to 04222900)

$113.99

$

In Stock, only 1 left!

0

5

Ariens 02770200

CLAMP, 7" TOOL-LESS HOSE

$45.99

$

Usually ships in 4-12 days

0

6

Ariens 00166900

SCREEN, BAGGER

$39.99

$

Usually ships in 4-12 days

0

7

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 2 left!

0

8

Ariens 00166751

WMT,BAGGER FRAME

$355.99

$

Usually ships in 4-12 days

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 00200051

BKT,BAGGER MOUNT

$46.99

$

Usually ships in 4-12 days

0

11

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

Note: (039598 - Gravely Part Number)

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, Qty 10

0

14

Ariens 02724400

GRASS BAGGER BASKET

Note: (038328 - Gravely Part Number)

$79.99

$

In Stock, only 2 left!

0

15

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

16

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

17

Ariens 00174851

STRAP,COVER

$13.99

$

Usually ships in 4-12 days

0

18

Ariens 00167951

LATCH,COVER
(Superseded to 00450851)

$51.99

$

Usually ships in 4-12 days

0

19

Ariens 00168300

INDICATOR, FLOW

$24.99

$

In Stock, only 1 left!

0

20

Ariens 06815300

PIN-CLEV .309 X 1.625 YWZC

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 00165900

BOOT,UPPER

$121.99

$

Usually ships in 4-12 days

0

22

Ariens 00294400

PLATE, ROD CLIP

$13.99

$

In Stock, only 1 left!

0

23

Ariens 00292600

PROP-ROD, BAGGER

$58.99

$

Usually ships in 4-12 days

0

24

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07534100

CLIP-.38

$9.49

$

In Stock, only 1 left!

0

26

Ariens 59206400

ASSM, TRAILER HITCH

$

$

Not available

27

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0
