892025 - Gravely 44", 48" Deck Grass Bagger CZ (SN: 000101 & Above) Bagger Cover Assembly Parts Diagram

44", 48" Deck Grass Bagger CZ

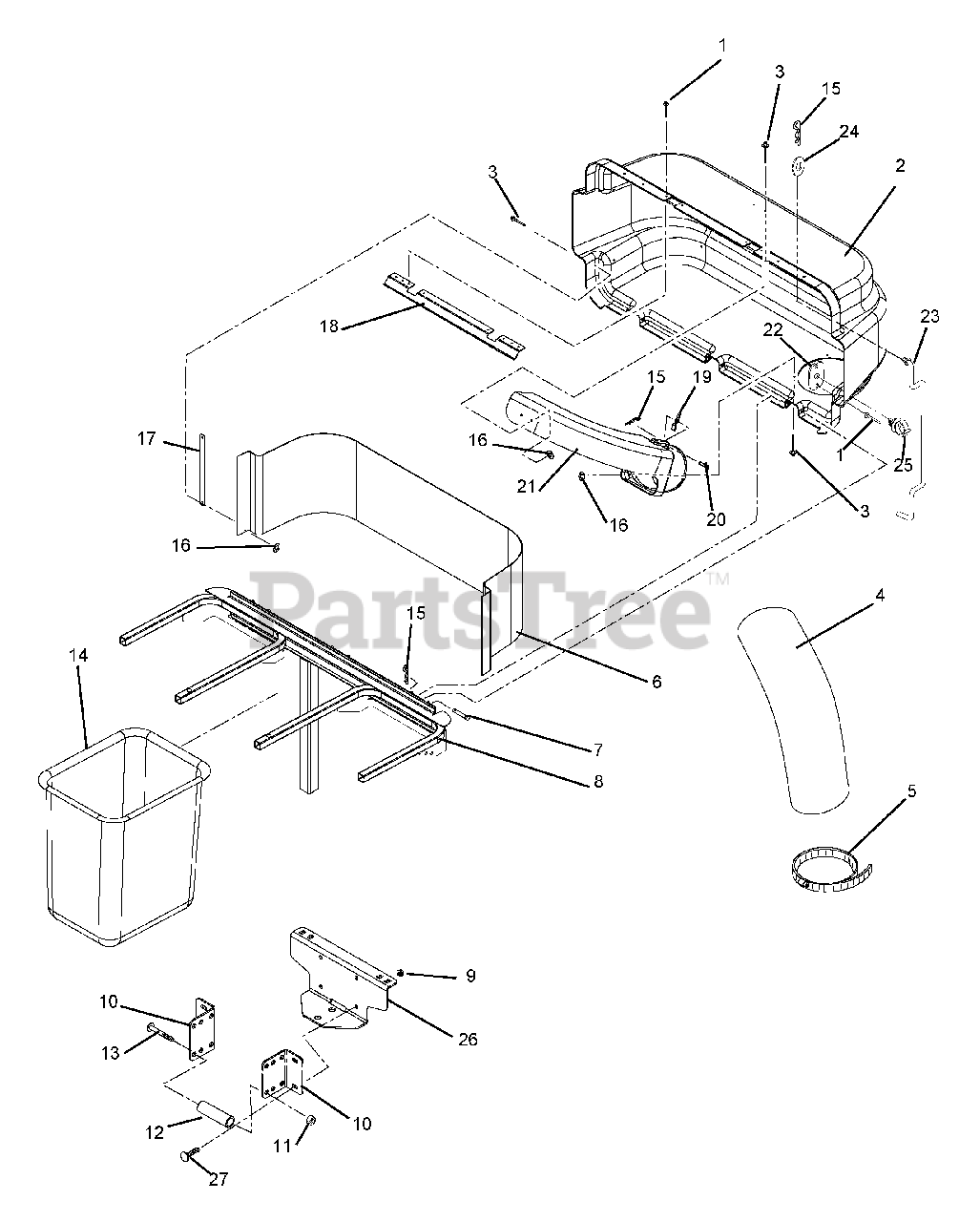

Bagger Cover Assembly Parts Diagram

  • Title

1

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 11

0

2

Gravely 51511800

Cover, Bagger with Decal

$339.99

$

Usually ships in 4-12 days

0

3

Gravely 06807600

Rivet-Pop .187 x .375

$

$

Not available

4

Gravely 01585800

Hose 7 x 45
(Superseded to 04222900)

$113.99

$

In Stock, only 1 left!

0

5

Gravely 02770200

Clamp, 7" Tool-less Hose

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 00166900

Screen, Bagger

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 02747500

Pin-Clevis .368/.373 x 3.25

$5.99

$

In Stock, only 2 left!

0

8

Gravely 00166751

Weldment, Bagger Frame

$355.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00200051

Bracket, Bagger Mount

$46.99

$

Usually ships in 4-12 days

0

11

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 039598

Spacer, Pivot
(Superseded to 03433800)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, Qty 10

0

14

Gravely 02724400

Grass Bagger Basket

$79.99

$

In Stock, only 2 left!

0

Gravely 038328

Grass Bagger Basket
(Superseded to 02724400)

Note: (Gravely Part Number)

$79.99

$

In Stock, only 2 left!

0

15

Gravely 06714800

Pin-Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

16

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 00174851

Strap, Cover

$13.99

$

Usually ships in 4-12 days

0

18

Gravely 00167951

Latch, Cover
(Superseded to 00450851)

$51.99

$

Usually ships in 4-12 days

0

19

Gravely 00168300

Indicator, Flow

$24.99

$

In Stock, only 1 left!

0

20

Gravely 06815300

Pin-Clevis .31 x 2.62 Grade 5

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 00165900

Boot, Upper

$121.99

$

Usually ships in 4-12 days

0

22

Gravely 00294400

Plate, Rod Clip

$13.99

$

In Stock, only 1 left!

0

23

Gravely 00292600

Prop-Rod, Bagger

$58.99

$

Usually ships in 4-12 days

0

24

Gravely 06436200

Washer-Flat-Steel .046 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07534100

Clip .38

$9.49

$

In Stock, only 1 left!

0

26

Gravely 59206400

Trailer Hitch with Decal

$

$

Not available

27

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0
