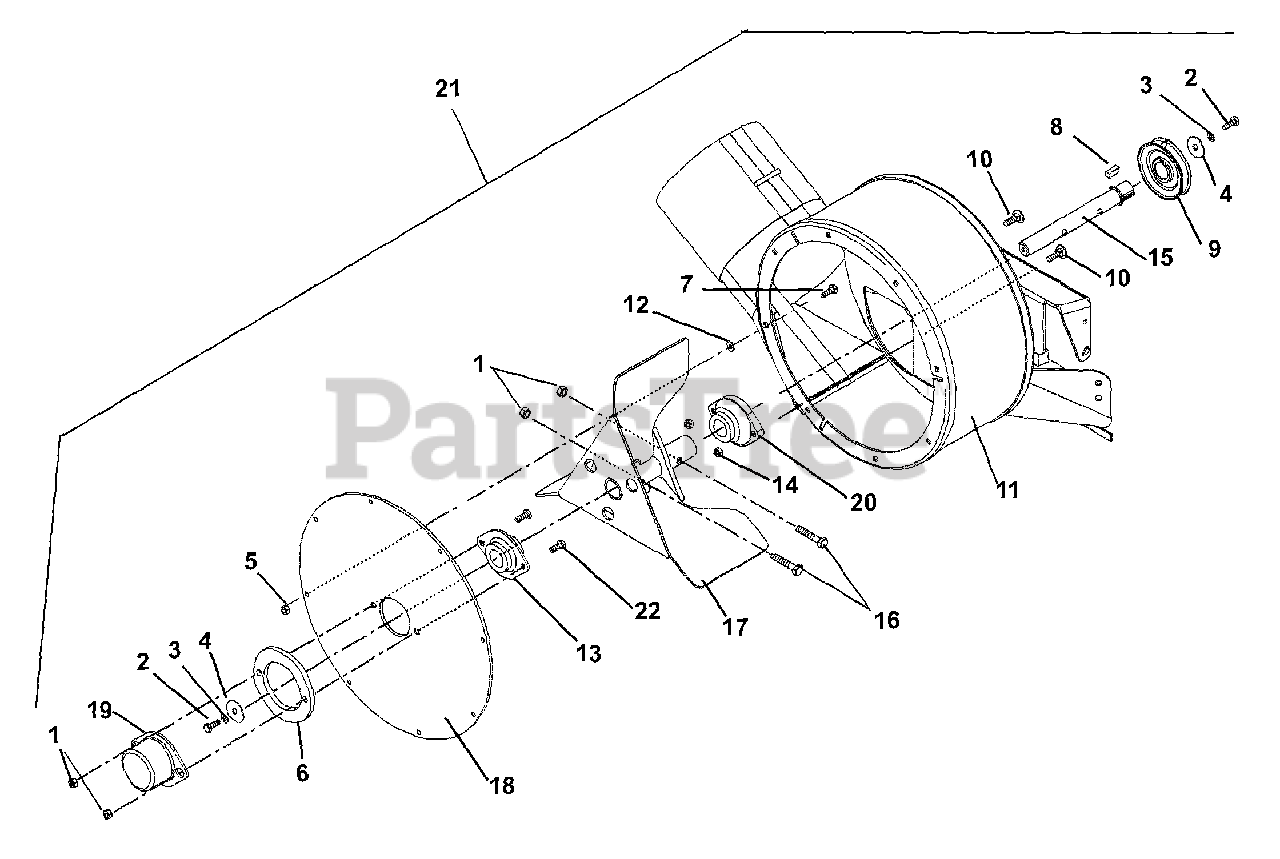

892026 - Gravely 50" Bagger (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

50" Bagger

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, only 3 left!

0

4

Gravely 06443900

Washer-Flat-Steel .265 x 1.370 x .179

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00297300

Plate, Retainer
(Superseded to 00297351)

$

$

Not available

7

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06611200

Key-Square .25 x .25 x 1.00

$3.49

$

In Stock, Qty 10

0

9

Gravely 07300005

Pulley-V 3.50 x 1.004 w/key

$81.99

$

Usually ships in 4-12 days

0

10

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 09228551

Weldment, Blower Housing

$

$

Not available

12

Gravely 07027600

Nut, Push .25 x .50

$2.49

$

In Stock, only 4 left!

0

13

Gravely 09228900

Bearing-2 Bolt x 1.00 Shaft

$85.99

$

Usually ships in 4-12 days

0

14

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00269700

Shaft-Impeller

$135.99

$

Usually ships in 4-12 days

0

16

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 00362200

Weldment, Bagger Impeller

$

$

Not available

18

Gravely 09229351

Cover-Bearing Support

$92.99

$

Usually ships in 4-12 days

0

19

Gravely 03687400

Cover-Bearing

$42.99

$

Usually ships in 4-12 days

0

20

Gravely 05400002

Bearing, Flange w/Set Screw 1.00 ID

$68.99

$

Usually ships in 4-12 days

0

21

Gravely 59204800

Assembly, Blower Housing

$

$

Not available

22

Gravely 05946900

Bolt, Hex .31-18 x 1.0
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0
