892026 - Gravely 50" Bagger (SN: 000101 & Above) Pulleys And Covers Parts Diagram

50" Bagger

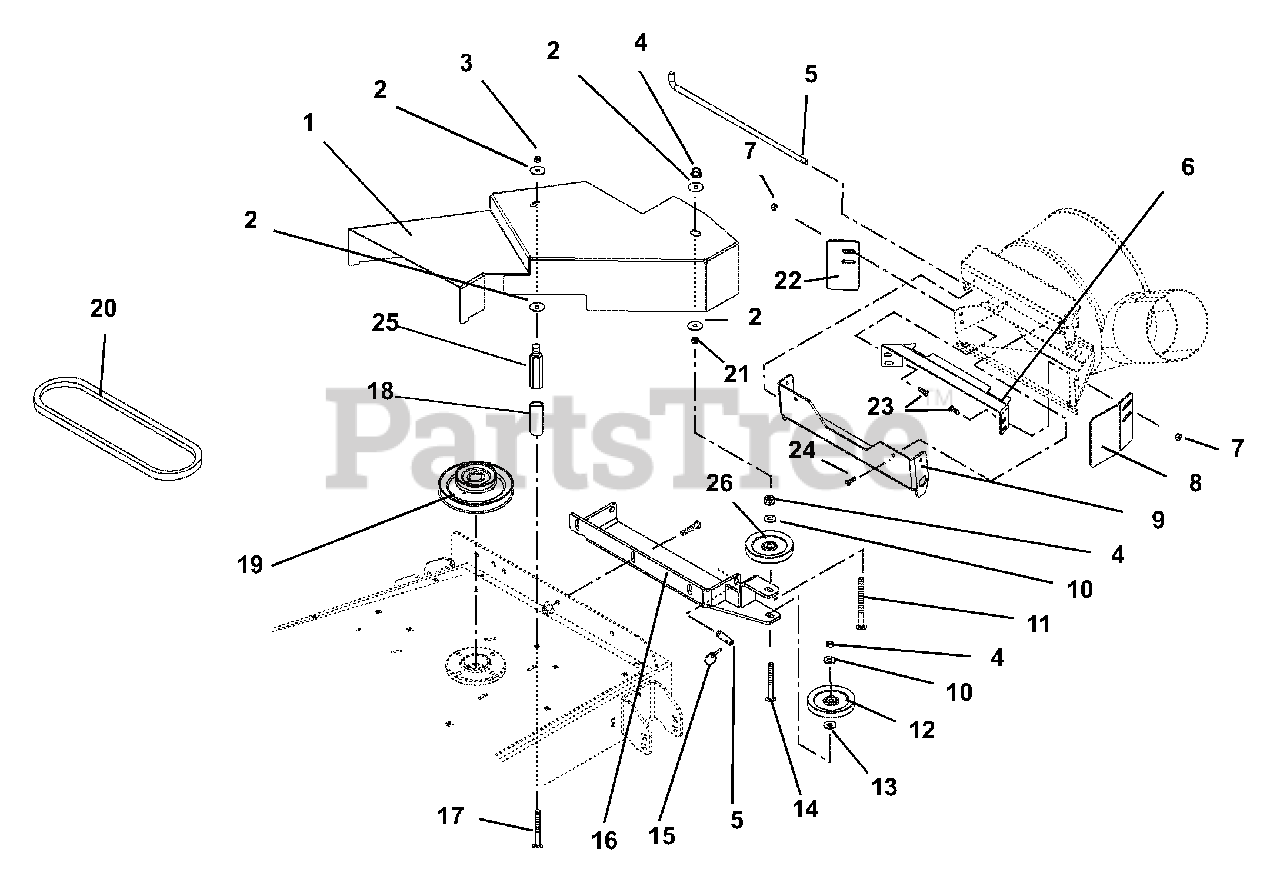

Pulleys And Covers Parts Diagram

  • Title

1

Gravely 09277053

WMT, BELT GUARD

$

$

Not available

2

Gravely 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 13

0

3

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

4

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 09229800

ROD-PIVOT

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 09276751

GUARD - PUMP INLET

$

$

Not available

7

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

8

Gravely 09276651

BRACKET - FORMED

$

$

Not available

9

Gravely 09279700

WMT. BLOWER MOUNT

$

$

Not available

10

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

13

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

15

Gravely 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$6.49

$

Usually ships in 4-12 days

0

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

Note: (Gravely Part Number)

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 09276951

WELDMENT, PIVOT MOUNT BRACKET

$

$

Not available

17

Gravely 06225800

BLT-RDHDSQNKFT .31-18X2.0 G5YZ

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 02752800

TUBE .380X.625X1.26

$

$

Not available

19

Gravely 09261500

PULLEY, DOUBLE V 3.50/5.25 DIA

$164.99

$

Usually ships in 4-12 days

0

20

Gravely 07240800

V-BELT, 4L-WRAPPED

Note: V-Belt, 48-780 78" Outer Circle)

$39.99

$

Usually ships in 4-12 days

0

21

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09263051

BAR - EXTENSION

$18.99

$

Usually ships in 4-12 days

0

23

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 00271200

STANDOFF, 2.75 X 5/16-18

$35.99

$

In Stock, only 2 left!

0

26

Gravely 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$40.99

$

In Stock, Qty 20+

0
