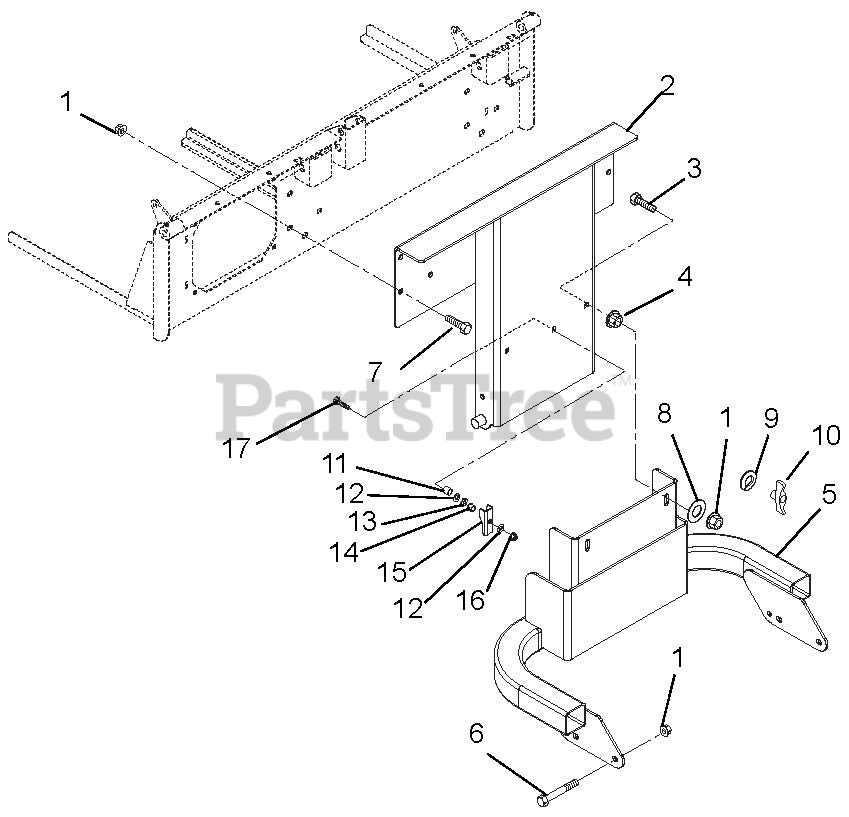

892029 - Gravely 100 Series Bagger (SN: 001000 & Above) Bagger Mount Parts Diagram

100 Series Bagger

Bagger Mount Parts Diagram

  • Title

1

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 00460851

Upper Mount, 2-Bag

$128.99

$

Usually ships in 4-12 days

0

3

Gravely 06223800

Bolt, Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 06534900

Nut, Spinlock Flange .375
(Superseded to 06500735)

$1.99

$

In Stock, Qty 9

0

5

Gravely 00455651

Mount, Bagger 100 Series

$

$

Not available

6

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06306500

Washer, Locking .375 x .115 Heavy
(Superseded to 06300120)

Note: (Tool-less hardware option)

$4.99

$

In Stock, Qty 14

0

10

Gravely 07019300

Nut, Wing .38-16
(Superseded to 07500109)

Note: (Tool-less hardware option)

$5.49

$

In Stock, only 2 left!

0

11

Gravely 00186400

Spacer .41 x .75 x .88

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 12

0

13

Gravely 03704900

Wave Washer .640 x .875 x .125 Free Height

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.99

$

In Stock, only 2 left!

0

15

Gravely 00610751

Latch, Bagger Upper Mount

$18.99

$

Usually ships in 4-12 days

0

16

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, only 3 left!

0

17

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, Qty 9

0
