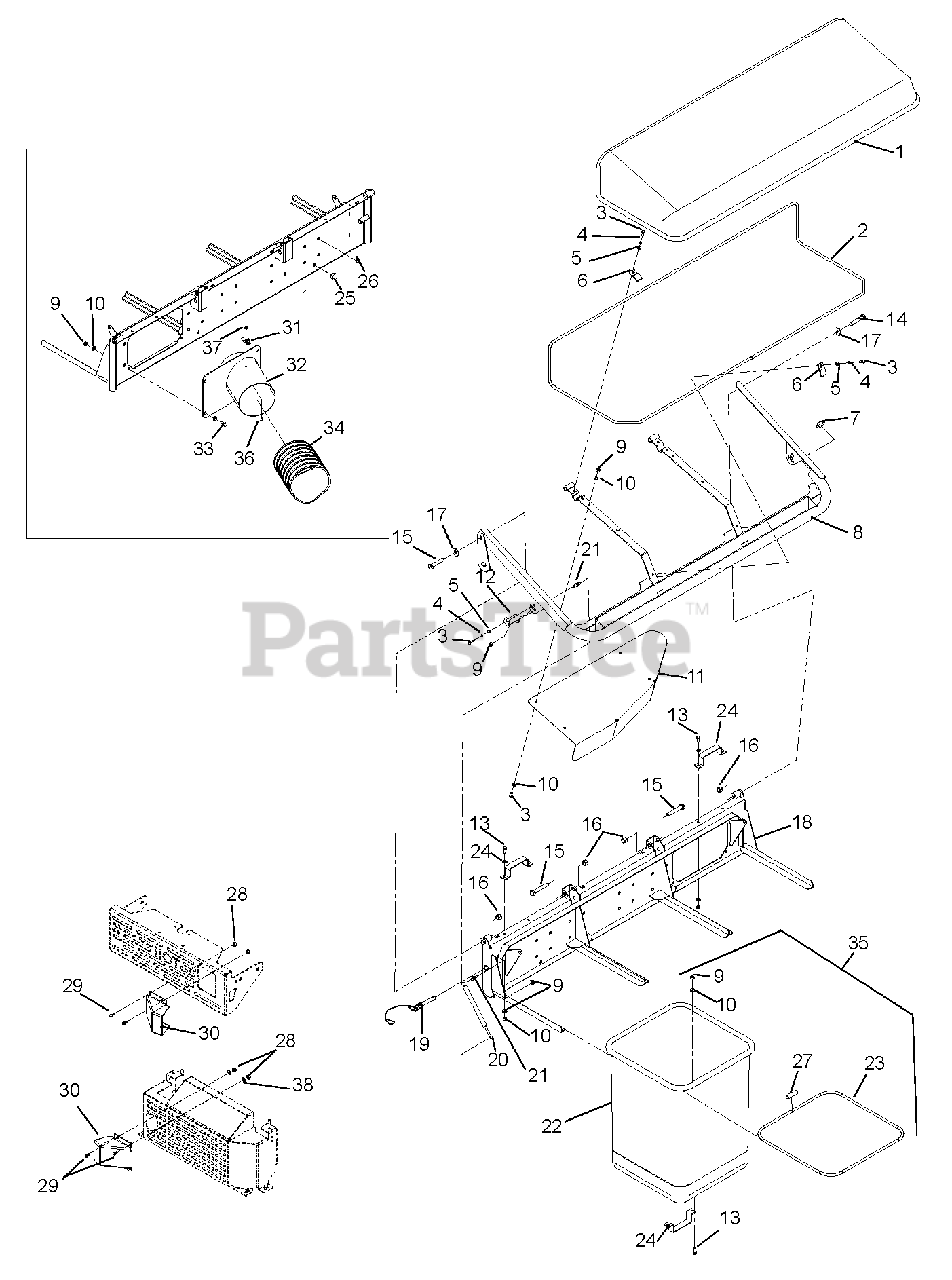

892030 - Gravely Grass Collection System 200 Series Bagger (SN: 002000 & Above) Bags And Cover Parts Diagram

Grass Collection System 200 Series Bagger

Bags And Cover Parts Diagram

  • Title

1

Gravely 00459001

3-Bag Fabric Cover with J-Strip

$277.99

$

Usually ships in 4-12 days

0

2

Gravely 00459002

Air Dome Frame .38 Rod

$166.99

$

Usually ships in 4-12 days

0

3

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

4

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

5

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

6

Gravely 00458903

Bracket, Mount Single Hole

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 00458904

Hole Plug, Round

$

$

Not available

8

Gravely 00459005

Cap Support – 3 Bag

$661.99

$

Usually ships in 4-12 days

0

9

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06437200

Washer, Flat, Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00459003

3-Bag Deflector

$239.99

$

Usually ships in 4-12 days

0

12

Gravely 00458907

Bracket, Gas Cylinder Mount

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05966600

Bolt, Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

15

Gravely 05959900

Bolt, Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$5.49

$

In Stock, Qty 8

0

16

Gravely 06540600

Nut, Locking Nylon .50-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095 YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

18

Gravely 00459004

3-Bag Support Mount

$562.99

$

Usually ships in 4-12 days

0

19

Gravely 00458909

Detent Pin with Lanyard 1/2 x 2-.50

$37.99

$

Usually ships in 4-12 days

0

20

Gravely 00458910

Gas Cylinder

$99.99

$

Usually ships in 4-12 days

0

21

Gravely 00458911

Ball Stud

$16.99

$

Usually ships in 4-12 days

0

22

Gravely 00458912

Cloth Bag

$175.99

$

Usually ships in 4-12 days

0

23

Gravely 00458913

Grass Bag Frame

$66.99

$

Usually ships in 4-12 days

0

24

Gravely 00458914

Bag Handle

$23.99

$

Usually ships in 4-12 days

0

25

Gravely 00458915

Rubber Bumper

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 00458916

Hole Plug 7/16

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 00458917

Tube Connector

$5.49

$

Usually ships in 4-12 days

0

28

Gravely 06529700

Nut, Locking Center .25-20 (200 Series Vertical Shaft)
(Superseded to 06500812)

Note: (200 Series Vertical Shaft)

$0.99

$

In Stock, Qty 20+

0

Gravely 06529700

Nut, Locking Center (200 Series Diesel)
(Superseded to 06500812)

Note: (200 Series Diesel)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5 (200 Series Vertical Shaft)
(Superseded to 05901705)

Note: (200 Series Vertical Shaft)

$0.99

$

In Stock, only 3 left!

0

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5 (200 Series Diesel)
(Superseded to 05901705)

Note: (200 Series Diesel)

$0.99

$

In Stock, only 3 left!

0

30

Gravely 00610551

Deflector, Exhaust

$44.99

$

Usually ships in 4-12 days

0

31

Gravely 07000026

Thumb Latch, A-10 Quick Release

$9.99

$

In Stock, only 2 left!

0

32

Gravely 00461251

Inlet Adapter 200 Series
(Superseded to 59207602)

$98.99

$

Usually ships in 4-12 days

0

33

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

34

Gravely 04588400

Hose, Bagger – 49"

$160.99

$

Usually ships in 4-12 days

0

35

Gravely 59207600

Bag Assembly

$224.99

$

Usually ships in 4-12 days

0

36

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06435800

Washer, Flat Steel .312 x .734 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0
