892031 - Gravely Bagger Peco Hopper-CCS (SN: 000101 - 000999) Blower Housing Assembly Parts Diagram

Bagger Peco Hopper-CCS

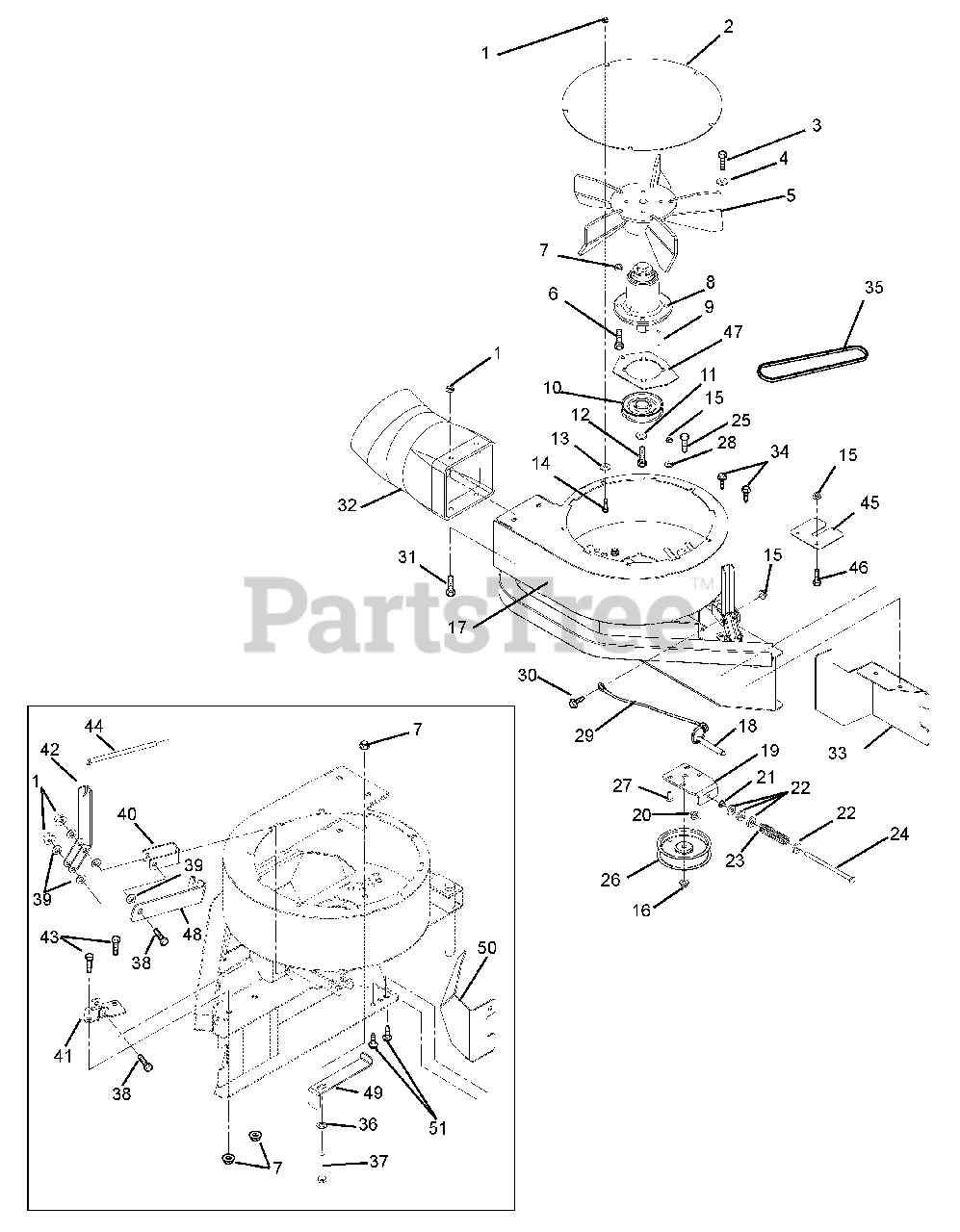

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 00451951

COVER, BLOWER-BLACK

$37.99

$

Usually ships in 4-12 days

0

3

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

5

Gravely 00468200

WMT,IMPELLER FAN

$254.99

$

Usually ships in 4-12 days

0

6

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 58803600

MAINTENANCE FREE SPINDLE ASSY

$286.99

$

In Stock, Qty 7

0

9

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

10

Gravely 04903900

WLDM'T, PLY-V 3.50X1.004 W/KEY
(Superseded to 07333467)

$72.99

$

In Stock, only 2 left!

0

11

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$4.99

$

In Stock, Qty 9

0

12

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06514900

NUT-PUSH .312

$1.49

$

In Stock, only 4 left!

0

14

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 00469851

WMT - BLOWER

$637.99

$

Usually ships in 4-12 days

0

18

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.99

$

In Stock, Qty 13

0

19

Gravely 00168100

BRACKET, ADJUSTABLE IDLER

$41.99

$

Usually ships in 4-12 days

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.99

$

In Stock, Qty 19

0

23

Gravely 08312100

SG-COMP .092X.77X3.13 WLD 36

$12.99

$

In Stock, Qty 8

0

24

Gravely 05957600

BLT-HEX .31-18X5.50 GR5 YWZC
(Superseded to 05901926)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 07327100

PULLEY, IDLER 4.00

$39.99

$

In Stock, Qty 9

0

27

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 05513400

BSHG-FLG .265X.437X.250X.750

$2.99

$

In Stock, only 2 left!

0

29

Gravely 06927100

CBL,HOOD

$15.99

$

In Stock, only 1 left!

0

30

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 00452200

ADAPTER, HOSE
(Superseded to 04714700)

$165.99

$

In Stock, only 2 left!

0

33

Gravely 00469551

BAFFLE - BLOWER - 52"

$53.99

$

Usually ships in 4-12 days

0

Gravely 00469651

BAFFLE - BLOWER - 60"

$

$

Not available

34

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 07239700

V-BELT, 4L-RAW EDGE

$39.99

$

In Stock, only 4 left!

0

Gravely 07236200

V-BELT, HA-RAW EDGE

$36.99

$

In Stock, only 4 left!

0

Gravely 07213200

V-BELT, 4L-RAW EDGE

$46.99

$

Usually ships in 4-12 days

0

36

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

38

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$2.49

$

In Stock, Qty 16

0

39

Gravely 06433600

WSHR-FL-NY .375X.75X.060

$1.49

$

In Stock, Qty 20+

0

40

Gravely 00474251

LINK - IDLER RELEASE

$20.99

$

Usually ships in 4-12 days

0

41

Gravely 00474451

MOUNT - IDLER RELEASE LEVER

$20.99

$

Usually ships in 4-12 days

0

42

Gravely 00474351

LEVER - IDLER RELEASE

$28.99

$

Usually ships in 4-12 days

0

43

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 11

0

44

Gravely 05957600

BLT-HEX .31-18X5.50 GR5 YWZC
(Superseded to 05901926)

$4.99

$

Usually ships in 4-12 days

0

45

Gravely 00483851

FINGER GUARD

$

$

Not available

Gravely 00491851

GUARD - FINGER

$13.99

$

Usually ships in 4-12 days

0

46

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 00583851

PLATE-BEARING HOUSING SUPPORT

$24.99

$

Usually ships in 4-12 days

0

48

Gravely 00952451

LOCK - IDLER RELEASE LEVER

$12.99

$

Usually ships in 4-12 days

0

49

Gravely 00956151

FINGER - BELT

$14.99

$

Usually ships in 4-12 days

0

50

Gravely 00887651

BAFFLE-BLOWER-REAR - 52/60/66
(Superseded to 59209500)

$62.99

$

Usually ships in 4-12 days

0

Gravely 00945151

BAFFLE - BLOWER - REAR - 72"

$

$

Not available

51

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0
