892040 - Gravely Grass Collection System (SN: 000101 & Above)

Grass Collection System

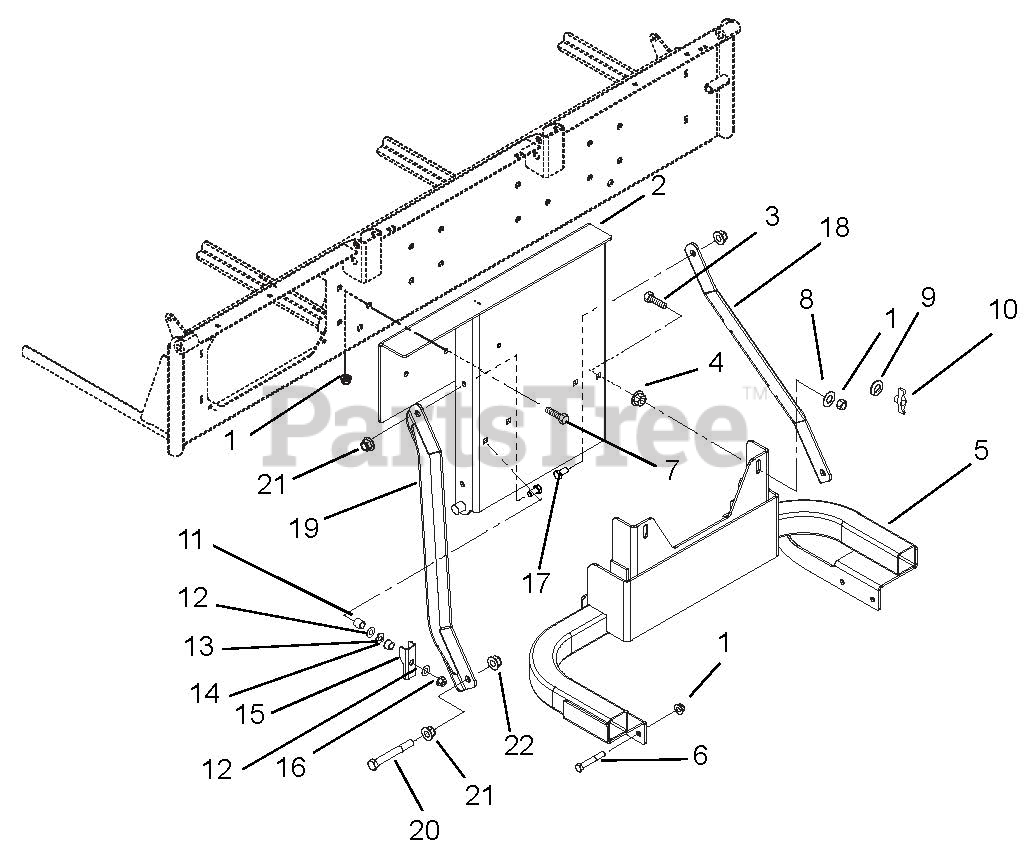

892040 - Gravely Grass Collection System (SN: 000101 & Above) > Parts Diagrams (5) > Bagger Mount

  • Title
06545500

1

Nut, .38-16 Nyloc Flange

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

00460951

2

Upper Mount, 3-Bag

Part# 00460951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $190.56

06223800

3

Bolt, Round Head Square Neck .38-16 x 1.75 Grade 5

Part# 06223800

OEM Warranty Repair Part for Gravely

Not available

06534900

4

Nut, Spinlock Flange .375

Part# 06534900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03900951

5

Mount, Rear Bagger

Part# 03900951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $275.20

05958400

6

Bolt, Hex .38-16 x 2.50 Grade 5

Part# 05958400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05948700

7

Bolt, Hex .38-16 x 1.00 Grade 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06400006

8

Washer, Flat Steel .406 x 1.50 x .245

Part# 06400006

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06306500

9

Washer, Locking .375 x .115 Heavy

Part# 06306500

Note: (Tool-less hardware option)

OEM Warranty Repair Part for Gravely

Not available

07019300

10

Nut, Wing .38-16

Part# 07019300 (Superseded to 07500109)

Note: (Tool-less hardware option)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.47

00186400

11

Spacer .41 x .75 x .88

Part# 00186400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

06435900

12

Washer, Flat Steel .438 x 1.00 x .083

Part# 06435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03704900

13

Wave Washer .640 x .875 x .125 Free Height

Part# 03704900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05508900

14

Bushing, Sleeve .377 x .624 x .235

Part# 05508900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

00610751

15

Latch, Bagger Upper Mount

Part# 00610751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.05

06542000

16

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05947100

17

Bolt, .50-13 x 1.00 Hex

Part# 05947100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03970051

18

Weldment, Support, Bagger, LH

Part# 03970051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $34.83

03970151

19

Weldment, Support, Bagger, RH

Part# 03970151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.19

05961900

20

Hex Bolt .50-13 x 4.00

Part# 05961900

OEM Warranty Repair Part for Gravely

Not available

06500010

21

Locking Nut .50-13

Part# 06500010

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06543300

22

Flange Nut .50-13

Part# 06543300

OEM Warranty Repair Part for Gravely

Not available
