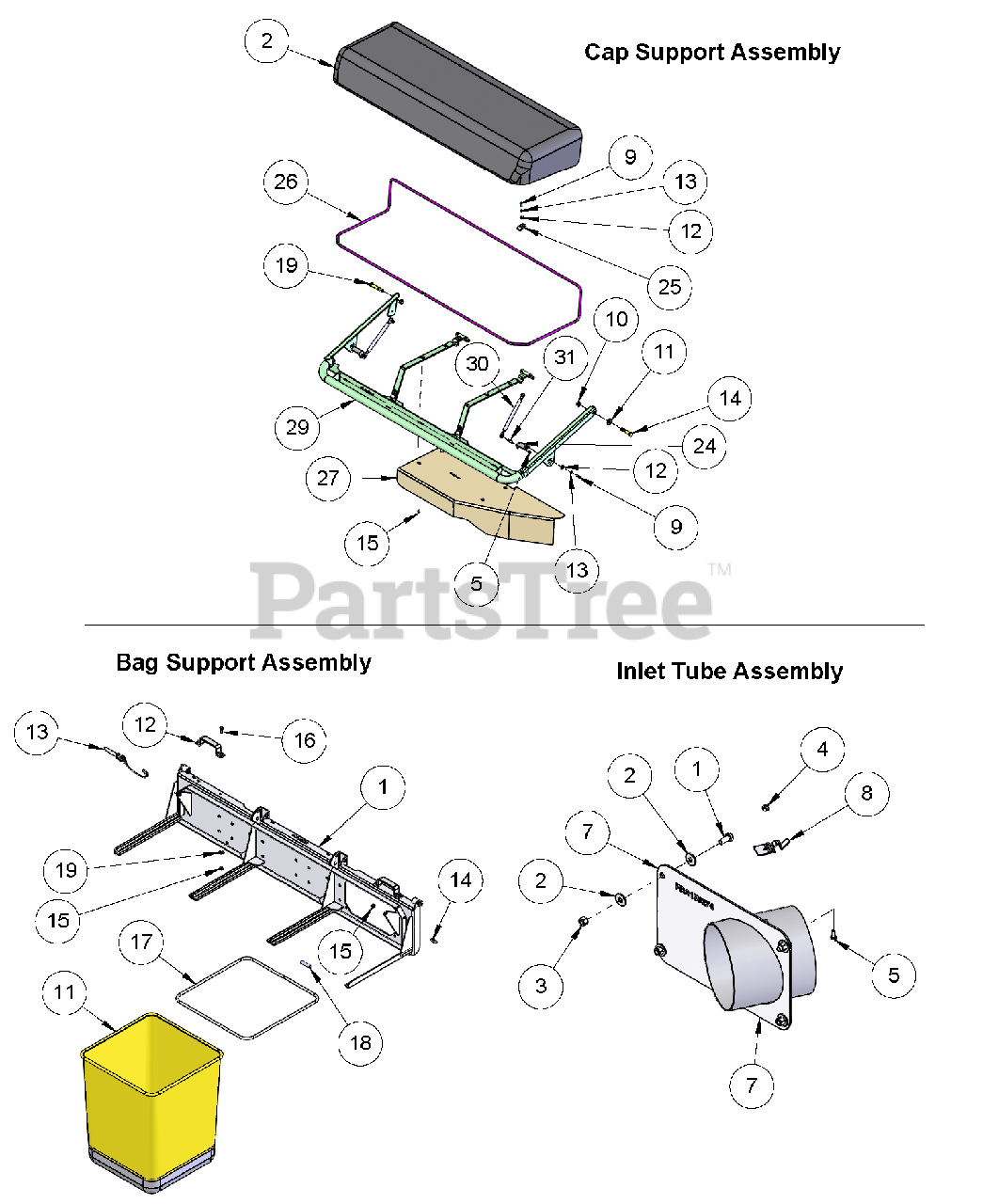

892043 - Ariens Pro Series 3-Bag Bagger for 60" and 66" Decks (SN: 000101 & Above) > Parts Diagrams (6) > 3 Bag Catcher Parts List - Pro-Series

CLOTH BAG

Part# 00458912

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

3 BAG FABRIC COVER W/J-STRIP

Part# 00459001

Note: (3-Bag) Extended

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

HOLE PLUG-ROUND

Part# 00458904

OEM Warranty Repair Part for Ariens

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809) 

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

DETENT PIN W/LANYARD-1/2X2-1/2

Part# 00458909

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

RUBBER BUMPER

Part# 00458915

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

@BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

OEM Warranty Repair Part for Ariens

@NUT-LK-NYL .50-13 YWZC

Part# 06540600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@WSHR-FL-STL.531X1.06X.095YWZC

Part# 06441900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@WSHR-LK .25X.062 REG YWZC

Part# 06308400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@BLT-HEX .50-13X2.50 GR5 YWZC

Part# 05966600

OEM Warranty Repair Part for Ariens

@BLT-HEX .25-20X.50 GR5 YWZC

Part# 05947900

OEM Warranty Repair Part for Ariens

@SCR-MCH 10-24X.50 HWH YWZC

Part# 06116700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@NUT-LK-NYL 10-24 W/INSRT YWZC

Part# 06536000

OEM Warranty Repair Part for Ariens

SPRING CLIP

Part# 21700600

OEM Warranty Repair Part for Ariens

@BLT-HEX .50-13X3.00 GR5 YWZC

Part# 05959900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

TUBE, PLASTIC 1/2" OD X 3/8 ID

Part# 27100100

OEM Warranty Repair Part for Ariens

BAG HANDLE

Part# 00458914

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

INLET TUBE (SHORT)

Part# 27100600

Note: (Short)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

GRASS BAG FRAME

Part# 00458913

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

BKT,GAS CYLINDER MOUNT

Part# 00458907

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

BKT,MOUNT-SINGLE HOLE

Part# 00458903

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

AIR DOME FRAME 3/8 ROD

Part# 00459002

Note: (3-Bag)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

3-BAG DEFLECTOR

Part# 00459003

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

3-BAG SUPPORT MOUNT

Part# 00459004

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

2-BAG CAP SUPPORT(OFFSET SUPT)

Part# 00458905

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

GAS CYLINDER

Part# 00458910

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

BALL STUD

Part# 00458911

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days
