892043 - Ariens Pro Series 3-Bag Bagger for 60" and 66" Decks (SN: 000101 & Above)

Pro Series 3-Bag Bagger for 60" and 66" Decks

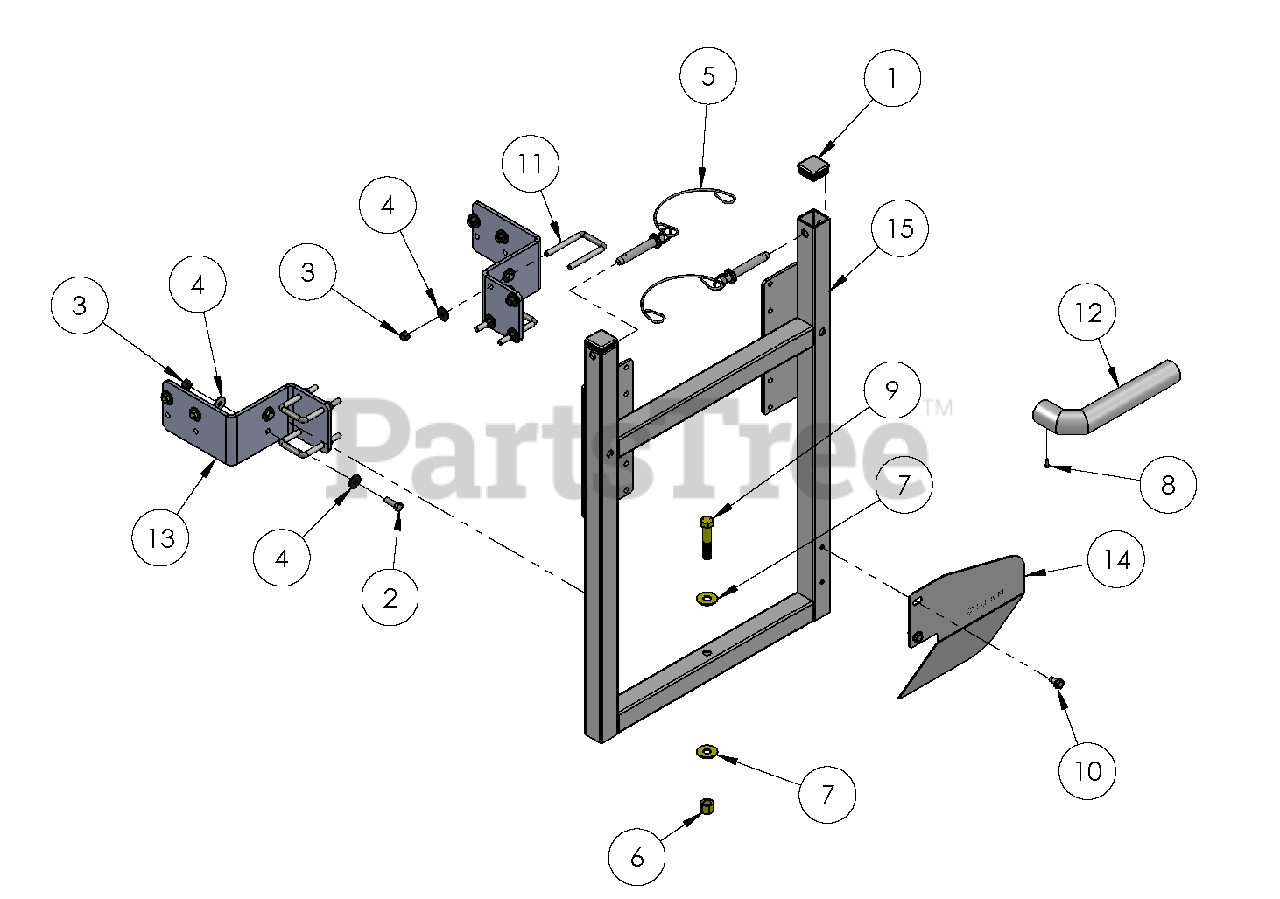

892043 - Ariens Pro Series 3-Bag Bagger for 60" and 66" Decks (SN: 000101 & Above) > Parts Diagrams (6) > Pro Series 3 Bag Catcher System Installation Leg Set Parts List

  • Title
21700100

1

PLUG, SQ. HOLE

Part# 21700100

OEM Warranty Repair Part for Ariens

Not available

05946900

2

@BLT-HEX .31-18X1.00 GR5 YWZC

Part# 05946900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06545400

3

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400

OEM Warranty Repair Part for Ariens

Not available

06437200

4

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00458909

5

DETENT PIN W/LANYARD-1/2X2-1/2

Part# 00458909

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 7 business days

Your price: $33.48

06540600

6

@NUT-LK-NYL .50-13 YWZC

Part# 06540600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06441900

7

@WSHR-FL-STL.531X1.06X.095YWZC

Part# 06441900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21700200

8

#10 X 1/2" LG SHEET METAL

Part# 21700200

OEM Warranty Repair Part for Ariens

Not available

05966600

9

@BLT-HEX .50-13X2.50 GR5 YWZC

Part# 05966600

OEM Warranty Repair Part for Ariens

Not available

21700700

10

5/16 X 5/8" SELF TAP SCREW

Part# 21700700

OEM Warranty Repair Part for Ariens

Not available

21701000

11

5/16-18 X 2" W X 3" LG SQ

Part# 21701000

OEM Warranty Repair Part for Ariens

Not available

27101600

12

EXHAUST EXTENSION ASSEMBLY

Part# 27101600

OEM Warranty Repair Part for Ariens

Not available

27102300

13

LEG SET MOUNTING BRACKET - PRO

Part# 27102300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 7 business days

Your price: $73.73

27102700

14

HEAT SHIELD

Part# 27102700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 7 business days

Your price: $73.73

27100500

15

3 BAG CATCHER MOUNT

Part# 27100500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 7 business days

Your price: $391.69
