892043 - Gravely Pro Series, 60", 66" Decks (SN: 000101 & Above) Pro-Series 3 Bag Catcher System Installation Counter-Weight Parts List Parts Diagram

Pro Series, 60", 66" Decks

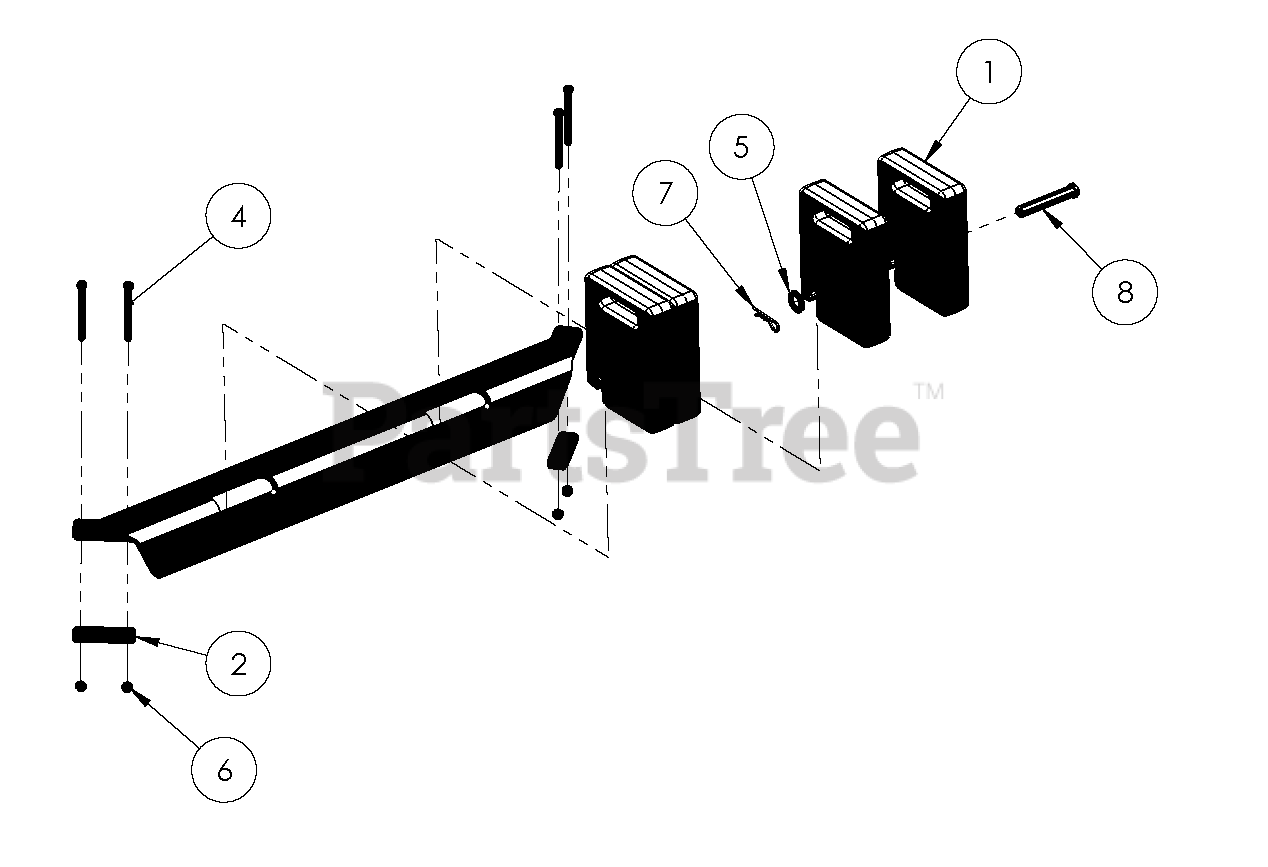

Pro-Series 3 Bag Catcher System Installation Counter-Weight Parts List Parts Diagram

  • Title

1

181226

Weight-Cast 28LB Front

$

$

Not available

2

182137

Plate, Front Weight Frame

$

$

Not available

3

Gravely 04370851

Bracket, Front WT FM 4-WT

$

$

Not available

4

Gravely 05965400

BLT-HEX .38-16X4.00 GR5 YWZC

$3.99

$

In Stock, only 1 left!

0

5

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWCZ
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

6

Gravely 06500708

Nut-LK-FLG .375-16 PL

$2.49

$

Usually ships in 4-12 days

0

7

6700128

1/8" Hair Pin

$

$

Not available

8

Gravely 06824300

Pin, Clevis 3/4 X 4 1/2 Y

$

$

Not available
