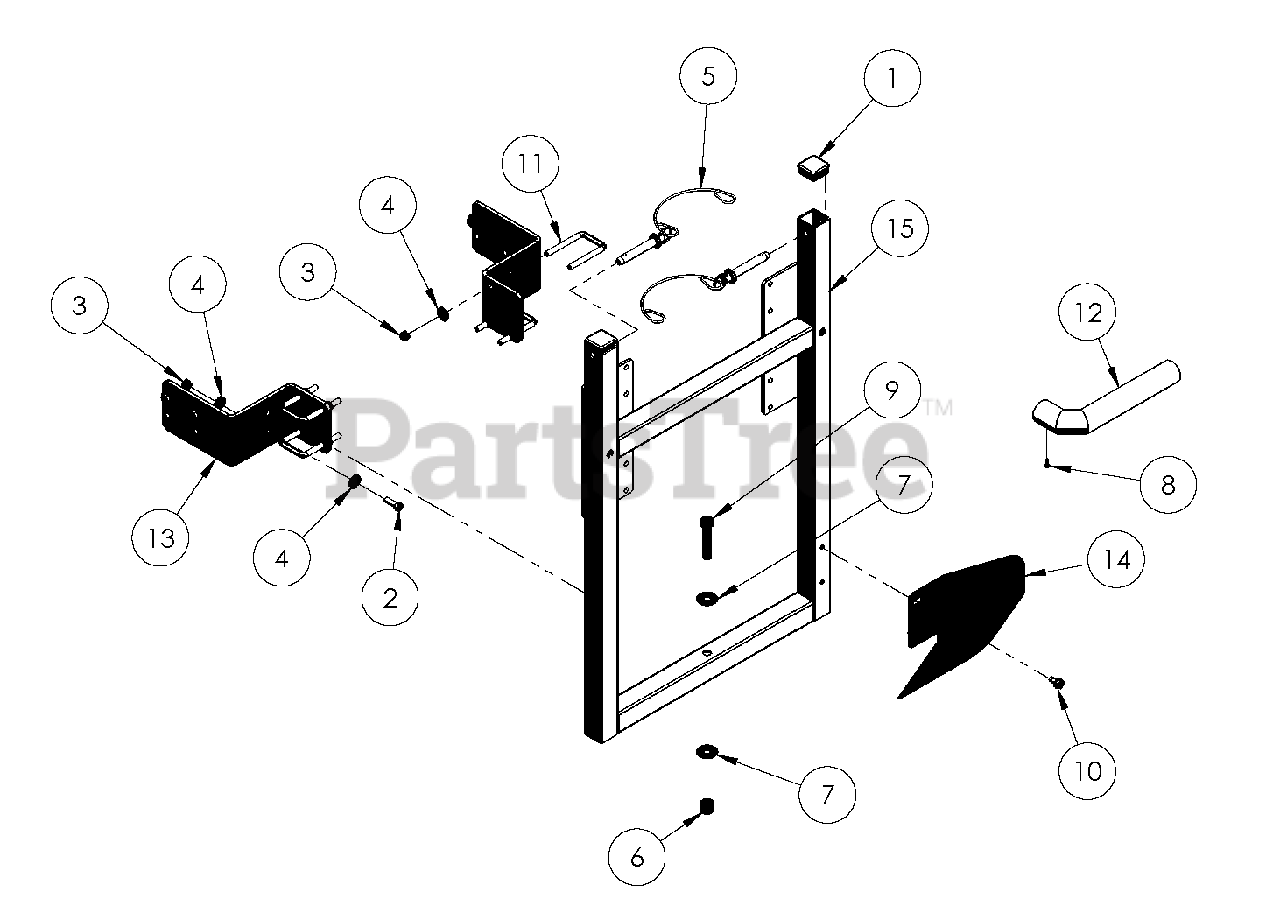

892043 - Gravely Pro Series, 60", 66" Decks (SN: 000101 & Above) Pro Series 3 Bag Catcher System Installation Leg Set Parts List Parts Diagram

Pro Series, 60", 66" Decks

Pro Series 3 Bag Catcher System Installation Leg Set Parts List Parts Diagram

  • Title

1

Gravely 21700100

Plug, Sq. Hole

$

$

Not available

2

Gravely 05946900

Cap Screw 5/16- 18 X 1
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 06545400

5/16- 18 Nylon Insert Nut
(Superseded to 06500809)

$1.49

$

In Stock, Qty 8

0

4

Gravely 06437200

5/16" Flat Washer
(Superseded to 06401017)

$0.99

$

In Stock, Qty 6

0

5

Gravely 00458909

1/2 Detent Pin 2.5" Long

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 06540600

1/2 - 13 X Nylon Insert Nut
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06441900

1/2" Flat Washer
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 21700200

#10 X 1/2" Lg Sheet Metal Screw

$

$

Not available

9

Gravely 05966600

CS 1/2-13 X 2.5 G5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

10

Gravely 21700700

5/16 X 5/8" Self Tap Screw

$

$

Not available

11

Gravely 21701000

5/16- 18 X 2" W X 3" Lg Sq U-Bolt

$

$

Not available

12

Gravely 27101600

Exhaust Extension Assembly

$

$

Not available

13

Gravely 27102300

Leg Set Mounting Bracket - Pro Series

$

$

Not available

14

Gravely 27102700

Heat Shield

$

$

Not available

15

Gravely 27100500

3 Bag Catcher Mount

$

$

Not available
