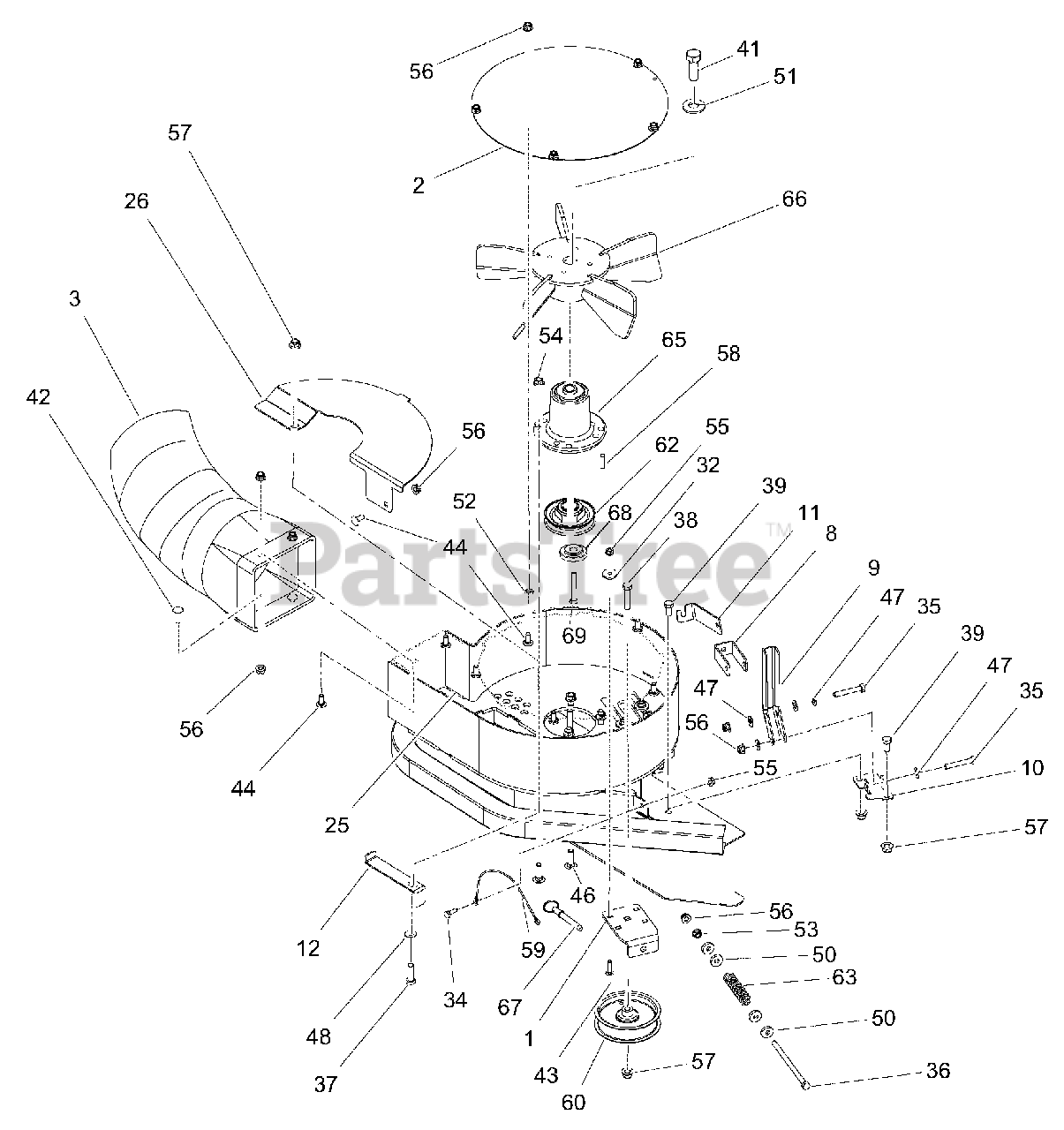

892045 - Gravely 3-Bag Powered Bagger (SN: 040000 & Above) Blower Housing Assembly Parts Diagram

3-Bag Powered Bagger

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 00168100

BRACKET, ADJUSTABLE IDLER

$39.99

$

Usually ships in 4-12 days

0

2

Gravely 00451953

COVER, BLOWER-RED

$31.99

$

Usually ships in 4-12 days

0

3

Gravely 04714100

ADAPTER-HOSE 72"

$

$

Not available

8

Gravely 00474251

LINK - IDLER RELEASE

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 00474351

LEVER - IDLER RELEASE

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 00474451

MOUNT - IDLER RELEASE LEVER

$19.99

$

Usually ships in 4-12 days

0

11

Gravely 00952451

LOCK - IDLER RELEASE LEVER

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 00956151

FINGER - BELT

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 04581053

COMM BAGGER BLOWER WLDMT - RED

$863.99

$

Usually ships in 4-12 days

0

26

Gravely 04587951

BOTTOM COVER - BLACK

$37.99

$

Usually ships in 4-12 days

0

32

Gravely 05500920

BSHG-FLG .265X.477X.375X1.00

$3.99

$

In Stock, Qty 6

0

34

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

35

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

36

Gravely 05957600

BLT-HEX .31-18X5.50 GR5 YWZC
(Superseded to 05901926)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

41

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

42

Gravely 06200007

BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.99

$

In Stock, only 2 left!

0

43

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

44

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 18

0

46

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

47

Gravely 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, only 4 left!

0

48

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

51

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

52

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0

53

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

54

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

55

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

56

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

57

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

58

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

59

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.99

$

In Stock, Qty 10

0

60

Gravely 07327100

PULLEY, IDLER 4.00

$38.99

$

In Stock, Qty 13

0

62

Gravely 07340567

PULLEY, 1" ID X 3.50" OD

$93.99

$

Usually ships in 4-12 days

0

63

Gravely 08312100

SG-COMP .092X.77X3.13 WLD 36

$11.99

$

In Stock, Qty 8

0

65

Gravely 59216000

SPINDLE ASSEMBLY, SERVICE

$527.99

$

Usually ships in 4-12 days

0

66

Gravely 04590100

WLDMT, FAN BAGGER

$251.99

$

Usually ships in 4-12 days

0

67

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0

68

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 20+

0

69

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0
