892045 - Gravely 3-Bag Powered Bagger (SN: 040000 & Above) Mounting Assembly Parts Diagram

3-Bag Powered Bagger

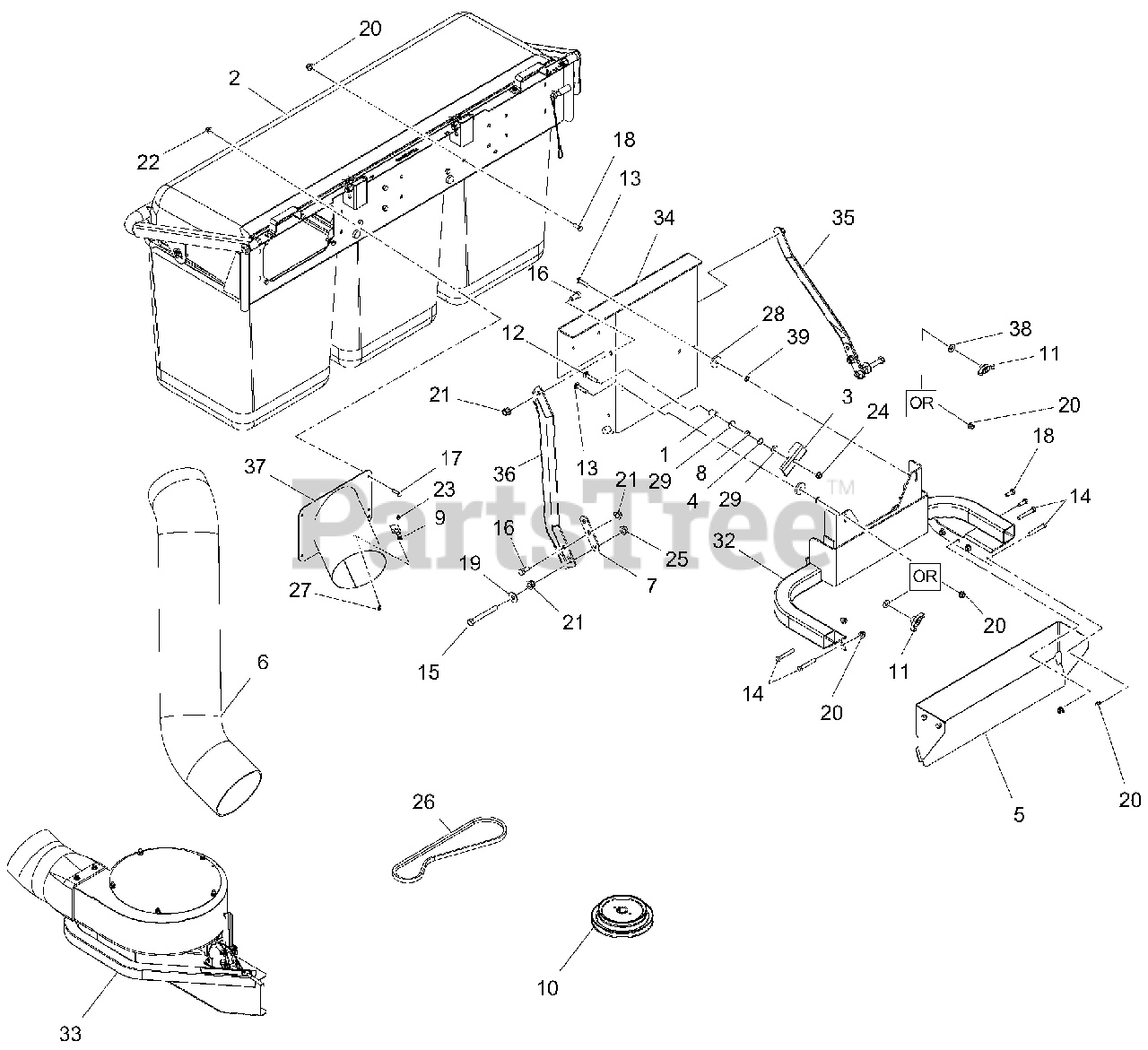

Mounting Assembly Parts Diagram

  • Title

1

Gravely 00186400

BSHG, SPCR .41 X .75 X .88 PM

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 00459000

RECEPTACLE, HUMBOLDT 3-BAG (12BU)

Note: (12BU)

$1977.99

$

Usually ships in 4-12 days

0

3

Gravely 00610751

LATCH, BAGGER UPPER MOUNT-BLACK

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 03704900

WAVE WASHER .640 X .875 X .125 FH

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 04563151

SHIELD, HEAT, MUFFLER, BAGGER-BLACK

$77.99

$

Usually ships in 4-12 days

0

6

Gravely 04222800

BAGGER HOSE, 38"

$97.99

$

Usually ships in 4-12 days

0

7

Gravely 04635451

LINK, OFFSET,BAGGER BRACE-BLACK

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 05508900

BSHG, SLV .377X.624X.235

$9.99

$

In Stock, only 2 left!

0

9

Gravely 07000026

LATCH, THUMB

$9.99

$

In Stock, only 2 left!

0

10

Gravely 07341600

SHEAVE, DOUBLE

$116.99

$

Usually ships in 4-12 days

0

11

Gravely 07500109

KNOB, WING .38-16 UNC NYL/TALC

$5.49

$

In Stock, only 2 left!

0

12

Gravely 06224300

@BLT-RDHDSQNK .38-16X2.00 G5 Y
(Superseded to 06200314)

$3.99

$

In Stock, Qty 8

0

13

Gravely 06223800

@BLT-RDHDSQNK .38-16X1.75 G5 YWZC
(Superseded to 06200417)

$4.99

$

In Stock, only 2 left!

0

14

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05969100

@BLT-HEX .50-13X4.25 GR5 YWZC
(Superseded to 05901906)

$5.49

$

In Stock, only 4 left!

0

16

Gravely 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

17

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

18

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06536000

@NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06542000

@NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 14

0

25

Gravely 06543300

NUT .50-13 WIZ FLANGE
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 07234500

V-BELT, 4L WRAPPED CLUTCHING

$39.99

$

In Stock, Qty 5

0

27

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06400006

WSHR-FL-STL .406X1.50X.245 YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

29

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.99

$

In Stock, only 4 left!

0

32

Gravely 03900951

MOUNT, BAGGER PT200-BLACK

$395.99

$

Usually ships in 4-12 days

0

33

Gravely 59221900

BLOWER ASSEMBLY, SERVICE

$1345.99

$

Usually ships in 4-12 days

0

34

Gravely 00460900

UPPER MOUNT, 3-BAG

$

$

Not available

35

Gravely 04635251

WLDMT, BAGGER BRACE LH,200/400-BLACK

$54.99

$

Usually ships in 4-12 days

0

36

Gravely 04635351

WLDMT, BAGGER BRACE RH,200/400-BLACK
(Superseded to 04844351)

$98.99

$

Usually ships in 4-12 days

0

37

Gravely 04715551

ADAPTOR, 200 SERIES INLET-BLACK

$69.99

$

Usually ships in 4-12 days

0

38

Gravely 06435900

WSHR-FL-STL .438X1.00X.083 YWZC
(Superseded to 06401008)

$1.99

$

In Stock, only 4 left!

0

39

Gravely 07009900

PUSHNUT

$2.49

$

In Stock, only 1 left!

0
