892049 - Gravely Bagger, 12 Cu. Ft. Hopper Bagger (SN: 040000 & Above) Hopper Assembly Parts Diagram

Bagger, 12 Cu. Ft. Hopper Bagger

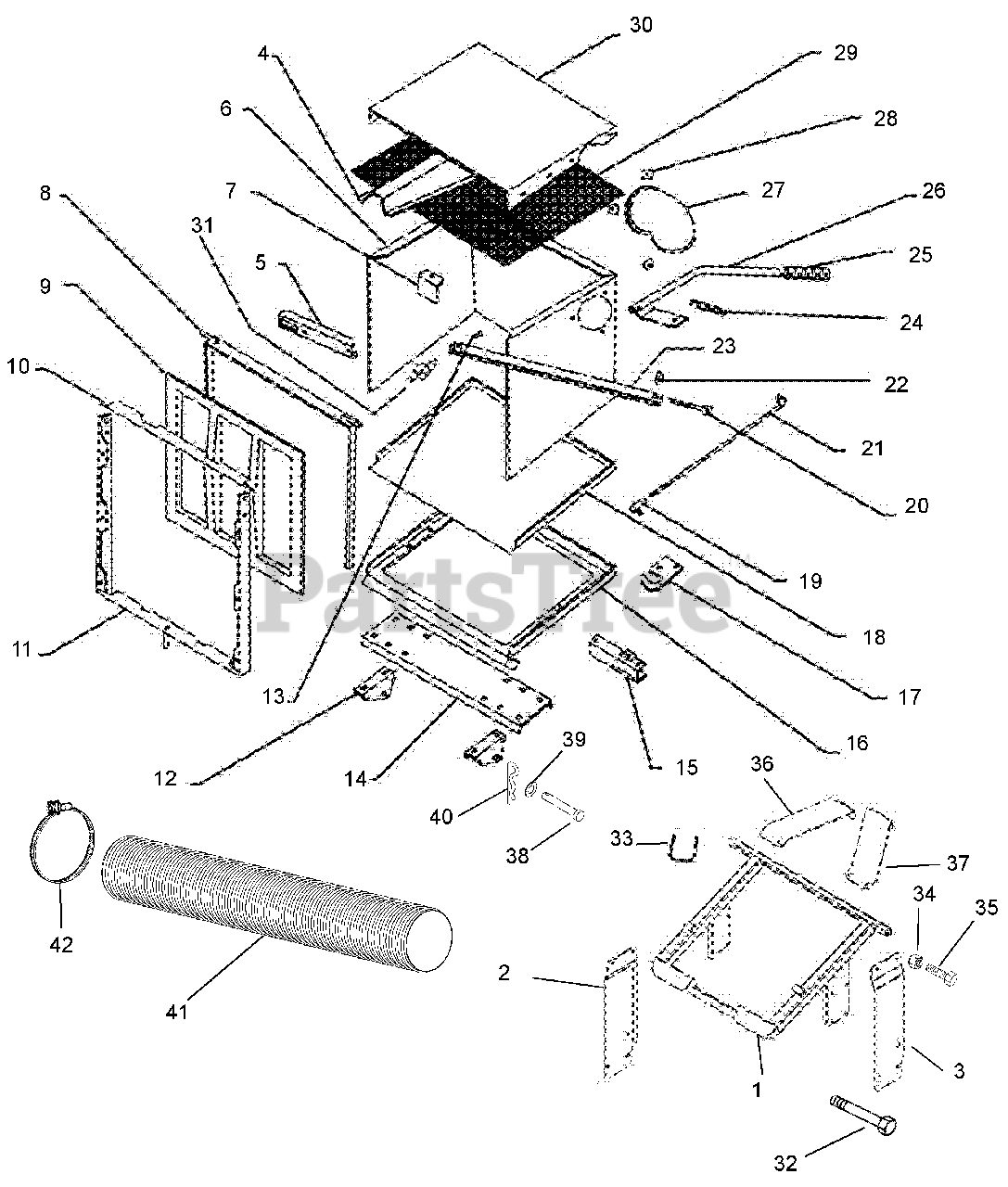

Hopper Assembly Parts Diagram

  • Title

1

Gravely 04813701

FRAME, PECO MAIN

$

$

Not available

2

Gravely 04813702

LEG, LH MAIN FRAME MTG

$

$

Not available

3

Gravely 04813703

LEG, RH MAIN FRAME MTG

$

$

Not available

4

Gravely 00193700

SUPPORT - SCREEN

$

$

Not available

5

Gravely 00193500

MOUNT - HANDLE

$

$

Not available

6

Gravely 00193600

BOX BACK AND SIDES-ALUMINUM

$

$

Not available

7

Gravely 00194000

GAUGE - FILL

$48.99

$

Usually ships in 4-12 days

0

8

Gravely 00193400

FRAME - BOX/DOOR

$

$

Not available

9

Gravely 00193000

DOOR - PLASTIC

$810.99

$

Usually ships in 4-12 days

0

10

Gravely 00193300

MEMBER - UPPER DOOR

$173.99

$

Usually ships in 4-12 days

0

11

Gravely 00192900

ASSEMBLY - DOOR FRAME

$

$

Not available

12

Gravely 00192800

BRACKET - PIVOT

$82.99

$

Usually ships in 4-12 days

0

13

Gravely 00194100

PIN - LINKAGE

$

$

Not available

14

Gravely 00192700

MOUNT-BASE FRAME PIVOT

$179.99

$

Usually ships in 4-12 days

0

15

Gravely 00192600

PLATE-SUPER LATCH HOOK PIVOT

$

$

Not available

16

Gravely 00193100

FRAME - BASE

$

$

Not available

17

Gravely 00192500

HOOK - SUPER LATCH

$

$

Not available

18

Gravely 00193200

BOTTOM - ALUMINUM BOX

$637.99

$

Usually ships in 4-12 days

0

19

Gravely 00192400

JOINT-BALL-SUPER LATCH ADJUST

$

$

Not available

20

Gravely 07068800

SCREW - ADJUSTING

$

$

Not available

21

Gravely 00192300

ROD - SUPER LATCH

$179.99

$

Usually ships in 4-12 days

0

22

Gravely 06545600

NUT - ADJUSTING

$

$

Not available

23

Gravely 00192200

ROD - LINKAGE

$

$

Not available

24

Gravely 08354400

SPRING - LATCH

$

$

Not available

25

Gravely 07538700

GRIP - HANDLE

$

$

Not available

26

Gravely 00192100

HANDLE - BOX

$

$

Not available

27

Gravely 00192000

INLET

$100.99

$

Usually ships in 4-12 days

0

28

Gravely 00191900

CLAMP - INLET

$12.99

$

Usually ships in 4-12 days

0

29

Gravely 00193800

SCREEN

$

$

Not available

30

Gravely 00193900

BOX TOP - ALUMINUM

$681.99

$

Usually ships in 4-12 days

0

31

Gravely 06715100

PIN-COTTER RUE RING

$

$

Not available

32

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

33

Gravely 04813707

U-BOLT, ROPS MTG

$

$

Not available

34

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 04813704

BKRT, LH ROPS SUPPORT

$

$

Not available

37

Gravely 04813705

BRKT, RH ROPS SUPPORT

$

$

Not available

38

Gravely 00673600

PIN, DETENT .625"X3"PECO K0172

$

$

Not available

39

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

40

Gravely 06715000

PIN-HAIR-INT .156X2.625 YWZC

$

$

Not available

41

Gravely 00486100

HOSE,7X63 GOODYEAR 586-429-171

$268.99

$

Usually ships in 4-12 days

0

42

Gravely 02770200

CLAMP, 7" TOOL-LESS HOSE

$55.99

$

Usually ships in 4-12 days

0
