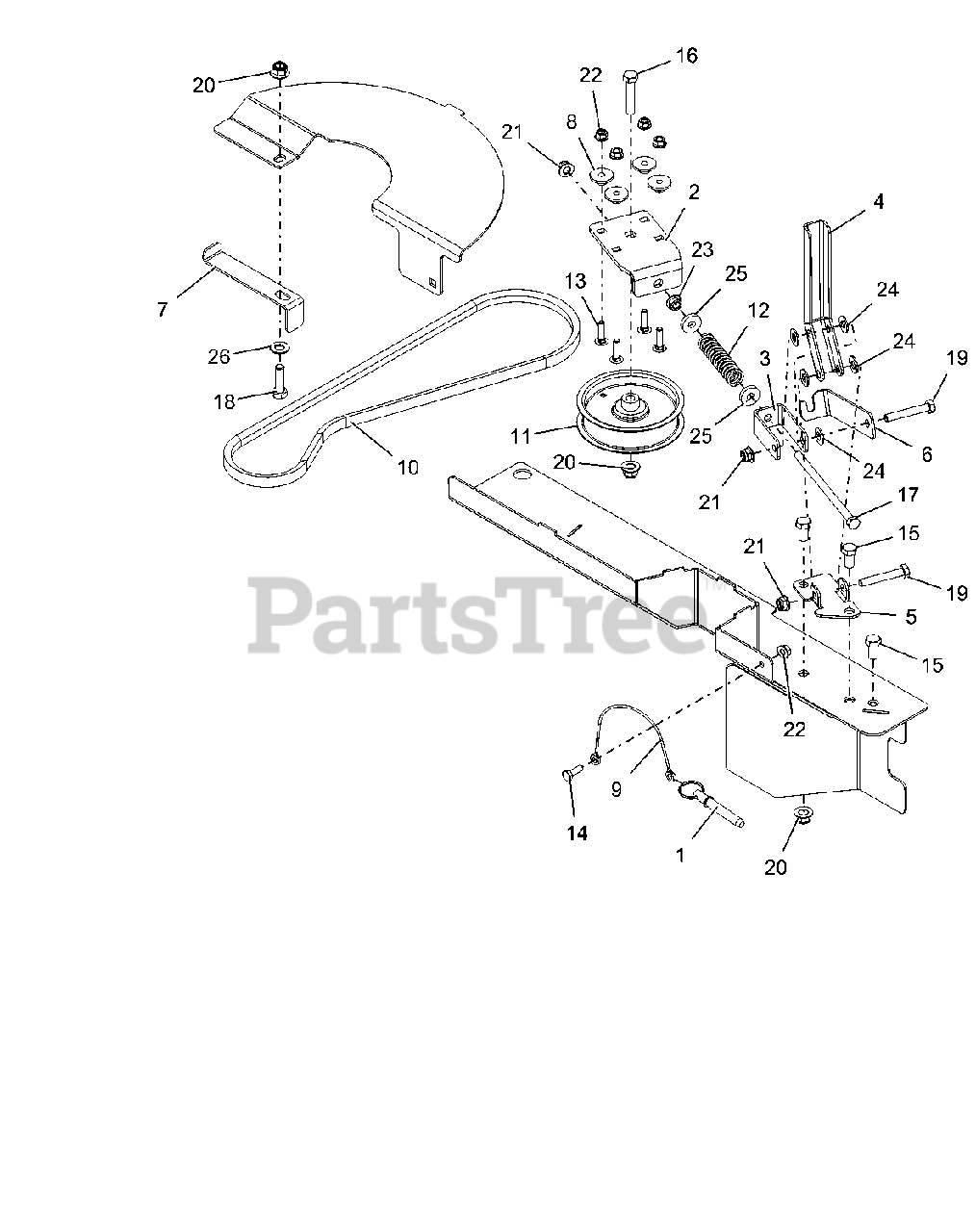

892051 - Gravely Peco 3-Bag Bagger (SN: 000101 - 000999) Belt Drive Assembly - 60" (Kit No. 79216400) Parts Diagram

Peco 3-Bag Bagger

Belt Drive Assembly - 60" (Kit No. 79216400) Parts Diagram

  • Title

1

Gravely 01593500

PIN, SPRING BALL .375 OD X 1.50

$5.99

$

In Stock, only 3 left!

0

2

Gravely 00168100

BRKT, ADJUSTABLE IDLER

$38.99

$

Usually ships in 4-12 days

0

3

Gravely 00474251

LINK, IDLER RELEASE-BLACK

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 00474351

LEVER, IDLER RELEASE-BLACK

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 00474451

MOUNT, IDLER RELEASE LEVER-BLK

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 00952451

LOCK, IDLER RELEASE LEVER-BLACK

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 00956151

FINGER, BELT-BLACK

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 05500920

BSHG, FLG .265 X .477 X .375 X 1.00

$3.99

$

In Stock, Qty 18

0

9

Gravely 06900317

LANYARD, 12"

$3.49

$

In Stock, only 2 left!

0

10

Gravely 07200636

V-BELT, 4L WRAPPED CLUTCHING

$34.99

$

In Stock, only 2 left!

0

11

Gravely 07327100

PULLEY, IDLER 4.00 X .375

$37.99

$

In Stock, Qty 10

0

12

Gravely 08312100

SPRG, COMPRESSION

$11.99

$

In Stock, only 1 left!

0

13

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5 YWZC
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

15

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

16

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 2 left!

0

17

Gravely 05957600

BLT-HEX .31-18X5.50 GR5 YWZC
(Superseded to 05901926)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 10

0

19

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

23

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

24

Gravely 06433600

WSHR-FL-NYL .375X.75X.060

$0.99

$

In Stock, Qty 14

0

25

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

26

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
