892051 - Gravely Peco 3-Bag Bagger (SN: 001000 & Above) Belt Drive Assembly - 60" Parts Diagram

Peco 3-Bag Bagger

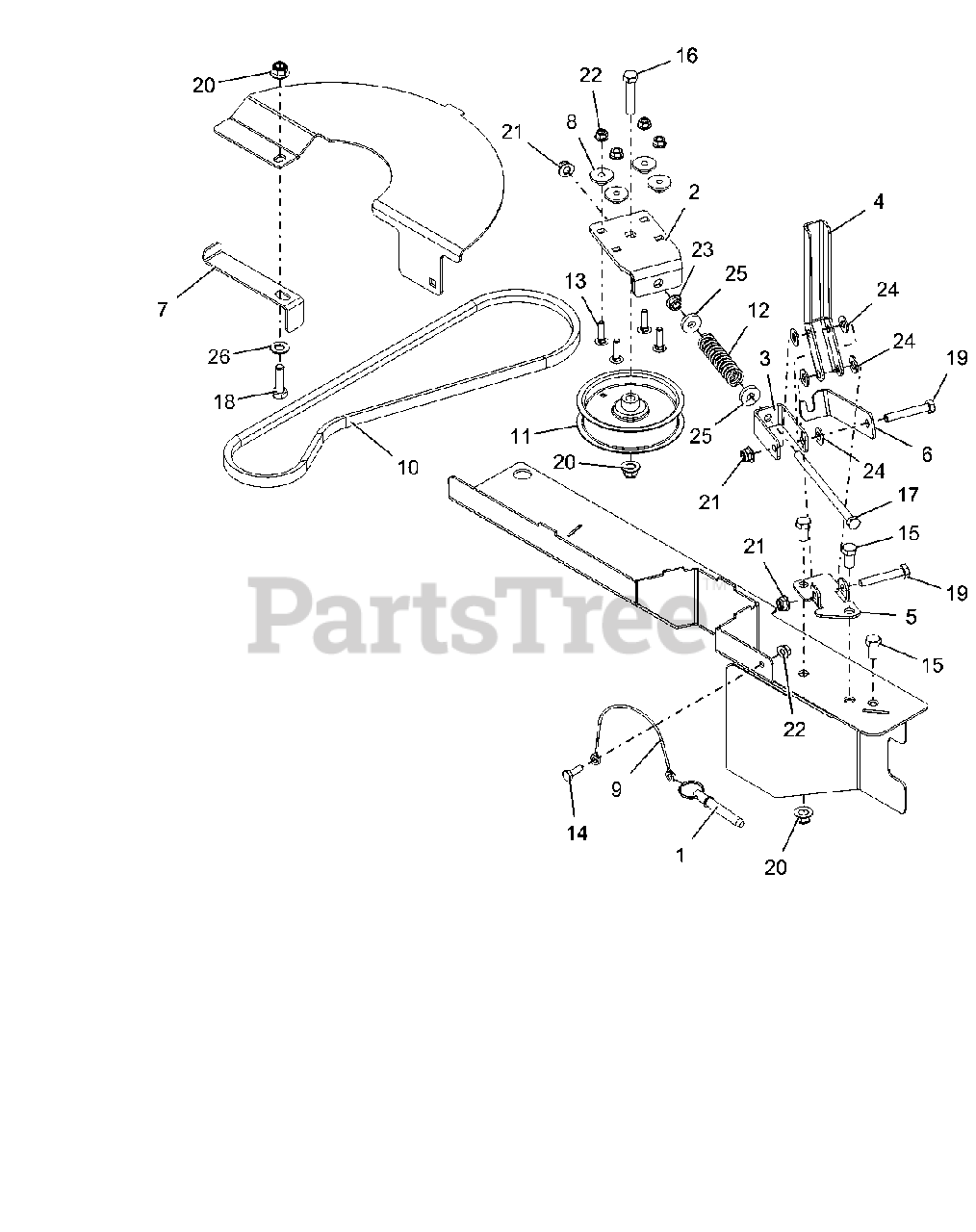

Belt Drive Assembly - 60" Parts Diagram

  • Title

1

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, only 2 left!

0

2

Gravely 00168100

BRACKET, ADJUSTABLE IDLER

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 00474251

LINK - IDLER RELEASE

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 00474351

LEVER - IDLER RELEASE

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 00474451

MOUNT - IDLER RELEASE LEVER

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 00952451

LOCK - IDLER RELEASE LEVER

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 00956151

FINGER - BELT

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05500920

BSHG-FLG .265X.477X.375X1.00

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.99

$

In Stock, only 2 left!

0

10

Gravely 07200636

V-BELT, 4L WRAPPED CLUTCHING

$38.99

$

In Stock, only 2 left!

0

11

Gravely 07327100

PULLEY, IDLER 4.00

$38.99

$

In Stock, only 1 left!

0

12

Gravely 08312100

SG-COMP .092X.77X3.13 WLD 36

$11.99

$

In Stock, only 2 left!

0

13

Gravely 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 5

0

15

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 8

0

16

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 8

0

17

Gravely 05957600

@BLT-HEX .31-18X5.50 GR5 YWZC
(Superseded to 05901926)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, only 2 left!

0

19

Gravely 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, only 2 left!

0

20

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 5

0

21

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 8

0

24

Gravely 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, only 4 left!

0

25

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 11

0

26

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 14

0
