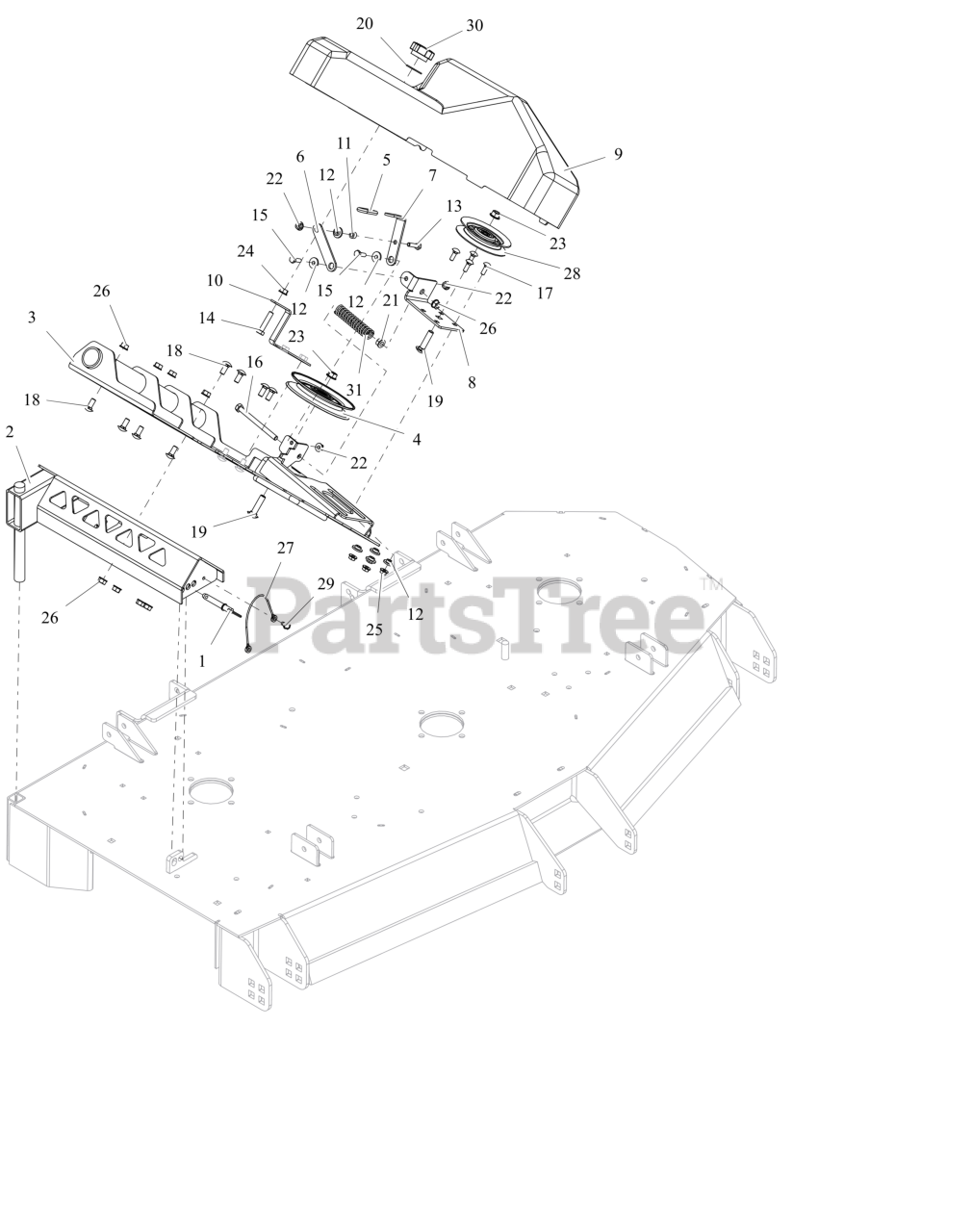

892054 - Gravely Dump from the Seat Bagger for Pro-Turn 500/600 (SN: 000400 & Above) Belt Drive Assembly Parts Diagram

Dump from the Seat Bagger for Pro-Turn 500/600

Belt Drive Assembly Parts Diagram

  • Title

1

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 12

0

2

Gravely 05143351

WLDMT, BLOWER MOUNT

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 05143451

WLDMT, BLOWER SPINDLE MNT (BLACK)

$197.99

$

Usually ships in 4-12 days

0

4

Gravely 07335000

IDLER, V-5.00

$72.99

$

Usually ships in 4-12 days

0

5

Gravely 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 04773951

LINK, TENSIONER

$8.49

$

Usually ships in 4-12 days

0

7

Gravely 04774051

HANDLE, TENSIONER

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 05144551

PLATE, TENSION PULLEY MOUNTING

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 05146400

COVER, BELT HD BLOWER

$100.99

$

Usually ships in 4-12 days

0

10

Gravely 05147151

PLT, COVER MNT

$26.99

$

Usually ships in 4-12 days

0

11

Gravely 05501121

BUSHING, .26 ID X .44 OD X .26

$3.99

$

In Stock, Qty 5

0

12

Gravely 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 4 left!

0

13

Gravely 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.99

$

In Stock, Qty 8

0

14

Gravely 05901710

BLT, HEX .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 6

0

15

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

16

Gravely 05901834

BLT, HEX .31-18X4.00 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06200328

BLT, RHSSN .38-16X1.50 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

21

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

23

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 8

0

26

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 07327600

V-IDLER, 4.00X.38

$39.99

$

In Stock, Qty 20+

0

29

Gravely 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$1.49

$

In Stock, Qty 8

0

30

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

31

Gravely 08300709

SPRG, COMPRESSION

$14.99

$

Usually ships in 4-12 days

0
