892405 - Ariens Rollover Protection System Kit ROPS Assembly Parts Diagram

Rollover Protection System Kit

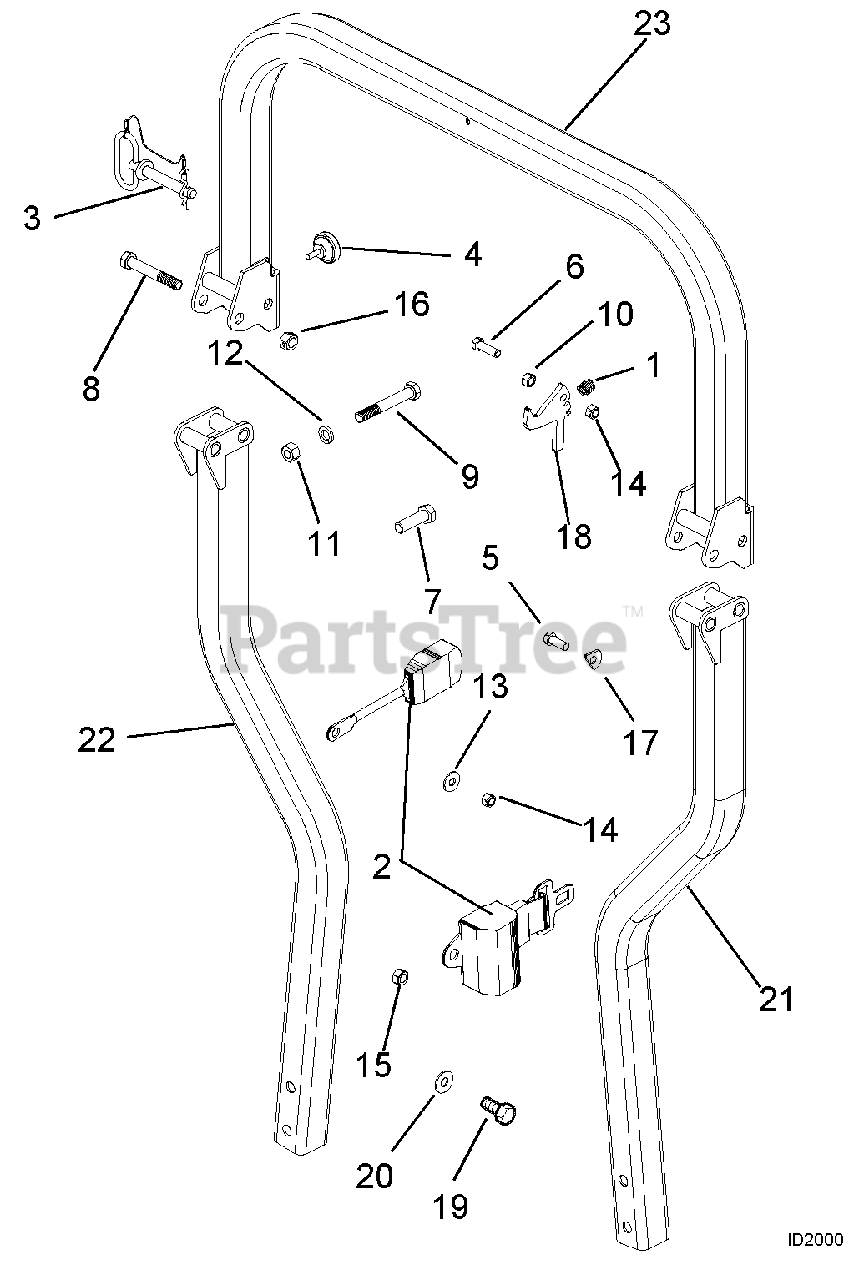

ROPS Assembly Parts Diagram

  • Title

1

Ariens 00160176

SPRING, COM .600X.056X.875 Y

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 00181572

ASSY, SEAT BELT

$107.99

$

Usually ships in 4-12 days

0

3

Ariens 00181591

ASSY, ROPS LOCK PIN S/O

$35.99

$

Usually ships in 4-12 days

0

4

Ariens 00181592

KNOB, ROUND 5/16-18 X .750

$7.99

$

In Stock, only 3 left!

0

5

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

6

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 8

0

7

Ariens 00960079

BOLT, 7/16-14X1.00 HEX 5 Y
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

8

Ariens 00960021

BOLT, 5/16-18X.500 HEX 5 Y

$

$

Not available

9

Ariens 00960022

BOLT, 5/16-18X.750 HEX 5 Y

$

$

Not available

10

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

11

Ariens 00960504

NUT, 1/2-13 STD HEX GR5 Y
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

12

Ariens 00960604

WASHER, .500 MED SPRG LOCK Y

$

$

Not available

13

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, only 2 left!

0

14

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

15

Ariens 00964025

LOCKNUT, 7/16-14 CROWN Y
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 00967106

LOCKNUT, 1/2-13 CENTER Y

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 03839800

WASHER, SEAT BELT Y

$

$

Not available

18

Ariens 03841451

LATCH, SEAT

$9.49

$

Usually ships in 4-12 days

0

19

Ariens 05918400

@BLT-HEX .44-20X.75 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, only 2 left!

0

21

Right Side Base Weldment

$

$

Not available

22

Left Side Base Weldment

$

$

Not available

23

Center Tube Weldment

$

$

Not available
