895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above)

Reel Mower Attachment for PM 320

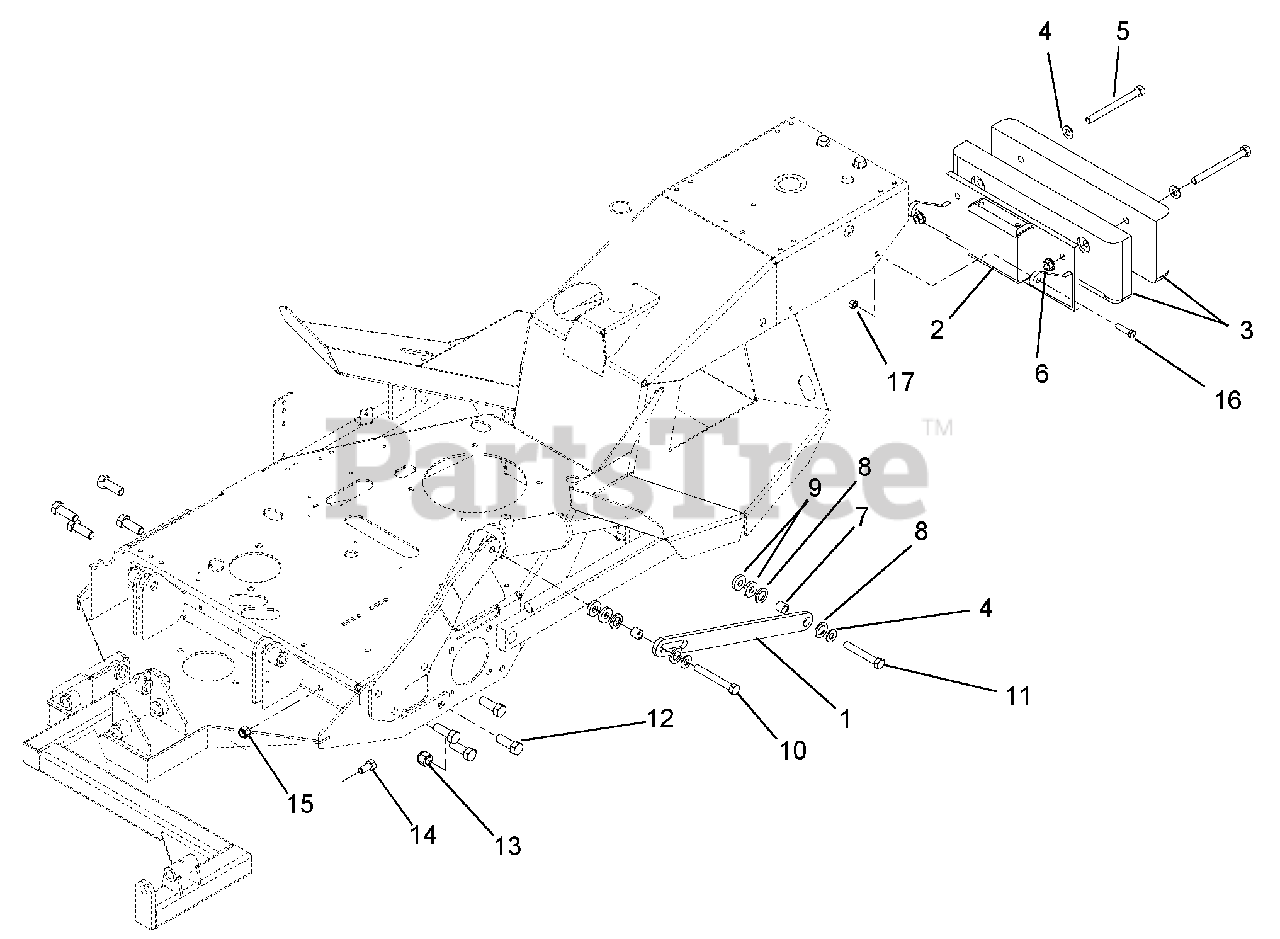

895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) > Parts Diagrams (6) > Attaching Hardware & Counterweight

  • Title
03396500

1

LIMITER ARM

Part# 03396500

OEM Warranty Repair Part for Gravely

Not available

03720551

2

COUNTERWEIGHT MOUNT WELDMENT

Part# 03720551

OEM Warranty Repair Part for Gravely

Not available

00172000

3

WEIGHT, CAST IRON

Part# 00172000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $188.89

06400416

4

FLATWASHER, 1/2

Part# 06400416

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05900815

5

HHCS, 1/2-13 x 5-1/2

Part# 05900815

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06500519

6

HEX NUT, 1/2-13 SERRATED FLANGE

Part# 06500519

OEM Warranty Repair Part for Gravely

Not available

05500417

7

BUSHING

Part# 05500417

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06400425

8

WASHER, 3/4 SAE

Part# 06400425

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06400240

9

WASHER, 1.25 X .531 X .25

Part# 06400240

OEM Warranty Repair Part for Gravely

Not available

05900807

10

HHCS, 1/2-13 X 4

Part# 05900807

OEM Warranty Repair Part for Gravely

Not available

05900822

11

HHCS, 1/2-13 X 3-1/2

Part# 05900822

OEM Warranty Repair Part for Gravely

Not available

05900704

12

HHCS, 5/8-11 X 1-3/4

Part# 05900704

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06500515

13

HEX NUT, 5/8-11 NYLOCK

Part# 06500515

OEM Warranty Repair Part for Gravely

Not available

05900805

14

HHCS 1/2-13 X 1 G5 ZP

Part# 05900805

OEM Warranty Repair Part for Gravely

Not available

06500510

15

NYLOCK NUT 1/2-13

Part# 06500510

OEM Warranty Repair Part for Gravely

Not available

05900802

16

HHCS 3/8-16 X 1-1/2"

Part# 05900802

OEM Warranty Repair Part for Gravely

Not available

06500517

17

NYLOCK NUT 3/8-1

Part# 06500517

OEM Warranty Repair Part for Gravely

Not available
