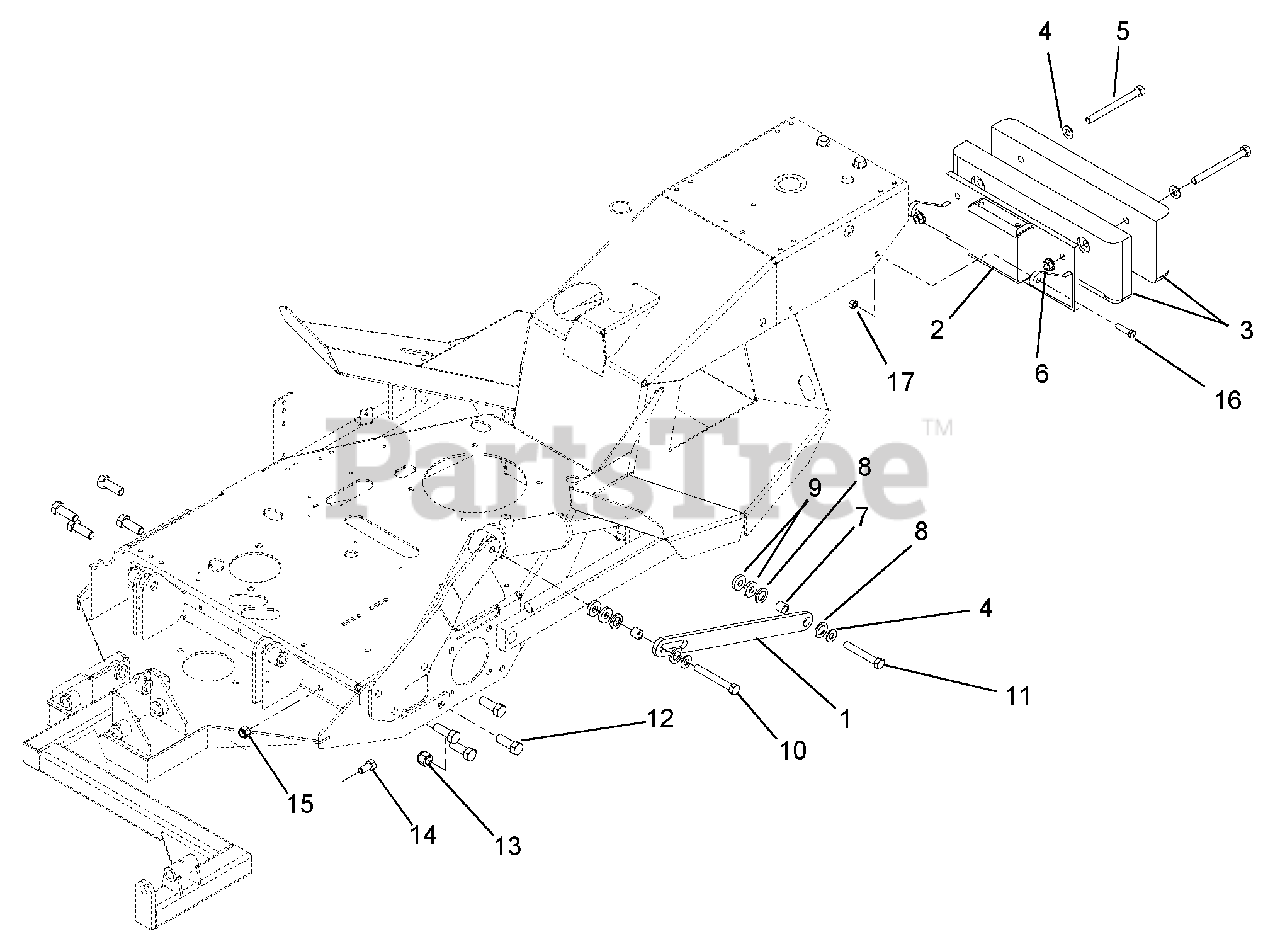

895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) Attaching Hardware & Counterweight Parts Diagram

Reel Mower Attachment for PM 320

Attaching Hardware & Counterweight Parts Diagram

  • Title

1

Gravely 03396500

LIMITER ARM

$

$

Not available

2

Gravely 03720551

COUNTER WEIGHT MOUNT WELDMENT

$

$

Not available

3

Gravely 00172000

WEIGHT, CAST IRON

$303.99

$

Usually ships in 4-12 days

0

4

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

5

Gravely 05900815

HEX HD CPSC 1/2-13 X 5-1/2

$

$

Not available

6

Gravely 06500519

SRATD FLNG HEX NUT 1/2-1 44615

$

$

Not available

7

Gravely 05500417

BUSHING, RM PULL BRACKE 200468

$

$

Not available

8

Gravely 06400425

FLATWASHER 3/4 SAE ZP 15921

$

$

Not available

9

Gravely 06400240

WASHER, 1.25 X .531 X .25 THK

$

$

Not available

10

Gravely 05900807

HEX HD CPSC 1/2-13 X 4 G 20071

$

$

Not available

11

Gravely 05900822

HHCS 1/2-13 X 3-1/2 G5

$

$

Not available

12

Gravely 05900704

HEX HD CPSC 5/8-11 X 1-3/4 CP

$

$

Not available

13

Gravely 06500515

HEX NUT 5/8-11 CP NYLOCK 44599

$

$

Not available

14

Gravely 05900805

HHCS 1/2-13 X 1 G5 20054

$

$

Not available

15

Gravely 06500510

HEX NUT 1/2-13 CP NYLOCK 44539

$

$

Not available

16

Gravely 05900802

HEX HD CPSC 3/8-16 X 1/2 20035

$

$

Not available

17

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available
