Parts Home > Gravely > Accessories & Attachments > 895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) > Cutting Units

895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above)

Reel Mower Attachment for PM 320

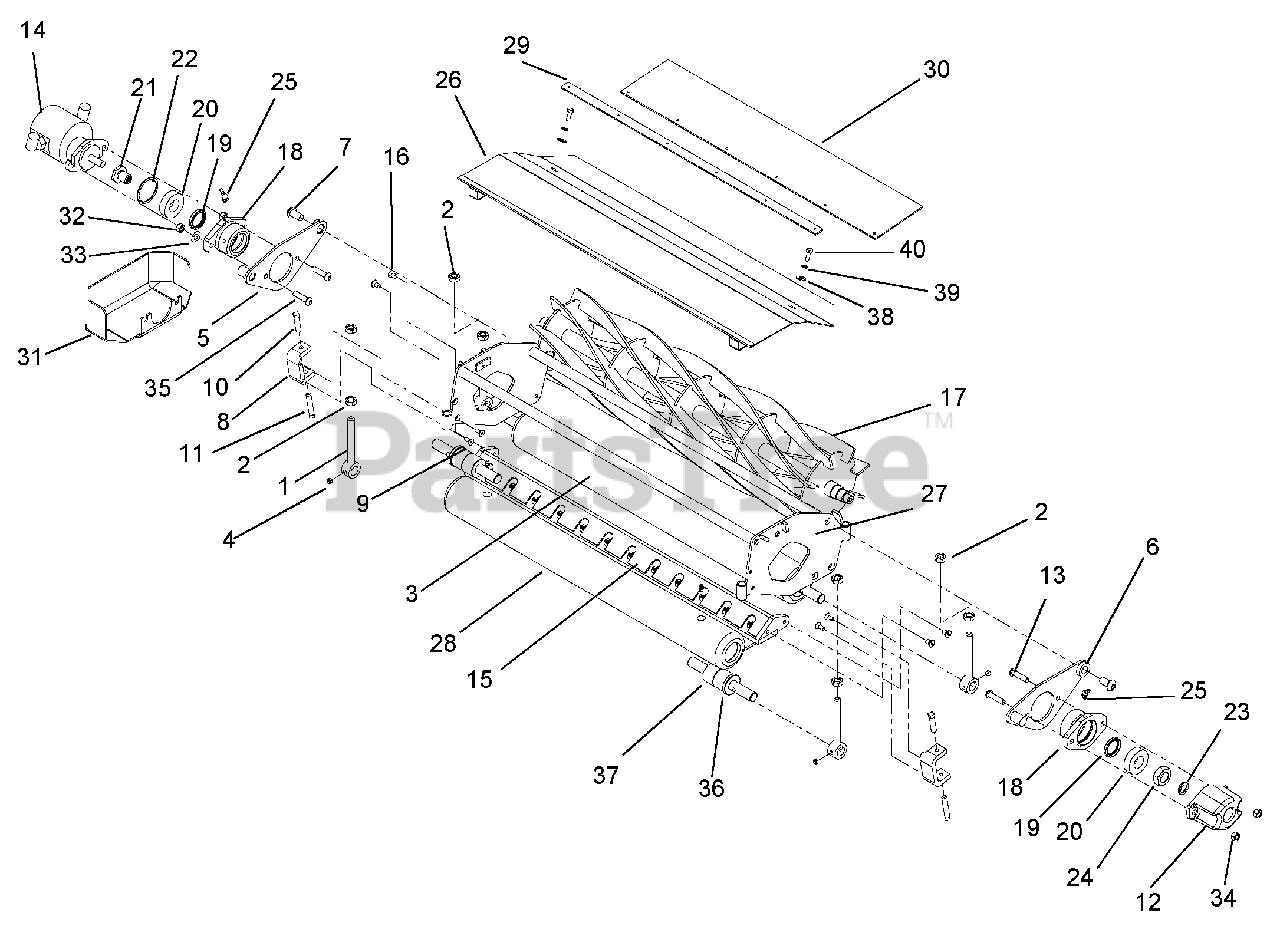

895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) > Parts Diagrams (6) > Cutting Units

  • Title
02695800

1

ROLLER ADJUSTER WELDMENT

Part# 02695800

OEM Warranty Repair Part for Gravely

Not available

02116100

2

JAM NUT 1/2-13 CP

Part# 02116100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02690300

3

ROLLER ASSEMBLY SMOOTH ALUMINUM 3.00

Part# 02690300

OEM Warranty Repair Part for Gravely

Not available

06000126

4

SETSCREW HEX SOC HD 3/8-16 X 1/4

Part# 06000126

OEM Warranty Repair Part for Gravely

Not available

05400616

5

BEARING HOUSING ADAPTER WLDMNT, RH (7" UNIT)

Part# 05400616

Note: (7" UNIT)

OEM Warranty Repair Part for Gravely

Not available

05400617

6

BEARING HOUSING ADAPTER WELDMENT, LH (7" UNIT)

Part# 05400617

Note: (7" UNIT)

OEM Warranty Repair Part for Gravely

Not available

05901231

7

SHOULDER BOLT 5/8 X 1/2 X 12-13 SS

Part# 05901231

OEM Warranty Repair Part for Gravely

Not available

02695600

8

STANDARD ADJUSTER BRACKET

Part# 02695600

OEM Warranty Repair Part for Gravely

Not available

02156400

9

HEX SOC FLT CSK HD CPSC 1/4-28 X 5/8

Part# 02156400

OEM Warranty Repair Part for Gravely

Not available

06000204

10

SQ HD SET SCREW, 3/8-16 X 1-1/2

Part# 06000204

OEM Warranty Repair Part for Gravely

Not available

06000205

11

SQ HD SET SCREW, 3/8-16 X 2

Part# 06000205

OEM Warranty Repair Part for Gravely

Not available

02658400

12

COUNTERWEIGHT REEL HOUSING, MACHINED

Part# 02658400

OEM Warranty Repair Part for Gravely

Not available

02699000

13

BUTTON HEAD CAP SCREW 3/8-16 X 1-1/2

Part# 02699000

OEM Warranty Repair Part for Gravely

Not available

07001407

14

MOTOR, HYDRAULIC

Part# 07001407

OEM Warranty Repair Part for Gravely

Not available

02811500

15

BEDBAR ASSEMBLY, 30" PR-3084 (INCLUDES THE FOLLOWING ITEMS)

Part# 02811500

Note: (INCLUDES THE FOLLOWING ITEMS)

OEM Warranty Repair Part for Gravely

Not available

02811400

BEDBAR WELDMENT 30 IN

Part# 02811400

OEM Warranty Repair Part for Gravely

Not available

02818400

BEDKNIFE 30 IN

Part# 02818400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $157.15

06500512

HEX NUT 5/16-18 NYLOCK

Part# 06500512 (Superseded to 06500820)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02221600

HEX FLAT HEAD SOCKET CAPSCREW 5/16-18 X 1

Part# 02221600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05900837

16

HEX SOC FLT CSK HD CPSC 5/16-18 X 5/8

Part# 05900837

OEM Warranty Repair Part for Gravely

Not available

03382951

17

8 BLADE REEL WELDMENT

Part# 03382951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $777.29

03789451

7 BLADE RH HELIX REEL WELDMENT

Part# 03789451

OEM Warranty Repair Part for Gravely

Not available

03789551

7 BLADE LH HELIX REEL WELDMENT

Part# 03789551

OEM Warranty Repair Part for Gravely

Not available

05400607

18

MODIFIED BEARING HOUSING

Part# 05400607

OEM Warranty Repair Part for Gravely

Not available

05600413

19

SEAL, OIL 1.565 OD X 1.125 ID

Part# 05600413

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05400407

20

BEARING

Part# 05400407

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06500536

21

SPLINED NUT

Part# 06500536

OEM Warranty Repair Part for Gravely

Not available

05700110

22

SPIROLOCK RETAINING RING

Part# 05700110

OEM Warranty Repair Part for Gravely

Not available

05600402

23

SEAL, OIL 1.004 OD X .625 ID X .125

Part# 05600402

OEM Warranty Repair Part for Gravely

Not available

02220800

24

JAM NUT 7/8-14 NYLOCK

Part# 02220800

OEM Warranty Repair Part for Gravely

Not available

07000909

25

45 DEGREE GREASE FITTING 1/4-28

Part# 07000909

OEM Warranty Repair Part for Gravely

Not available

02811653

26

30" REEL SHIELD

Part# 02811653

OEM Warranty Repair Part for Gravely

Not available

03789351

27

CUTTING UNIT FRAME

Part# 03789351

OEM Warranty Repair Part for Gravely

Not available

02690200

28

ROLLER TUBE

Part# 02690200

OEM Warranty Repair Part for Gravely

Not available

01811900

29

STRAP, RUBBER FLAP

Part# 01811900

OEM Warranty Repair Part for Gravely

Not available

01809400

30

RUBBER FLAP

Part# 01809400

OEM Warranty Repair Part for Gravely

Not available

03396751

31

GUARD, MOTOR

Part# 03396751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06500517

32

NYLOCK NUT 3/8-16

Part# 06500517

OEM Warranty Repair Part for Gravely

Not available

06400425

33

3/8 SAE FLATWASHER

Part# 06400425

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06500521

34

SERATED FLANGE NUT 3/8-16

Part# 06500521

OEM Warranty Repair Part for Gravely

Not available

02090300

35

BUTTON HD CPSC 3/8-16 X 1-3/4 SS

Part# 02090300

OEM Warranty Repair Part for Gravely

Not available

05600416

36

GREASE SEAL

Part# 05600416

OEM Warranty Repair Part for Gravely

Not available

05400603

37

BEARING

Part# 05400603

OEM Warranty Repair Part for Gravely

Not available

06400423

38

1/4" USS FLATWASHER

Part# 06400423

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06300034

39

1/4" LOCKWASHER

Part# 06300034

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05900618

40

HHCS 1/4-20 X 3/4"

Part# 05900618

OEM Warranty Repair Part for Gravely

Not available
