895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) Cutting Units Parts Diagram

Reel Mower Attachment for PM 320

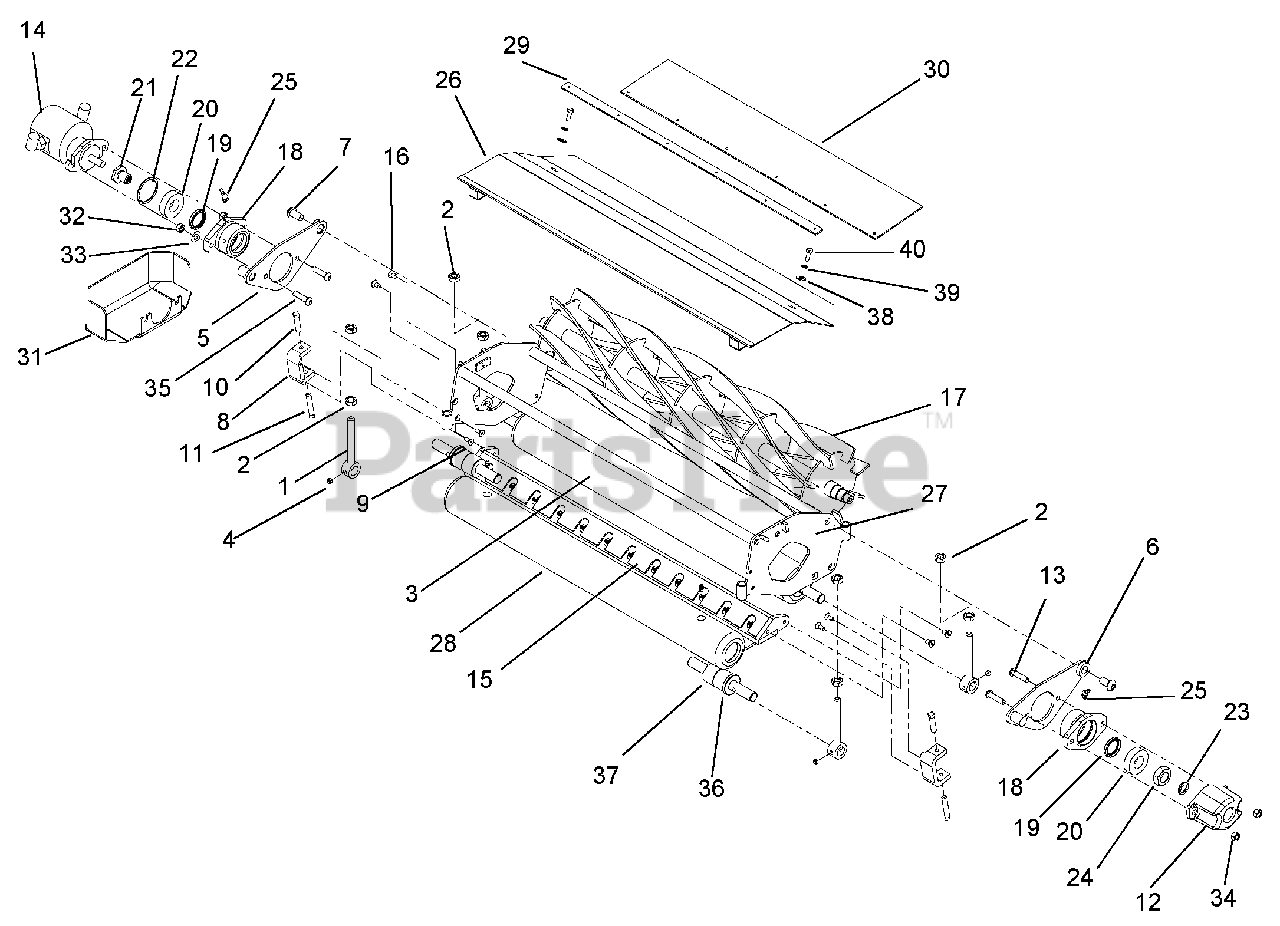

Cutting Units Parts Diagram

  • Title

1

Gravely 02695800

ROLLER ADJUSTMNT WELD 50040028

$

$

Not available

2

Gravely 02116100

JAM NUT 1/2 -13 CP 15519

$

$

Not available

3

Gravely 02690300

ROLLER ASSY:SMOOTH 3I 50037658

$

$

Not available

4

Gravely 06000126

SETSCR HEX SOC HD 3/8 X 1/4 SS

$

$

Not available

5

Gravely 05400616

BEARING HOUSING ADPT W 5050009

Note: (7" UNIT)

$

$

Not available

6

Gravely 05400617

BEARING HOUSING ADPT W 5050010

Note: (7" UNIT)

$

$

Not available

7

Gravely 05901231

SHOULDER BOLT5/8X1/2X1/2-13 SS

$

$

Not available

8

Gravely 02695600

STANDARD ADJUSTR BRKT 50040025

$

$

Not available

9

Gravely 02156400

FHSCS CPSC 1/4-28 X 5/8 SS

$

$

Not available

10

Gravely 06000204

SQ HD SET SCR. 3/8-16X1-1/2 SS

$

$

Not available

11

Gravely 06000205

SQ HD SET SCR.3/8-16 X 2" SS

$

$

Not available

12

Gravely 02658400

COUNTER WEIGHT - TORO 50026440

$

$

Not available

13

Gravely 02699000

SS BUTTON HD CP 3/8-16X1-1/2

$

$

Not available

14

Gravely 07001407

HYDRAULIC REEL MOTOR 12CC

$

$

Not available

15

Gravely 02811500

BEDBAR ASSEMBLY 30IN 5050028

Note: (INCLUDES THE FOLLOWING ITEMS)

$

$

Not available

Gravely 02811400

BEDBAR WELDMENT 30IN 5050027

$

$

Not available

Gravely 02818400

BED KNIFE 30 in 5095-30

$

$

Not available

Gravely 06500512

HEX NUT 5/16-18 CP NYLOC 44553
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

Gravely 02221600

HEX SOC FHCS 5/16-18 X 1

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 05900837

FHSCS 5/16-18 X 5/8 SS 24253

$

$

Not available

17

Gravely 03382951

REEL WELDMENT 8-BLD HD PR-3084

$792.99

$

Usually ships in 4-12 days

0

Gravely 03789451

REEL WELD,7BLD R HELIX PR-3084

$

$

Not available

Gravely 03789551

REEL WELD,7BLD L HELIX PR-3084

$

$

Not available

18

Gravely 05400607

MODIFIED BEARING HOUS 50040035

$

$

Not available

19

Gravely 05600413

SEAL OIL 1.565 OD X 50026861

$

$

Not available

20

Gravely 05400407

BEARING 1.00 ID X 2 50019553

$38.99

$

Usually ships in 4-12 days

0

21

Gravely 06500536

SPLINED NUT (TORO) 50026527

$

$

Not available

22

Gravely 05700110

SPIROLOC RETAINING RI 50041421

$

$

Not available

23

Gravely 05600402

SEAL END CAP (TORO) 50026305

$

$

Not available

24

Gravely 02220800

JAM NUT 7/8-14 NYLOCK 44363

$

$

Not available

25

Gravely 07000909

GREASE FITTING 45 DEG.1/4-28

$

$

Not available

26

Gravely 02811653

REEL SHIELD, PM-3084

$

$

Not available

27

Gravely 03789351

FRAME WELD.,730 CUTTING UNIT

$

$

Not available

28

Gravely 02690200

ROLLER (ONLY)SMOOTH A 50037657

$

$

Not available

29

Gravely 01811900

STRAP, RUBBER FLAP 203988

$

$

Not available

30

Gravely 01809400

RUBBER FLAP 203788

$

$

Not available

31

Gravely 03396751

GUARD, MOTOR

$

$

Not available

32

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

33

Gravely 06400425

FLATWASHER 3/4 SAE ZP 15921

$

$

Not available

34

Gravely 06500521

SERRATED FLNG HEX NUT 3/8-16

$

$

Not available

35

Gravely 02090300

BUTTON HDCS SS 3/8-16X1-3/4

$

$

Not available

36

Gravely 05600416

OIL SEAL FOR 3IN ALUM 50036120

$

$

Not available

37

Gravely 05400603

INTEGRAL SHAFT BEARIN 50036118

$

$

Not available

38

Gravely 06400423

FLATWASHER 1/4 ZP D STD 15918

$

$

Not available

39

Gravely 06300034

LOCKWASHER 1/4 CP PG 1/4 15905

$

$

Not available

40

Gravely 05900618

HEX HD CPSC 1/4-20 X 3/4

$

$

Not available
