895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above)

Reel Mower Attachment for PM 320

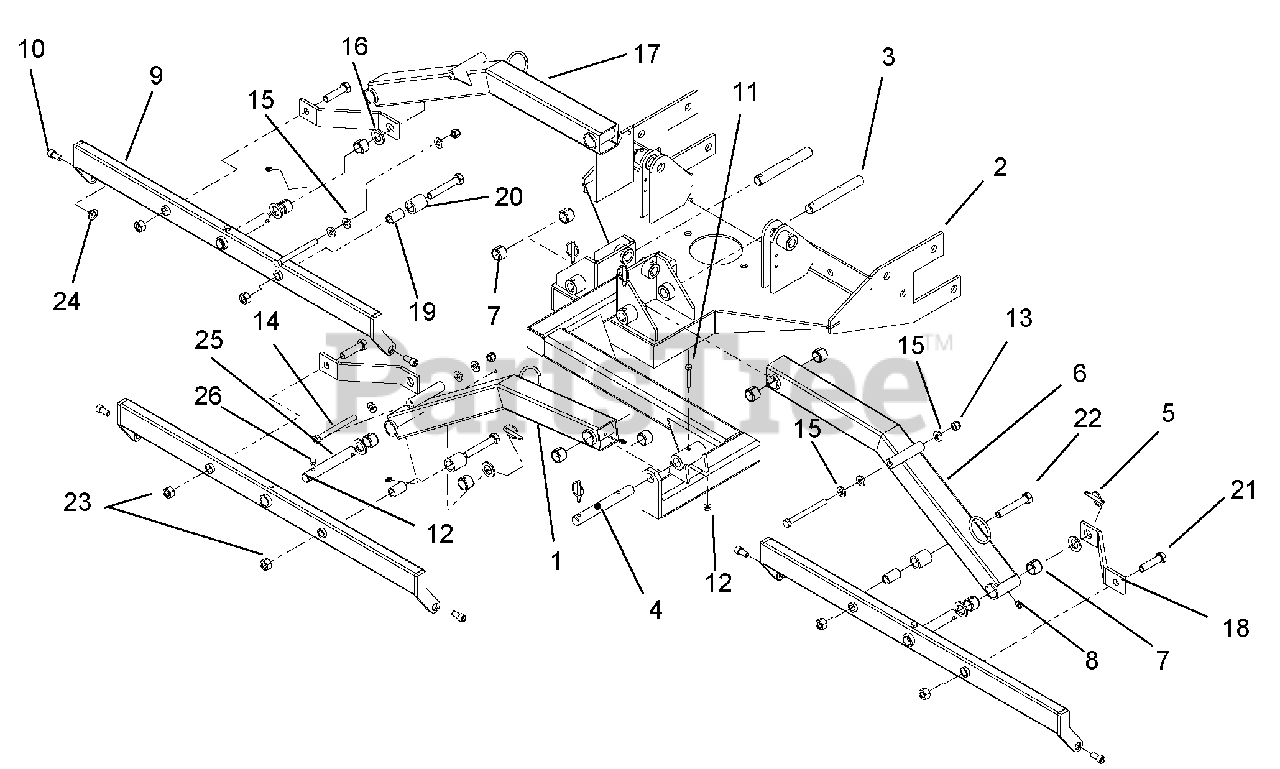

895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) > Parts Diagrams (6) > Frame & Lift Arms

  • Title
03396251

1

ARM WELDMENT, CENTER

Part# 03396251

OEM Warranty Repair Part for Gravely

Not available

03395851

2

HYDROSTAT DECK WELDMENT

Part# 03395851

OEM Warranty Repair Part for Gravely

Not available

03699700

3

PIVOT PIN (CENTER)

Part# 03699700

Note: (CENTER)

OEM Warranty Repair Part for Gravely

Not available

03699800

4

PIVOT PIN (OUTER)

Part# 03699800

Note: (OUTER)

OEM Warranty Repair Part for Gravely

Not available

01689000

5

LYNCH PIN, 1/4 X 1-9/16

Part# 01689000

OEM Warranty Repair Part for Gravely

Not available

03395951

6

ARM WELDMENT, LEFT SIDE

Part# 03395951

OEM Warranty Repair Part for Gravely

Not available

05500738

7

BUSHING, 1 X 3/4 X 3/4

Part# 05500738

OEM Warranty Repair Part for Gravely

Not available

07000916

8

GREASE FITTING, 1/4-28

Part# 07000916

OEM Warranty Repair Part for Gravely

Not available

03724500

9

PIVOT ARM ASSEMBLY

Part# 03724500

OEM Warranty Repair Part for Gravely

Not available

05900723

10

HEX SOC HD CPSC 3/8-16 X 3/4

Part# 05900723

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $4.76

05900808

11

HHCS 1/4-20 X 1-3/4 G5

Part# 05900808

OEM Warranty Repair Part for Gravely

Not available

06500523

12

SERATED FLG NUT 1/4-20

Part# 06500523

OEM Warranty Repair Part for Gravely

Not available

06500517

13

HEX NUT, 3/8-16 NYLOCK

Part# 06500517

OEM Warranty Repair Part for Gravely

Not available

05970400

14

BOLT, HEX, 3/8-16 X 4-1/2

Part# 05970400

OEM Warranty Repair Part for Gravely

Not available

06300025

15

FLATWASHER, 3/8 HARDENED

Part# 06300025

OEM Warranty Repair Part for Gravely

Not available

06400425

16

WASHER, 3/4 SAE

Part# 06400425

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03838551

17

ARM WELDMENT, RIGHT SIDE

Part# 03838551

OEM Warranty Repair Part for Gravely

Not available

03862851

18

SUPPORT BRACE

Part# 03862851

OEM Warranty Repair Part for Gravely

Not available

02853000

19

TRANSPORT BUMPER TUBE

Part# 02853000

OEM Warranty Repair Part for Gravely

Not available

07001603

20

BUMPER HOSE

Part# 07001603

OEM Warranty Repair Part for Gravely

Not available

05900809

21

HEX HD CPSC 1/2-13 X 2

Part# 05900809

OEM Warranty Repair Part for Gravely

Not available

05900923

22

HEX HD CPSC 1/2-13 X 3

Part# 05900923

OEM Warranty Repair Part for Gravely

Not available

06500519

23

SERATED FLG NUT 1/2-13

Part# 06500519

OEM Warranty Repair Part for Gravely

Not available

05500733

24

BUSHING, SINTERED STEEL

Part# 05500733

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

02848200

25

PIVOT PIN (REEL)

Part# 02848200

Note: (REEL)

OEM Warranty Repair Part for Gravely

Not available

05901102

26

HEX HD CPSC 1/4-20 X 2-1/4

Part# 05901102

OEM Warranty Repair Part for Gravely

Not available
