895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) Hydraulic System Parts Diagram

Reel Mower Attachment for PM 320

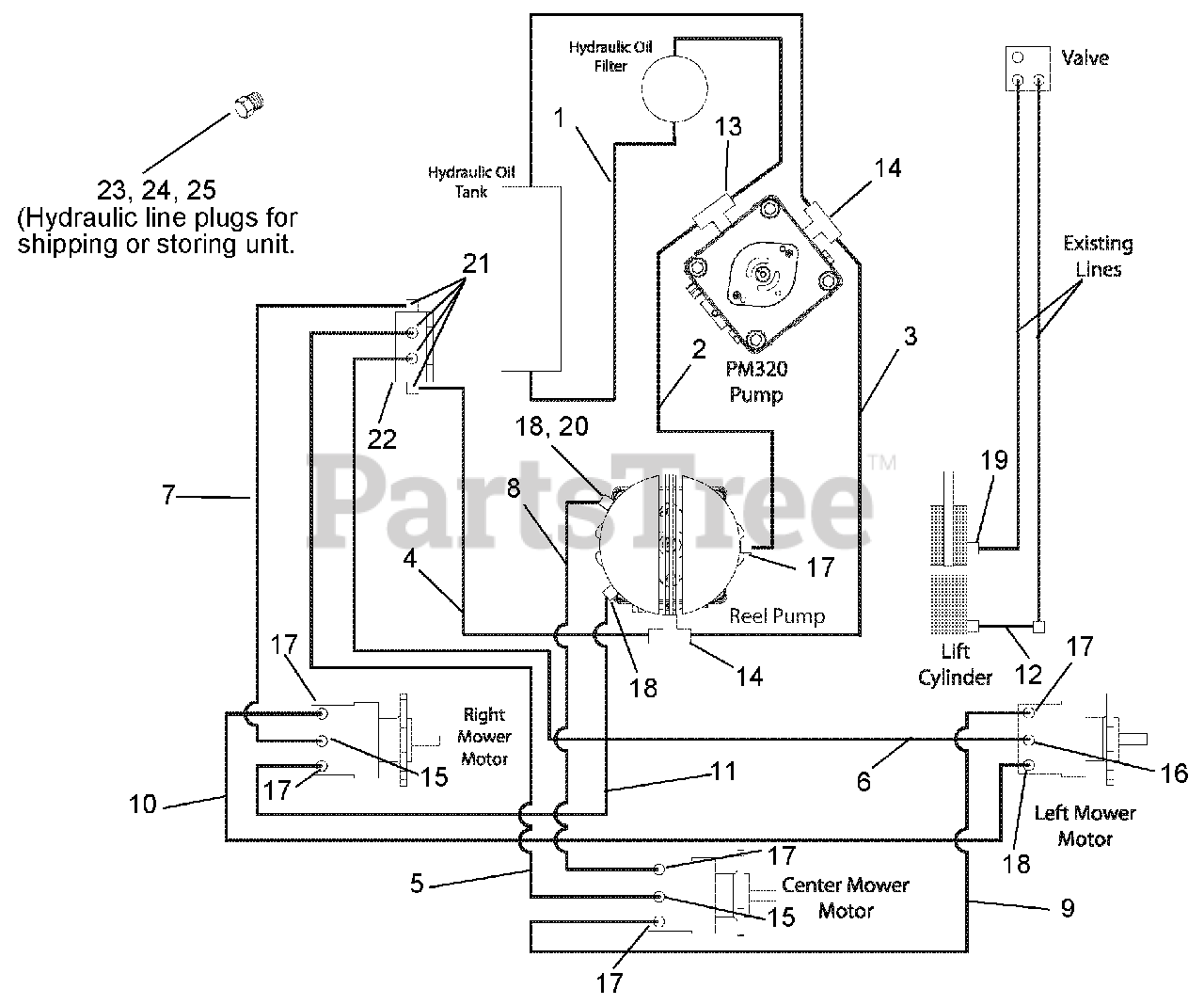

Hydraulic System Parts Diagram

  • Title

1

Gravely 03721900

HOSE, IN1 16"OL

$

$

Not available

2

Gravely 03724700

HOSE,PUMP SUCTION 18"OL

$

$

Not available

3

Gravely 03724600

HOSE CASE DRAIN 19"OL

$

$

Not available

4

Gravely 03724800

HOSE, CD2 7500083

$

$

Not available

5

Gravely 03724900

HOSE, CD3 7500084

$

$

Not available

6

Gravely 03725000

HOSE, CD4 7500085

Note: (270 deg.) W/Sleeve

$

$

Not available

7

Gravely 03725100

HOSE, CD5 7500086

$

$

Not available

8

Gravely 03725200

HOSE, P1 82"

$

$

Not available

9

Gravely 03725300

HOSE, P2 82.5"OL

$

$

Not available

10

Gravely 03725400

HOSE, P3 99"OL

$

$

Not available

11

Gravely 03725500

HOSE, P4 7500090

$

$

Not available

12

Gravely 03725600

HOSE, CYL1 7500092

$

$

Not available

13

Gravely 03725800

FITTING, 8S50L0-S

$

$

Not available

14

Gravely 03725900

FITTING, 6-6-8 S50L0

$

$

Not available

15

Gravely 03726000

FITTING, 4V50L0-S 7500096

$

$

Not available

16

Gravely 03726100

FITTING, 4C50L0-S 7500097

$

$

Not available

17

Gravely 03726200

FITTING, 8C50L0-S 7500100

$

$

Not available

18

Gravely 03726400

FITTING, 8F50L0-S 7500101

$

$

Not available

19

Gravely 07001607

FITTING #4ORF #6ORB 90 DEG.

$

$

Not available

20

Gravely 03726900

FITTING, 8C6LO-S

$

$

Not available

21

Gravely 03726500

FITTING, 4-4CLO-S 7500103

$

$

Not available

22

Gravely 03723100

BLOCK, MANIFOLD

$

$

Not available

23

Gravely 07001608

#8ORF MALE (I-13/16 PLUG)

Note: (I-13/16 PLUG)

$

$

Not available

24

Gravely 07001609

#6ORF MALE (I-11/16 PLUG)

Note: (I-11/16 PLUG)

$

$

Not available

25

Gravely 07001610

#4ORF FEMALE (Y-1/4)

Note: (Y-1/4 CAP)

$

$

Not available
