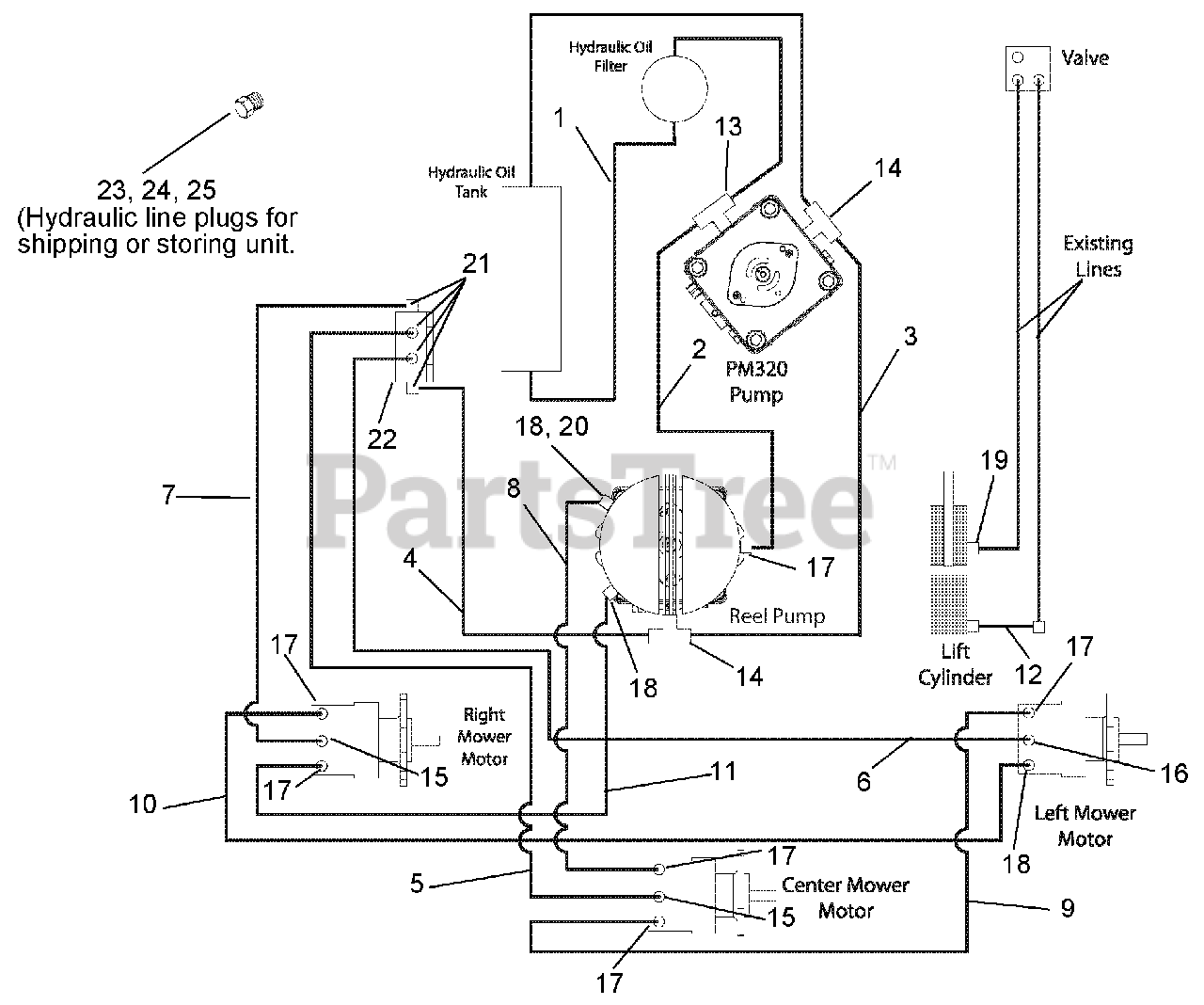

895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) Hydraulic System Parts Diagram

Reel Mower Attachment for PM 320

Hydraulic System Parts Diagram

  • Title

1

Gravely 03721900

HOSE, 801*JC*J9*8-8-8-18.0"

$

$

Not available

2

Gravely 03724700

HOSE, 801*JC*J9*8-8-8-20.0"

$

$

Not available

3

Gravely 03724600

HOSE, 801*JC*JC*6-6-6-21.0"

$

$

Not available

4

Gravely 03724800

HOSE, AX*JS*J9*6-4-4-15.0" W/Sleeve

$

$

Not available

5

Gravely 03724900

HOSE, AX*JC*JC*4-4-4-75.0" W/Sleeve

$

$

Not available

6

Gravely 03725000

HOSE, AX*J7*J9*4-4-4-58.0" (270 deg.) W/Sleeve

Note: (270 deg.) W/Sleeve

$

$

Not available

7

Gravely 03725100

HOSE, AX*JC*J9*4-4-4-51.0" W/Sleeve

$

$

Not available

8

Gravely 03725200

HOSE, AX*JC*J9*8-8-8-44.5" W/Sleeve

$

$

Not available

9

Gravely 03725300

HOSE, AX*JC*JC*8-8-8-82.5" W/Sleeve

$

$

Not available

10

Gravely 03725400

HOSE, AX*JC*J7*8-8-8-99.0" W/Sleeve

$

$

Not available

11

Gravely 03725500

HOSE, AX*JC*J9*8-8-8-50.0" W/Sleeve

$

$

Not available

12

Gravely 03725600

HOSE, AX*JO*JC*4-4-4-7.0" W/Sleeve

$

$

Not available

13

Gravely 03725800

FITTING, #8 ORF #8ORF #8ORB TEE

$

$

Not available

14

Gravely 03725900

FITTING, #6 ORF-6ORF-8ORB TEE

$

$

Not available

15

Gravely 03726000

FITTING, #4 ORF #4ORB 45°

$

$

Not available

16

Gravely 03726100

FITTING, #4 ORF #4ORB 90°

$

$

Not available

17

Gravely 03726200

FITTING, #8 ORF #8ORB 90

$

$

Not available

18

Gravely 03726400

FITTING, #8 ORF #8ORB STRAIGHT

$

$

Not available

19

Gravely 07001607

FITTING, #4 ORF #6ORB 90° 2

$

$

Not available

20

Gravely 03726900

ADAPTER, #8 ORF #8ORF FEMALE 90°

$

$

Not available

21

Gravely 03726500

FITTING, #4 ORF #4 PIPE 90

$

$

Not available

22

Gravely 03723100

MANIFOLD BLOCK - FOUR PORT 1/4" NPT

$

$

Not available

23

Gravely 07001608

#8 ORF MALE (I-13/16 PLUG)

Note: (I-13/16 PLUG)

$

$

Not available

24

Gravely 07001609

#6 ORF MALE (I-11/16 PLUG)

Note: (I-11/16 PLUG)

$

$

Not available

25

Gravely 07001610

#4 ORF FEMALE (Y-1/4 CAP)

Note: (Y-1/4 CAP)

$

$

Not available
