895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) Lift Assembly Parts Diagram

Reel Mower Attachment for PM 320

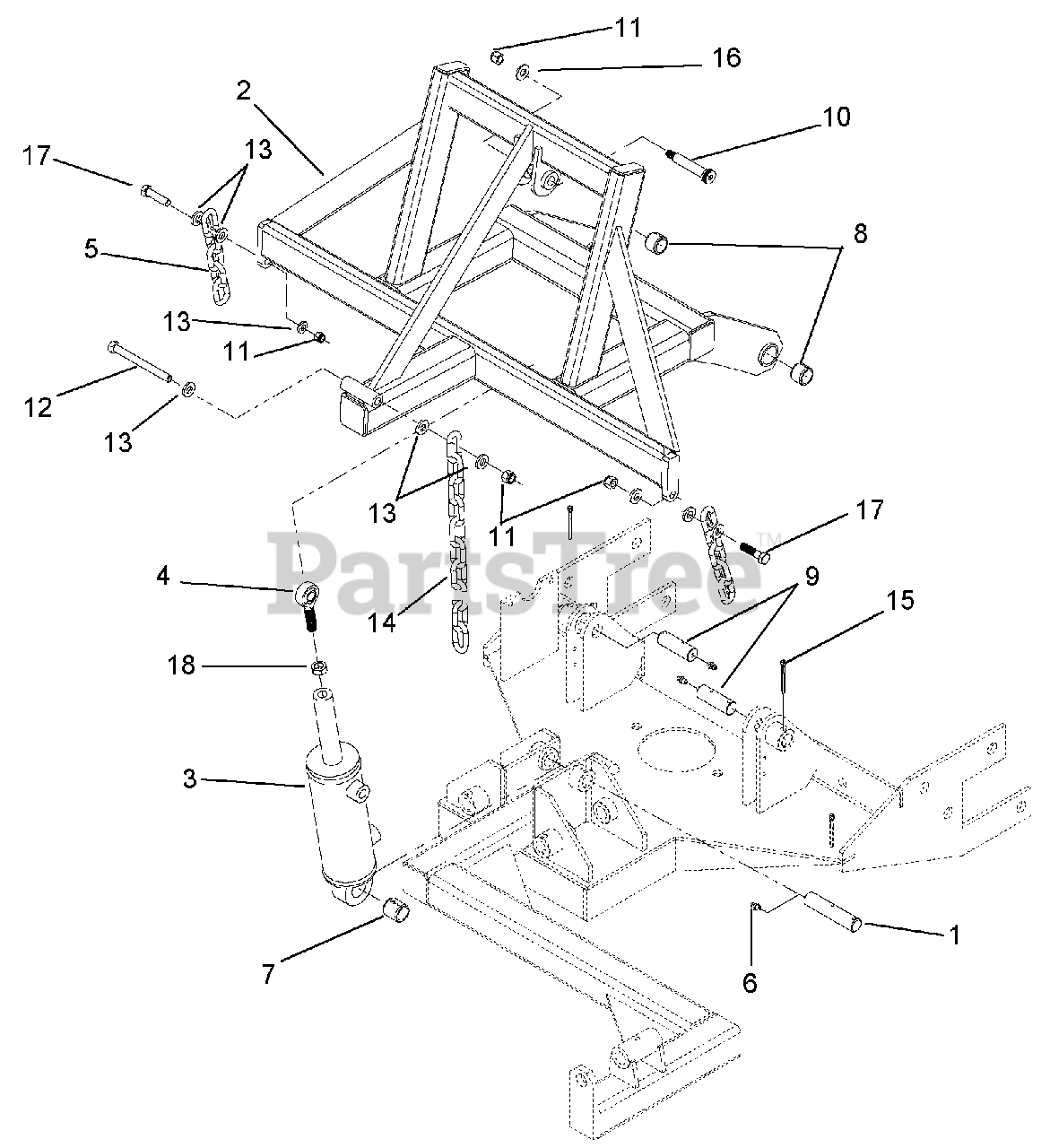

Lift Assembly Parts Diagram

  • Title

1

Gravely 03699600

PIVOT PIN, CYLINDER

Note: (CYLINDER)

$

$

Not available

2

Gravely 03396351

REEL LIFT WELDMENT

$

$

Not available

3

Gravely 04909800

CYLINDER, PLATFORM LIFT

$647.99

$

Usually ships in 4-12 days

0

4

Gravely 08959600

ROD END, 1/2 RH

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 03720100

CHAIN ASSY (5 LINK)

$

$

Not available

6

Gravely 07000916

GREASE FITTING 1/4-28 UN 449

$

$

Not available

7

Gravely 03723200

BUSHING

$

$

Not available

8

Gravely 05500738

SPRING BUSHING 1 X 3/4 7000003

$

$

Not available

9

Gravely 02850900

CENTER ARM PIN 7500032

$

$

Not available

10

Gravely 03724200

BOLT, SHOULDER

$

$

Not available

11

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

12

Gravely 05900929

HEX HD CPSC 3/8-16 X 3-1/2

$

$

Not available

13

Gravely 06300025

WASHER 3/8 HARDENED .12 02413

$

$

Not available

14

Gravely 03720000

CHAIN ASSY (11 LINK)

$

$

Not available

15

Gravely 06700120

COTTER PIN 3/16 X 1 1 21020614

$

$

Not available

16

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

17

Gravely 05900824

HEX HD CPSC 3/8-16 X 1-1/2

$

$

Not available

18

Gravely 02223900

JAM NUT 1/2-20 CP NF 44608

$

$

Not available
