895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above)

Reel Mower Attachment for PM 320

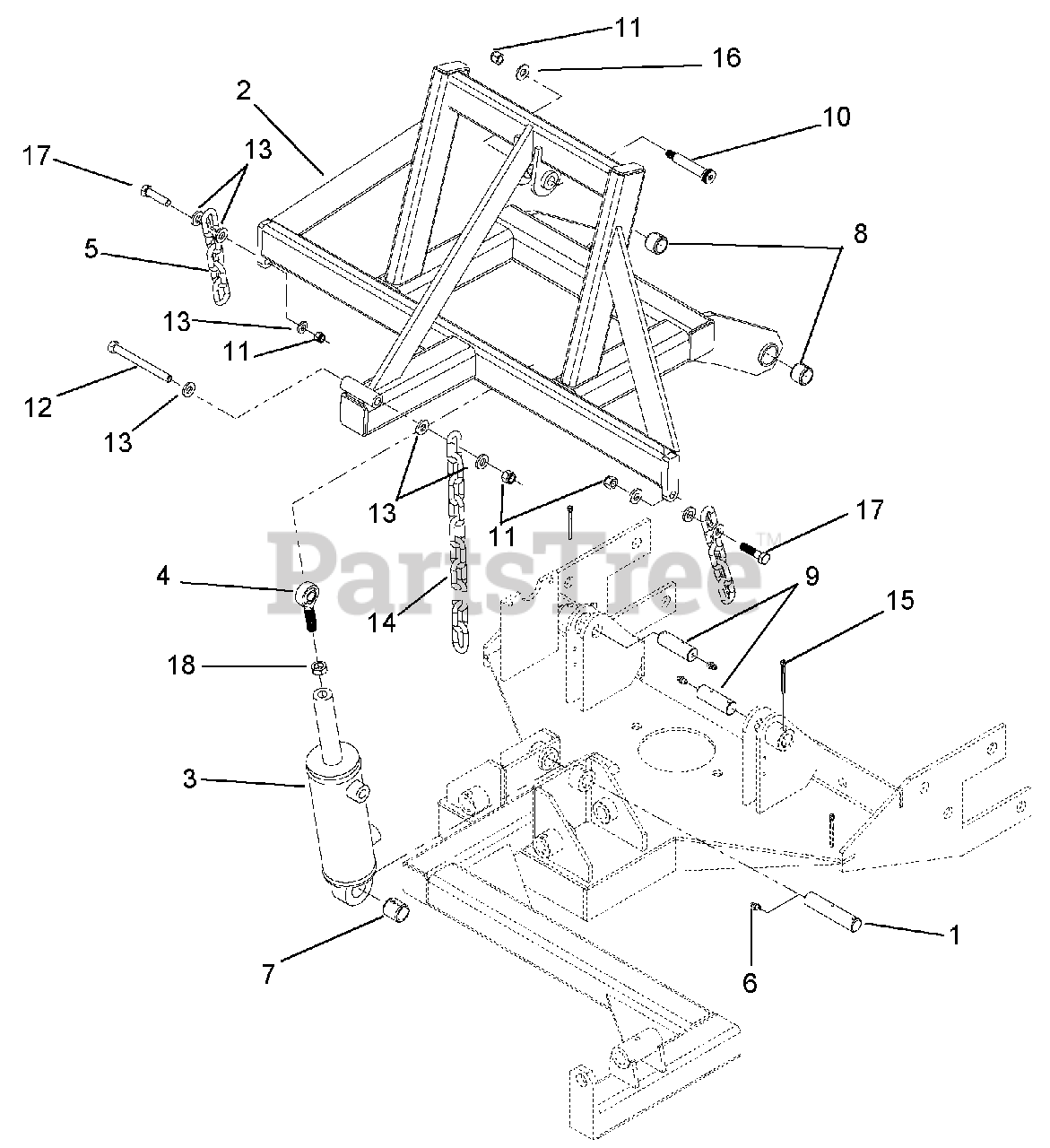

895022 - Gravely Reel Mower Attachment for PM 320 (SN: 000101 & Above) > Parts Diagrams (6) > Lift Assembly

  • Title
03699600

1

PIVOT PIN (CYLINDER)

Part# 03699600

Note: (CYLINDER)

OEM Warranty Repair Part for Gravely

Not available

03396351

2

REEL LIFT WELDMENT

Part# 03396351

OEM Warranty Repair Part for Gravely

Not available

04909800

3

HYDRAULIC CYLINDER 2-1/2 BORE X 4 STROKE

Part# 04909800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $594.08

08959600

4

ROD END

Part# 08959600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

03720100

5

CHAIN - 5 LINK

Part# 03720100

OEM Warranty Repair Part for Gravely

Not available

07000916

6

GREASE FITTING, 1/4-28

Part# 07000916

OEM Warranty Repair Part for Gravely

Not available

03723200

7

BUSHING, 1 X 3/4 X 1

Part# 03723200

OEM Warranty Repair Part for Gravely

Not available

05500738

8

BUSHING, 1 X 3/4 X 3/4

Part# 05500738

OEM Warranty Repair Part for Gravely

Not available

02850900

9

PIN, CENTER ARM

Part# 02850900

OEM Warranty Repair Part for Gravely

Not available

03724200

10

HEX SOC HD SHOULDER BOLT, 1/2 X 2-1/4 X 3/8-16

Part# 03724200

OEM Warranty Repair Part for Gravely

Not available

06500517

11

HEX NUT, 3/8-16 NYLOCK

Part# 06500517

OEM Warranty Repair Part for Gravely

Not available

05900929

12

HHCS, 3/8-16 X 3-1/2

Part# 05900929

OEM Warranty Repair Part for Gravely

Not available

06300025

13

FLATWASHER, 3/8 HARDENED

Part# 06300025

OEM Warranty Repair Part for Gravely

Not available

03720000

14

CHAIN - 11 LINK

Part# 03720000

OEM Warranty Repair Part for Gravely

Not available

06700120

15

COTTER PIN, 3/16 X 1-1/2

Part# 06700120

OEM Warranty Repair Part for Gravely

Not available

06400417

16

FLATWASHER, 3/8

Part# 06400417

OEM Warranty Repair Part for Gravely

Not available

05900824

17

HEX CAP SCREW 3/8-16 X 1-1/5

Part# 05900824

OEM Warranty Repair Part for Gravely

Not available

02223900

18

HEX JAM NUT 1/2-20

Part# 02223900

OEM Warranty Repair Part for Gravely

Not available
