895030 - Gravely Estate Master Tow-Behind 100" Trailing Lawn Sweeper, Mesh (SN: 000101 & Above) Sweeper Unit Assembly Parts Diagram

Estate Master Tow-Behind 100" Trailing Lawn Sweeper, Mesh

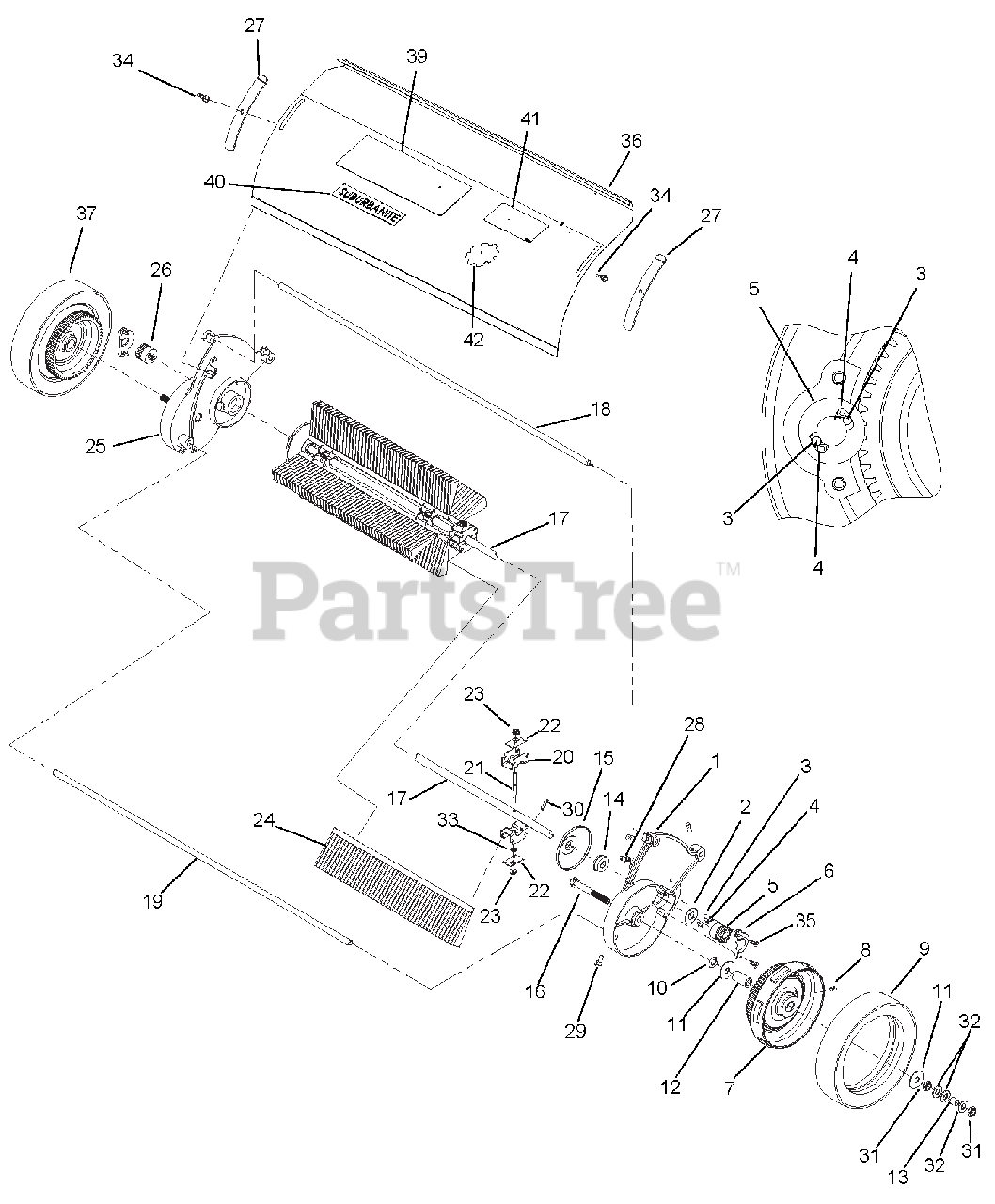

Sweeper Unit Assembly Parts Diagram

  • Title

1

Gravely P76-339-LF

SIDE PLATE LH

$

$

Not available

2

Gravely P50-33-A

WSR-FLT .656 X 1.50 X .06

$3.99

$

Usually ships in 4-12 days

0

3

Gravely P74-80-A

DOWEL PIN - .1875" OD X .4375"

$6.49

$

Usually ships in 4-12 days

0

4

Gravely P76-37-A

PAWL SPRING .188X.049 WX.438

$13.99

$

Usually ships in 4-12 days

0

5

Gravely P74-79-IB

Pinion, Left

$

$

Not available

6

Gravely P80-01-B

CASTING-COVER PINION

$

$

Not available

7

Gravely P58-14MCH

SWP- WHEEL DRILLED

$111.99

$

Usually ships in 4-12 days

0

8

Gravely 07000934

GREASE FITTING 3/16 50019776

$3.99

$

Usually ships in 4-12 days

0

9

Gravely P75-88-C

TIRE ONLY

$

$

Not available

10

Gravely P946-816-16

WSR-FIBER

$3.99

$

Usually ships in 4-12 days

0

11

Gravely P58-05-A

WSR-FLT .516 X 1.625 X .075
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

12

Gravely P58-06-A

SLEEVE

$46.99

$

Usually ships in 4-12 days

0

13

Gravely P68-44-A

SPACER-AXLE

$11.99

$

Usually ships in 4-12 days

0

14

Gravely P68-60-A

BEARING-FLG RADIAL (ASF 107-1E

$

$

Not available

15

Gravely P74-166-B

SWP-DUST COVER

$

$

Not available

16

Gravely P53-35-A

HHCS 1/2-20 X 4 FULL THREAD

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 04229100

REEL SHAFT-PLATED

$

$

Not available

18

Gravely P68-34-A

TIEROD TOP**18R0500 1018 1/2RD

$

$

Not available

19

Gravely P68-33-A

TIEROD FRT** 18R0500 1018 1/2

$

$

Not available

20

Gravely P74-13-C

SWP-BRKT

$21.99

$

Usually ships in 4-12 days

0

21

Gravely P74-16-PLT

Plated Stud, Zinc

$

$

Not available

22

Gravely P69-04-A

SWP-CLAMP BRUSH STRIP

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

24

Gravely P-1200-17-B

SWP-SWEEPER-BRUSH

$

$

Not available

25

Gravely P76-338-RF

SIDE PLATE RH

$

$

Not available

26

Gravely P74-78-RB

PINION RIGHT

$7.49

$

Usually ships in 4-12 days

0

27

Gravely P49-11-A

SWP-HOOD CLAMP TE SU

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06006125

SWP-SQUARE HEAD SET SCREW (10S
(Superseded to 06000220)

$2.99

$

In Stock, only 1 left!

0

30

Gravely P67-521-A

PIN-ROLL 3/16 x 1.0

$

$

Not available

31

Gravely 06544000

NUT-LK-JAM-NYL .50-20 GR2 YWZC
(Superseded to 06500818)

$6.49

$

In Stock, only 2 left!

0

32

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

33

Gravely P75-89-A

NUT-SPEED 1/4 (03-30072)

$5.49

$

In Stock, only 2 left!

0

34

Gravely 06503800

NUT-WING .312-18 YWZC

$2.99

$

Usually ships in 4-12 days

0

35

Gravely 06006130

SCR-FLHD-.25-20X.63 SLFTAP

$1.99

$

Usually ships in 4-12 days

0

36

Gravely 04292100

SWP-HOOD WITH DECALS, SU, GR

$

$

Not available

37

Gravely PSA-609-C

SWP-TIRE ASY INCL 12 & 13

Note: (includes items 7, 8 & 9)

$

$

Not available

38

Gravely PSA-1580-B

PINION KIT INCL.

Note: (includes items 3, 4, 5 & 26)

$

$

Not available

39

Gravely 05240000

DECAL, 15" GRAVELY LOGO

$

$

Not available

40

Gravely 04199900

DECAL, SUBURBANITE 1.25X6.75

$

$

Not available

41

Gravely 04147800

DECAL, DANGER READ MANUAL

$

$

Not available

42

Gravely 08000507

DECAL, GRAVELY HERITAGE-SMALL

$25.99

$

Usually ships in 4-12 days

0
