895033 - Gravely Trailette Sweeper (SN: 000101 & Above) Basket Assembly Parts Diagram

Trailette Sweeper

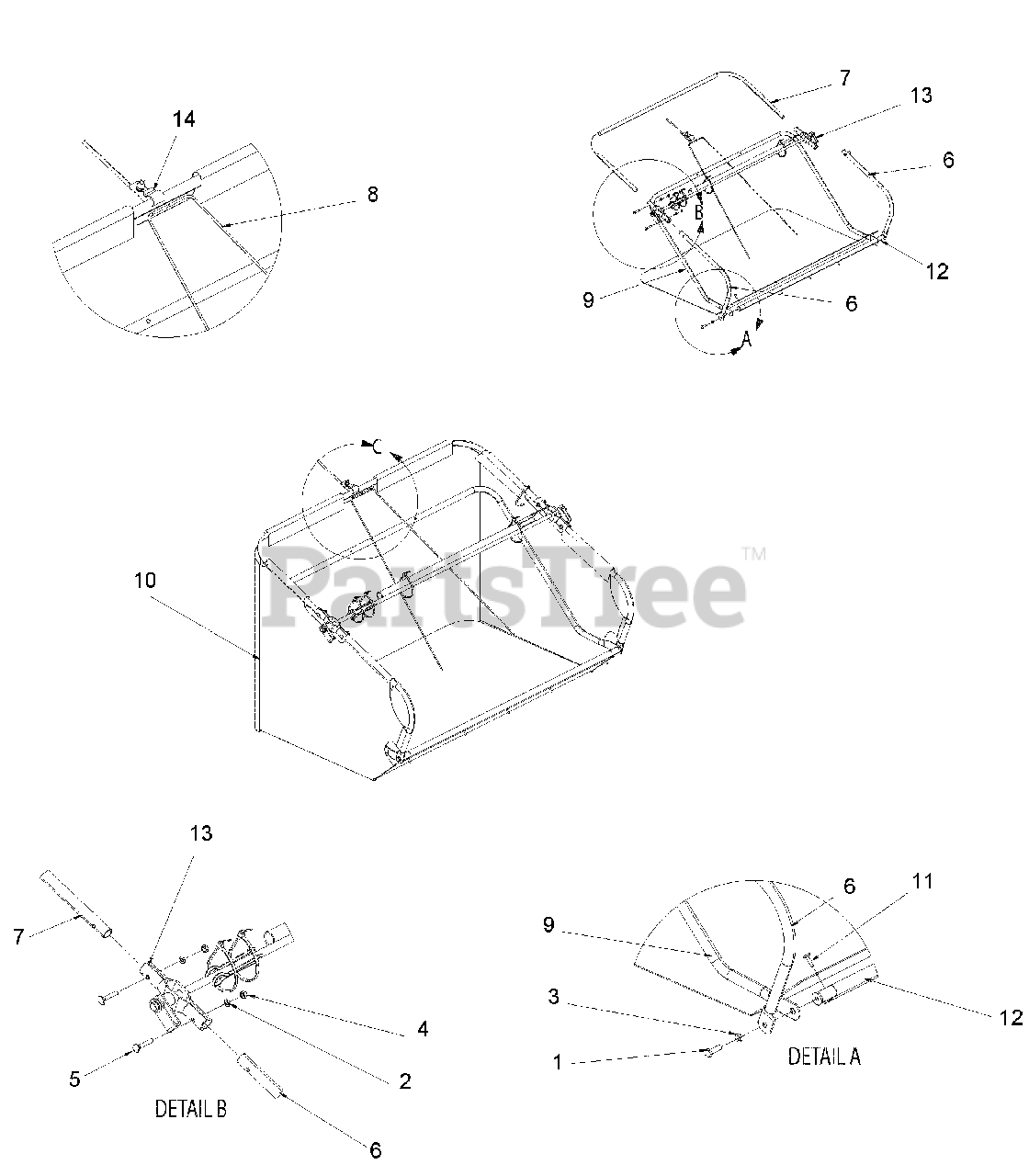

Basket Assembly Parts Diagram

  • Title

1

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

5

Gravely P69-416-24

BLT-CONT HEAD 1/4-20 X 1.50

$

$

Not available

6

Gravely P76-285-B

SWP-FRAME BASKET FRONT TE

$

$

Not available

7

Gravely P76-326-B

SWP-FRAME BASKET REAR

$

$

Not available

8

Gravely P83-33-B

SWP-SPRING-BASKET

$

$

Not available

9

Gravely P83-82-C

SWP-FRAME BASKET LOWER

$

$

Not available

10

Gravely 04288400

WIND APRON

$

$

Not available

11

Gravely P92-28

BULB TITE RIVET (1PLZ7)

$

$

Not available

12

Gravely PSA-1427-B

SWP-BOTTOM BASKET CLAMP ASY

$

$

Not available

13

Gravely PSA-552-B

SWP-PIVOT ROD ASY

$

$

Not available

14

Gravely PSA-969-A

SWP-ROPE AND CLIP ASY

$34.99

$

Usually ships in 4-12 days

0

-

Gravely 04295500

SWP-WIND APRON ASSY.-TRAILETTE

Note: (not shown)

$

$

Not available
