895033 - Gravely Trailette Sweeper (SN: 000101 & Above) Frame Assembly Parts Diagram

Trailette Sweeper

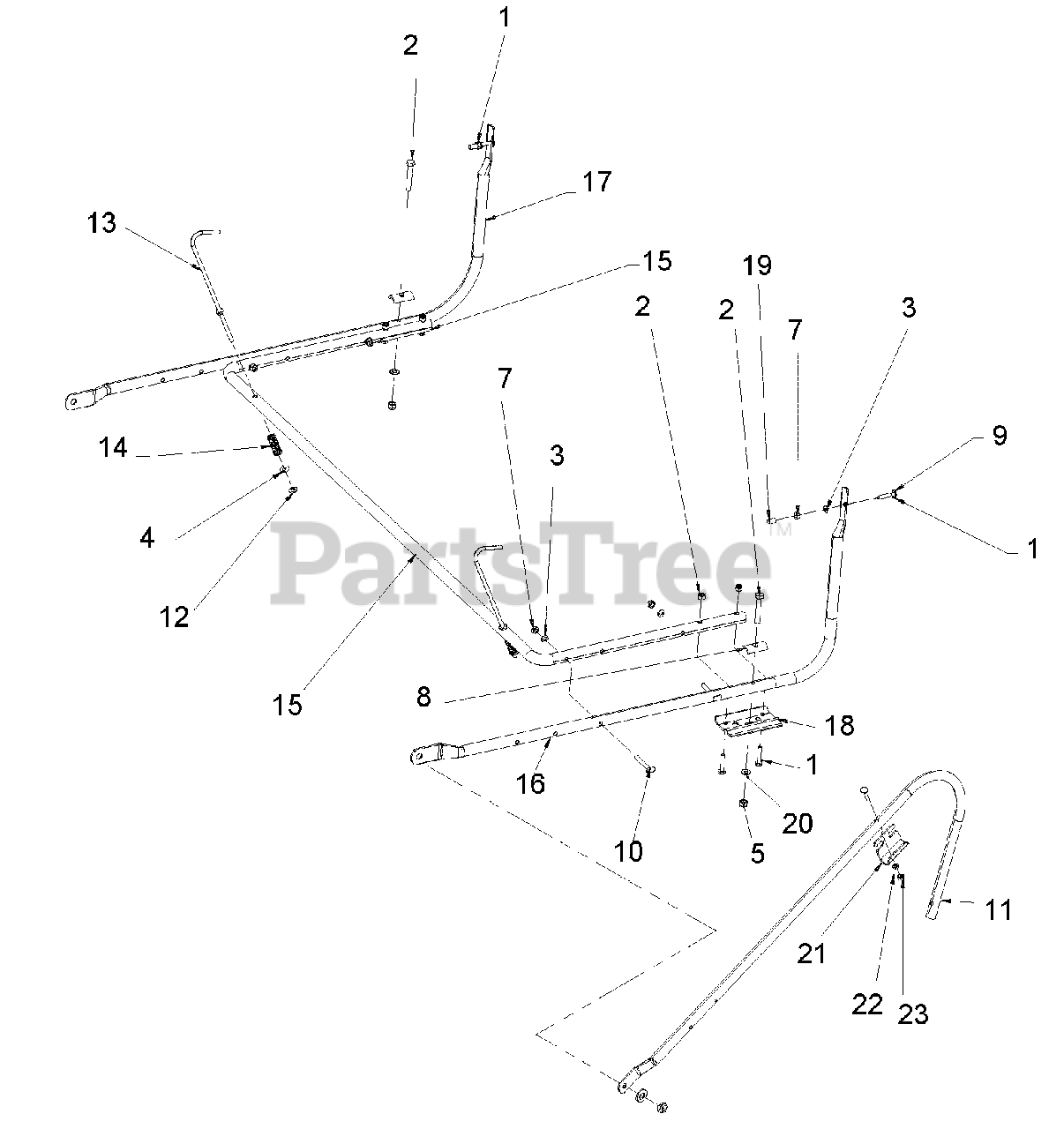

Frame Assembly Parts Diagram

  • Title

1

Gravely 05947400

Bolt .25 -20 x 1.25 Hex 5
(Superseded to 05901738)

$2.49

$

In Stock, Qty 5

0

2

Gravely 5957200

Bolt .31-18 x 2.00 Hex 5

$

$

Not available

3

Gravely 06308400

Washer .250 Lock
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

4

Gravely 06437300

Washer, .250 x .625 x .065 Flat
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 06530200

Nut 5/16-19 Nyloc
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06531000

Nut 1/4-20 Nyloc
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

7

Gravely 06533200

Nut, 1/4-20 Hex 5
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

8

Gravely P59-77-A

Clamp

$40.99

$

Usually ships in 4-12 days

0

9

Gravely P69-416-20

Bolt, 1/4-20 x 1.25 Contour Head

$3.99

$

Usually ships in 4-12 days

0

10

Gravely P69-416-32

Bolt, 1/4-20 x 2.00 Contour Head

$6.99

$

Usually ships in 4-12 days

0

11

Gravely P76-283-LC

Frame, Upper Left Hand TE
(Superseded to 04439651)

$

$

Not available

Gravely P76-284-RC

Frame, Upper Right Hand TE
(Superseded to 04439851)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely P75-89-A

Nut, 1/4 Speed

$4.76

$

In Stock, only 2 left!

0

13

Gravely P76-255-A

Basket Stop

$39.19

$

Usually ships in 4-12 days

0

14

Gravely P76-271-A

Spring

$3.99

$

In Stock, only 2 left!

0

15

Gravely P76-272-B

Frame Support, 74-3/8"

$

$

Not available

16

Gravely P76-280-RC

Lower Support Frame, Right
(Superseded to 04440051)

$

$

Not available

17

Gravely P76-281-LC

Lower Support Frame, Left
(Superseded to 04439951)

$

$

Not available

18

Gravely P76-81-B

Plate Caster

$10.99

$

Usually ships in 4-12 days

0

19

Gravely P79-69-A

Tube Cap, 1/4

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06437200

Washer .313 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely P76-240-A

Bracket, Pivot

$11.99

$

In Stock, only 2 left!

0

22

Gravely 06308400

Washer, .250 Med. Spring Lock
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

23

Gravely 06533200

Nut, 1/4-20 Standard Hex 5
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0
