895033 - Gravely Trailette Sweeper (SN: 000101 & Above) Frame Assembly Parts Diagram

Trailette Sweeper

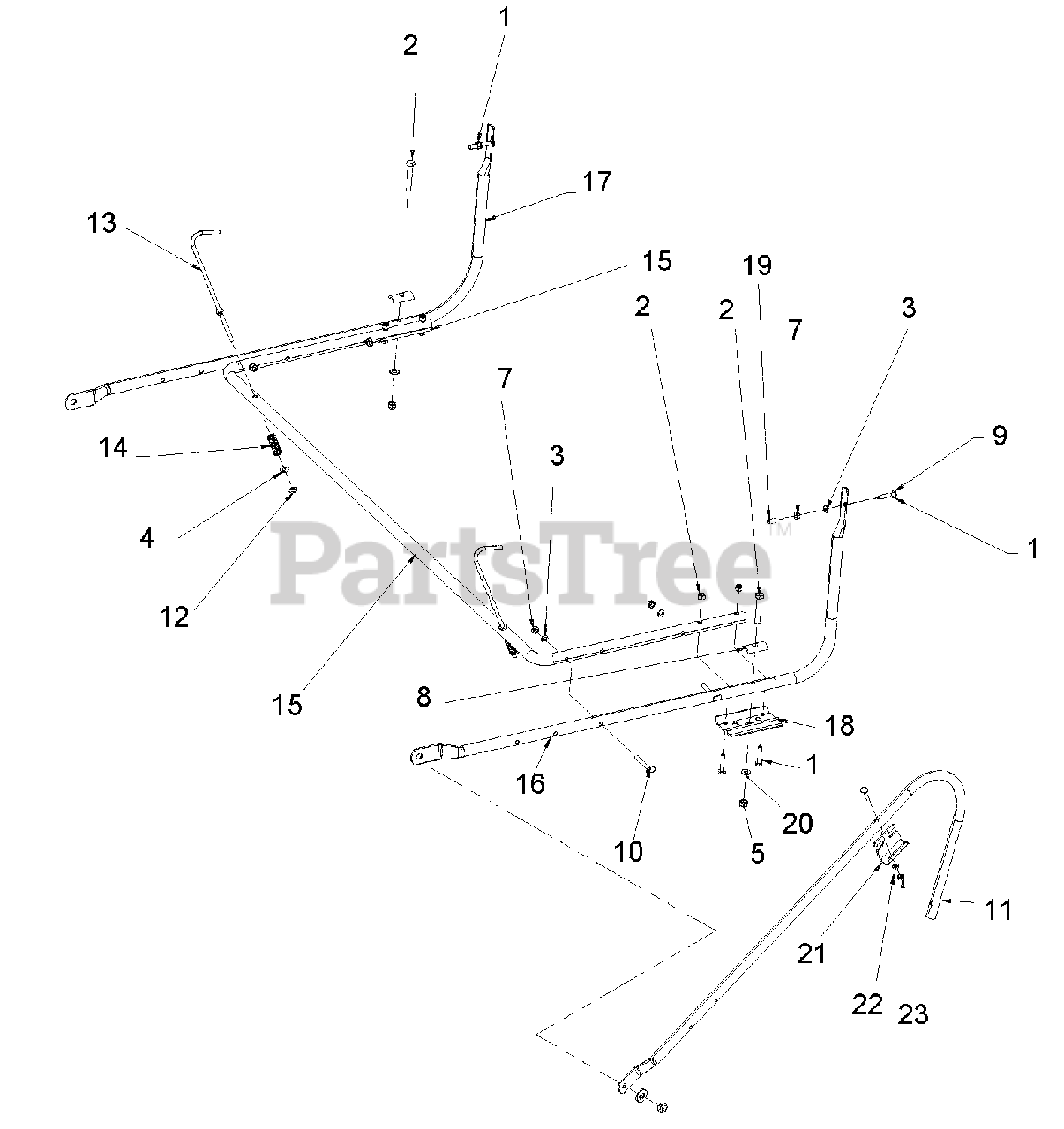

Frame Assembly Parts Diagram

  • Title

1

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

3

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

4

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

6

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

7

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

8

Gravely P59-77-A

CLAMP

$40.99

$

Usually ships in 4-12 days

0

9

Gravely P69-416-20

BLT-CONT HEAD 1/4-20 X 1.25

$3.99

$

Usually ships in 4-12 days

0

10

Gravely P69-416-32

BLT-CONT HEAD 1/4-20 X 2.00

$6.99

$

Usually ships in 4-12 days

0

11

Gravely P76-283-LC

SWP-FRAME UPPER TE
(Superseded to 04439651)

$

$

Not available

Gravely P76-284-RC

SWP-FRAME UPPER TE
(Superseded to 04439851)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely P75-89-A

NUT-SPEED 1/4 (03-30072)

$5.49

$

In Stock, only 2 left!

0

13

Gravely P76-255-A

SWP-BASKET STOP WLDT

$39.99

$

Usually ships in 4-12 days

0

14

Gravely P76-271-A

SPRING-COMP

$3.99

$

Usually ships in 4-12 days

0

15

Gravely P76-272-B

SWP-FRAME SUPPORT CUT 74 3/8"

$

$

Not available

16

Gravely P76-280-RC

SWP-LOWER SUPPORT FRAME
(Superseded to 04440051)

$

$

Not available

17

Gravely P76-281-LC

SWP-LOWER SUPPORT FRAME
(Superseded to 04439951)

$

$

Not available

18

Gravely P76-81-B

SWP-PLATE CASTER

$10.99

$

Usually ships in 4-12 days

0

19

Gravely P79-69-A

TUBE CAP 1/4

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely P76-240-A

SWP-BRKT-PIVOT

$11.99

$

Usually ships in 4-12 days

0

22

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

23

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0
